8 Ports | DMX512 Console | LED Synchronixation Slave Controller H803SA

Features:

1) 8 ports control maximum 8192 pixels, each port controls maximum 1024 pixels. It can also be set to four output ports, each of which can control 2048 points at most.
2) SD card supports FAT32, FAT16 format.
3) H 803SA can be connected to DMX console, you can switch file, adjust speed and brightness by DMX console.

• Eight output ports can control 8192 pixels at most. Each port can control up to 1024 points.
• The SD card supports FAT32 and FAT16 formats, with a maximum capacity of 64G bytes and above, and a maximum of 64 DAT files are allowed.
• Multiple controllers are powered on at the same time and can be synchronized by AC power.
• It can be connected to the DMX console, can change files, adjust the speed and brightness, and respond quickly.
• With buttons and an LCD screen, it is convenient to set various parameters.
• Support the encryption function to limit the number of power-on times, and DAT file encryption

Data sheet:

Wiring instructions:

IC SUPPORTED:

The LED controller support below ICs:
LPD6803, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, DMX512, HDMX, APA102, MY9221, P9813, LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, DZ2809, SM16716, TLS3001, TLS3002, TM1812, TM1809, TM1804, TM1803, TM1914, TM1926, TM1829, TM1906, INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, QED3110 and so on.

Note:

• The chip with three wires and four wires (that is, with a latch) can only output four ports, and each port has a maximum of 2048 points.
• Single-line and dual-line chips can only output eight or four ports. When eight ports are output, each port can control up to 1024 points, but P9813 and LPD6813 can only control 768 points; when four ports are output, each port can control up to 768 points. Control 2048 points, but P9813 and LPD6813 can only control 1536 points.
• The maximum number of points controlled by each port only represents the output capacity of the controller, and whether the actual signal can be reliably transmitted to the end will depend on the performance of the lamp, the EMI of the switching power supply, and the overall interference of the project site.

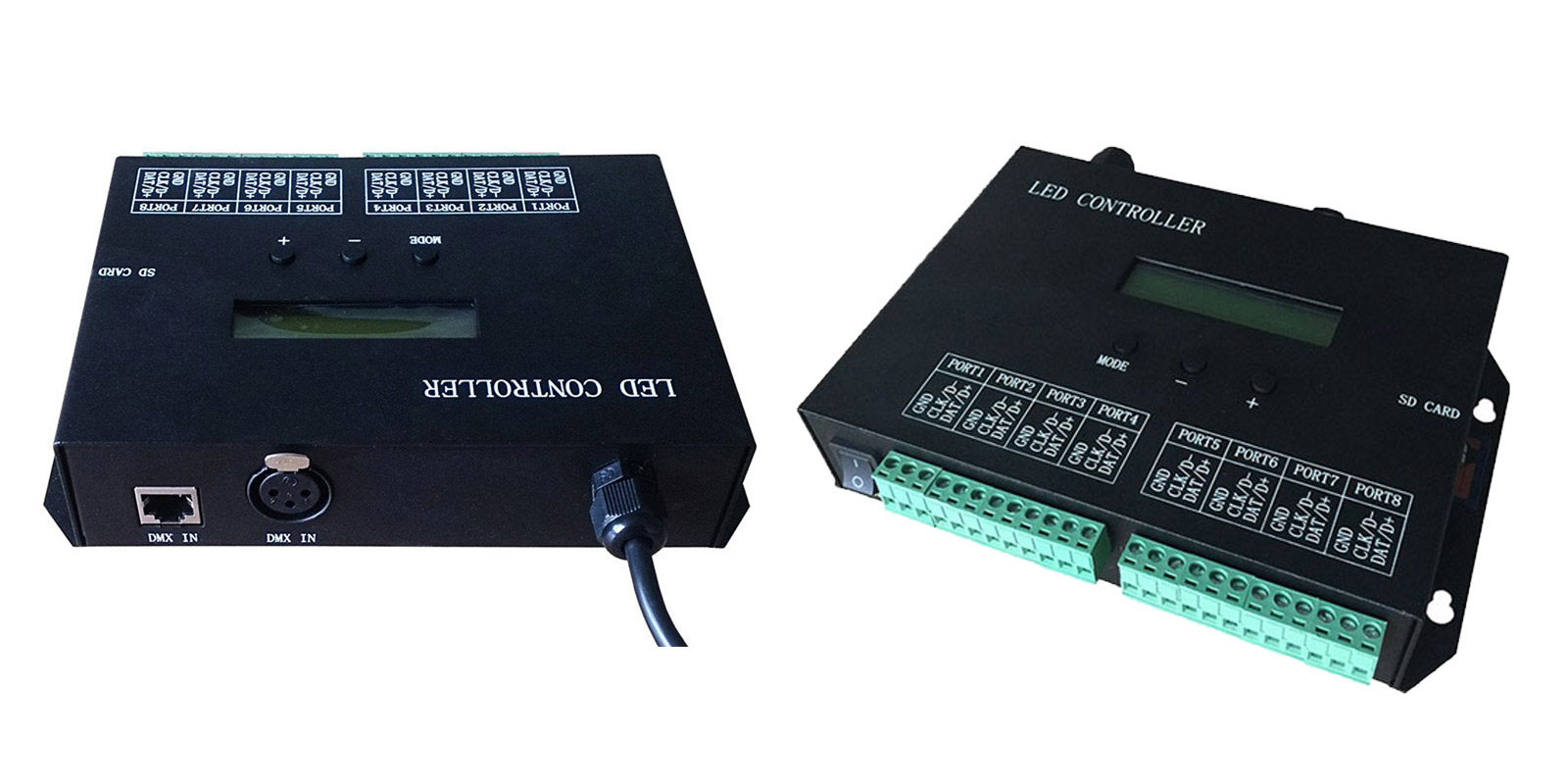

Photos:
