WS2813 LED board WS 2813 LED with heat sink PCB

WS2813 LED with heat sink PCB

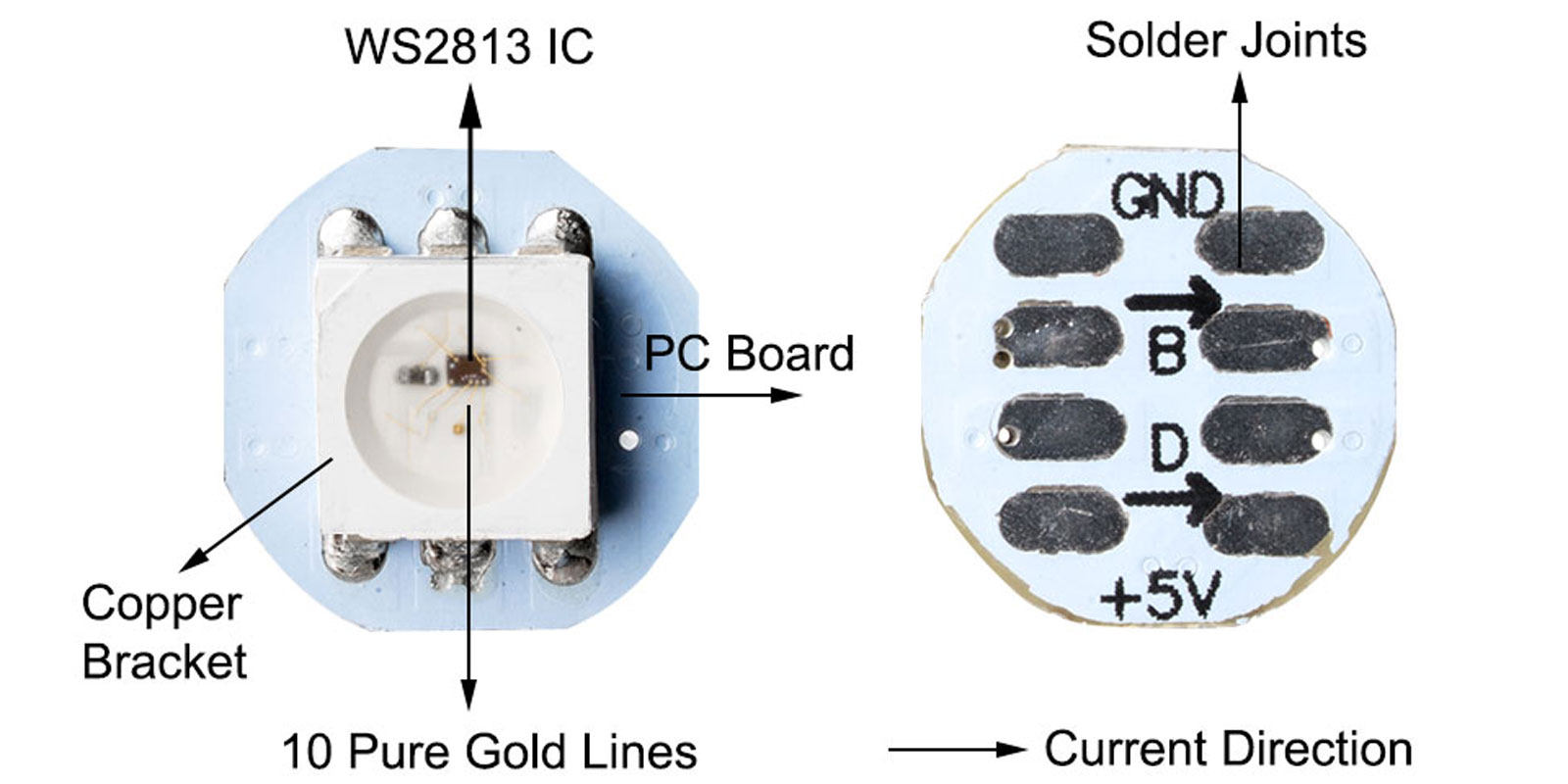

WS2813 LED board, with heat sink PCB

Introduction:

WS2813 Built-in IC full-color SMD light string board, using the most popular WS2813 at present, a small board and a pixel point, each small board contains a driver IC, including RGB leds; so powerful, not only simple to use, but also stable quality;

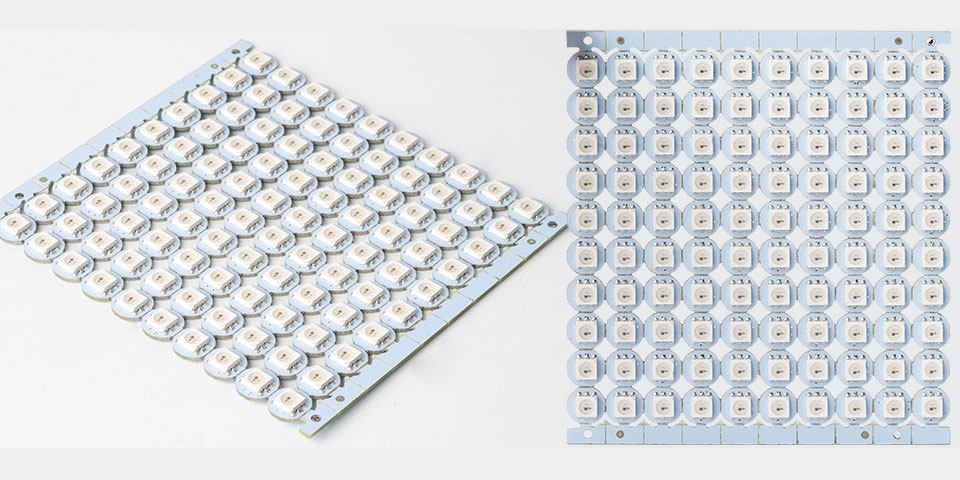

WS2813 LED board | 10mm width, 100pcs/lot

The pixel adopts automatic shaping and forwarding technology, so that the number of cascaded pixels is not limited by signal transmission, but the signal transmission speed is limited.

WS2813 Built-in IC full-color pixel unit | WS2813 LED board

WS2813 is an intelligent external control LED light source that integrates the control circuit and the light-emitting circuit. Its appearance is the same as a 5050 LED lamp bead, and each component is a pixel. The pixel includes an intelligent digital interface data latch signal shaping and amplifying driving circuit.

WS2812 LED with heat sink PCB

WS2812 LED with heat sink PCB

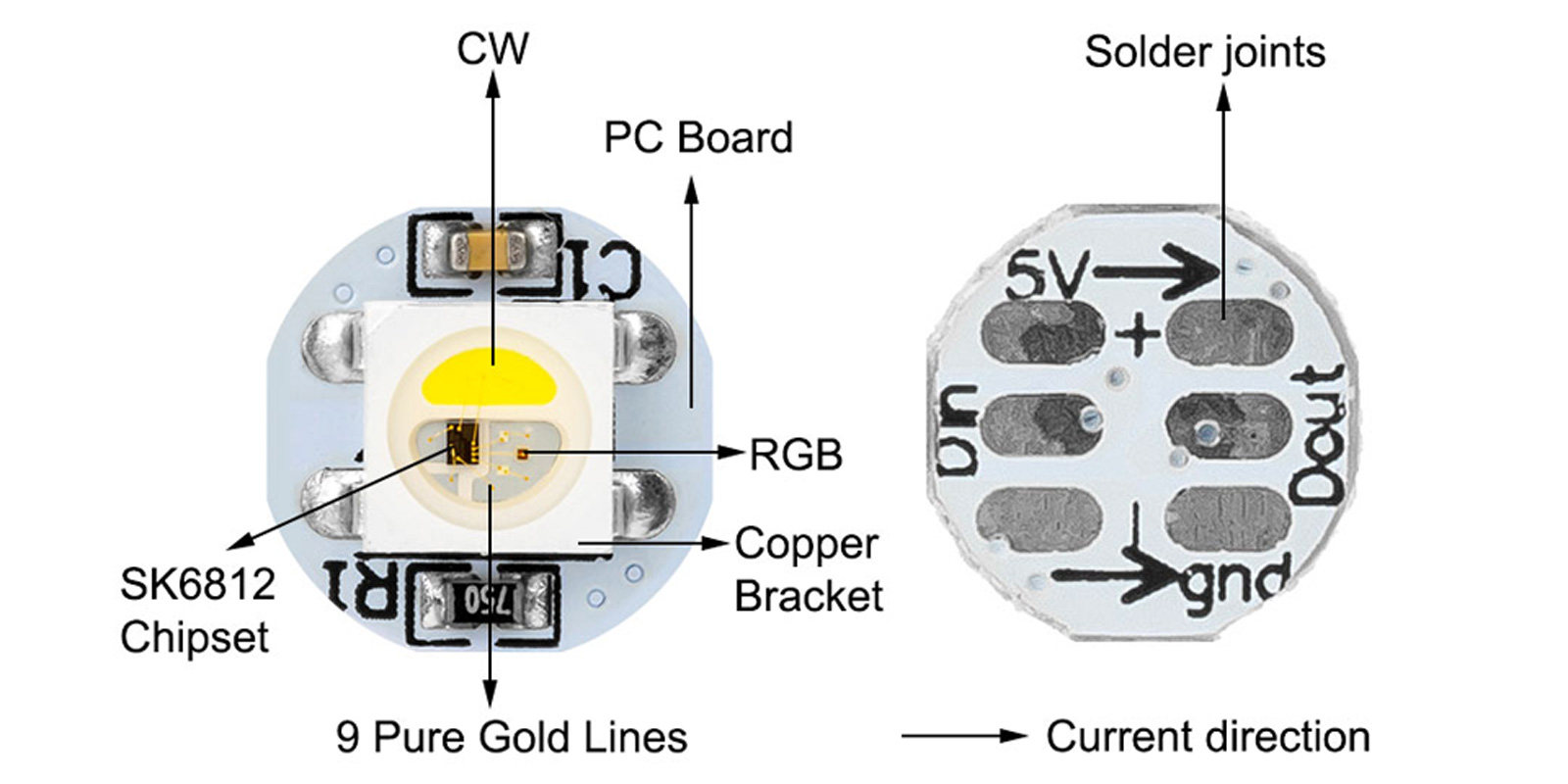

SK6812 5050 RGBW LED with heat sink PCB

SK 6812 5050 RGBW LED with heat sink PCB

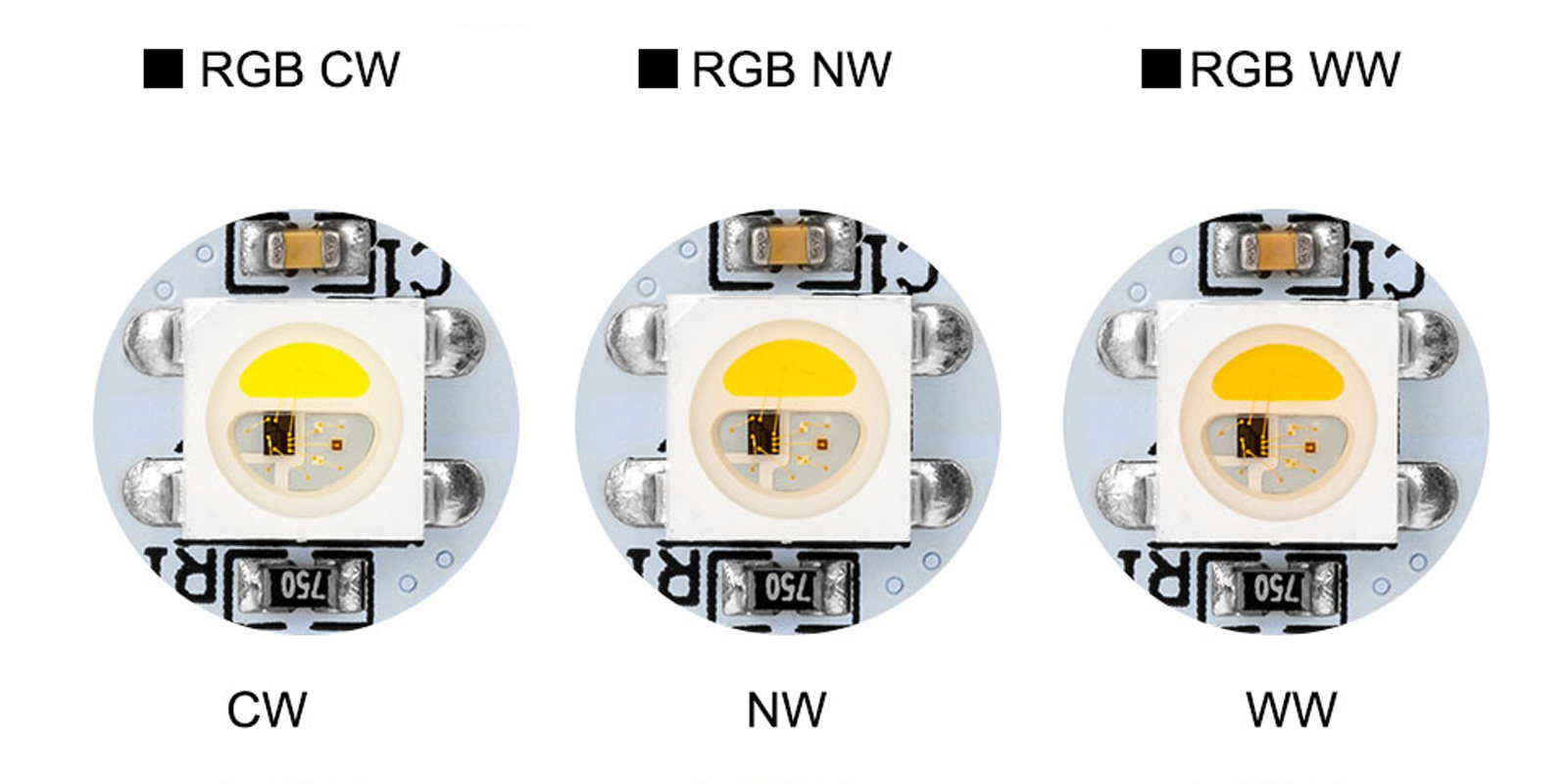

SK6812 5050 RGBCW & RGBNW & RGBWW

Application:

WS2812B vs WS2813 Addressable RGB LED Strips – How are they different?

The WS2812B is no doubt an immensely popular LED Strip and a beloved mainstay of every maker’s blinky projects, given its low driving voltage, high brightness and good color consistency among many advantages. An improved version of the WS2812, the WS2812B is an intelligent control LED light source, with the control circuit and RGB chip integrated directly into a 5050 RGB LED. As a digital LED strip, each addressable LED has an integrated driver that allows the brightness and color of each LED to be controlled individually, that is, an LED can be a different color to the one next to it. Thus, it enables us to create beautiful and complex lighting effects.

The latest model in this popular series of LED strips is WS2813. The WS2813 is an updated version of the WS2812B, similar to how the WS2812B is an improved version of the WS2812. Like the WS2812B, it also has a control circuit and RGB chip integrated into a 5050 RGB LED and each LED can be individually controlled. But as a relatively new model, how does the WS2813 stack up against its popular predecessor, the WS2812B? As an improved version, we would expect advantages over the WS2812B in certain areas. Without further ado, let’s dive into some differences between the two.

Order today:

Buy it now

This Post Has 2 Comments
  1. I would like to buy ws2813 pcb heat sink. What company sells your product? Which is better and cheaper and more stable ws2813 or sk6813
    Renald
