Simple LED controller for Pixel LEDs | 3 Buttons Control mode | SP002E
Description:
SP002E mini three-button controller adopts an advanced computer control chip. You can choose the mode you want according to the actual needs of customers, and it comes with 68 kinds of effects, which can achieve dazzling and smart modes such as strobe, breathing, fading in and out, strobe, and flash; it also has 8 levels of speed adjustment. The span is large. Can carry up to 2048 pixels; the power supply has an anti-reverse connection function.
The controller is light, small, and easy to carry, and also has a power-off memory function. There are three wiring methods: wiring, DC head, and USB interface. The USB interface can be powered directly by using a power bank, mobile power supply, computer interface, and plug. It has the advantages of low price, convenient wiring, and simple operation.
Features:
1. Works stably, is easy to use and the connection is simple;
2. Can be customized to support almost every kind of one-wire or two-wire LED-DRIVER-IC;
3. With 76 kinds of patterns, which are vivid and beautiful;
4. Can control up to 600pixels;
5. Preventing reverse connection of power supply.
Data sheet:
| Product: | Simple LED controller for Pixel LEDs | 3 Buttons Control mode | SP002E |
| Model No.: | SP002E |
| Controllable: | 600 Pixels |
| Input Volage: | DC5-24V |
| Consumption: | 0.1W |
| Net weight: | 0.01kg/pcs |
| Dimension: | 60 x 12 x 8(mm) |
| Supported driver chips: | Only Single SPI: WS2811, WS2812, WS2813, WS2814, WS2815, WS2818, SK6812, GS8206, … |

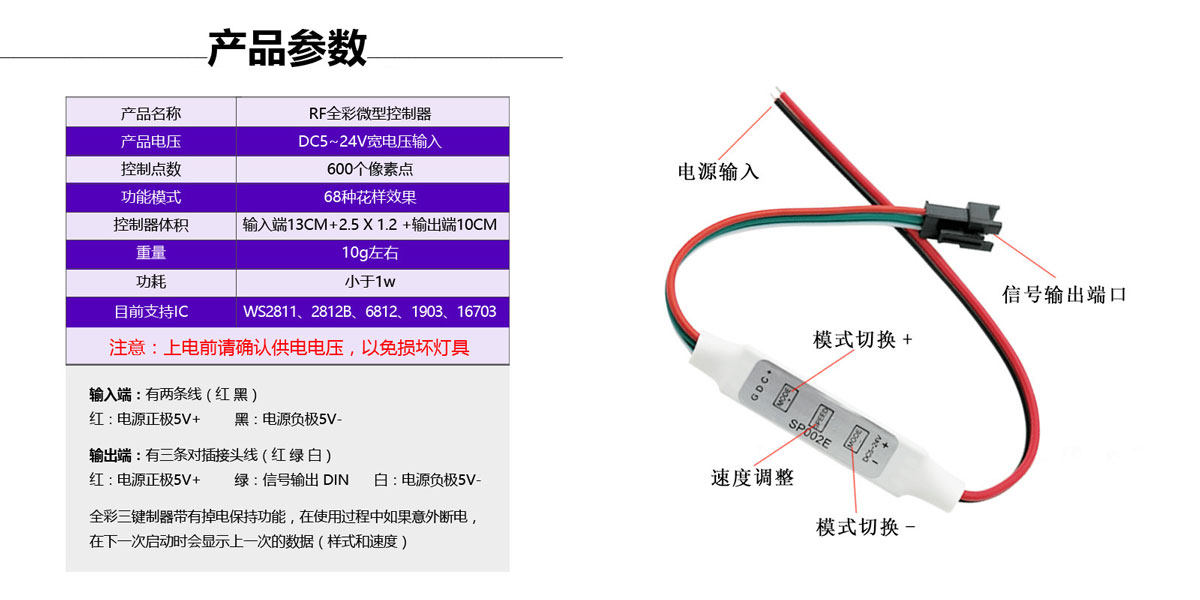

Photos show:
Connect to master controller, software is LED Build. Programs are stored in SD card.
Mini SP002E LED Controller for Digital LED Chips
