New 12V WS2815 Individual Addressable Digital LED Strips 30/60/144 led/m

Overview:

WS2815 Individual Addressable and breakpoint continue Flex led strips, 60led/m, Control IC built inside the LED, 60pixel/m, 12V DC, 12w/m, 10mm white or black PCB, 3M adhesive tape backed, 15cm JST connector;

Datasheet:

Features: 12V | Individual Addressable | Breakpoint Continue | IC Buit-in |

1) Addressable DC12V WS2815 LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Addressable, each IC built inside an SMD5050-RGB LED;
4) WS2815 has 4 Wires input and output: SPI Data x2, GND and Power+;
6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable;

Application:

> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting

Remark:

1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press the LED;
4) Don’t make positive and negative reversed;
5) Don’t install when the product is working;
6) A Professional Person must make installation, repair, and maintenance;
7) Before using them, ensure the power supply voltage meets the requirements and wire connection correctly.

Order Info: (IP20/IP65/IP67/IP68)

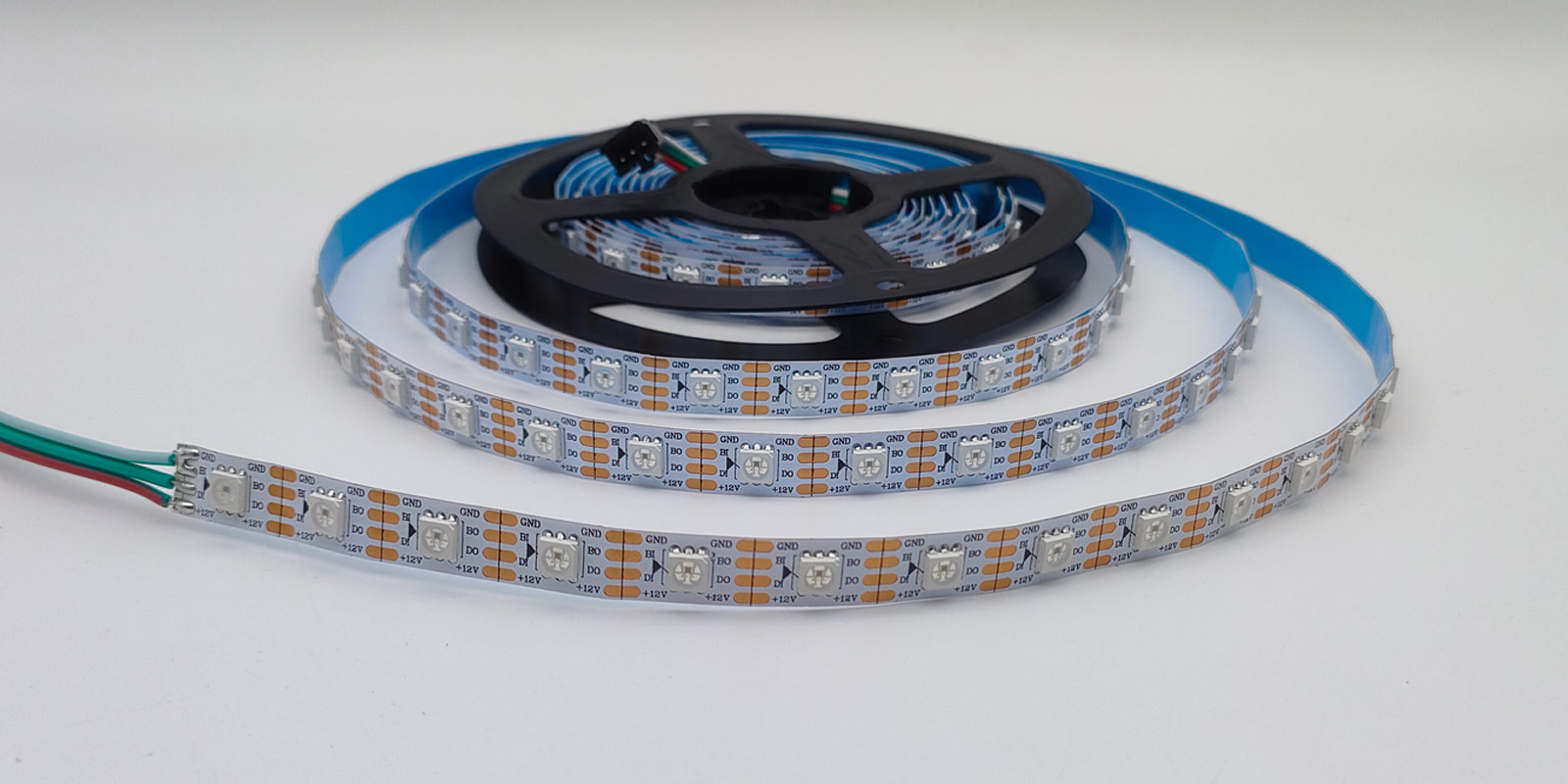

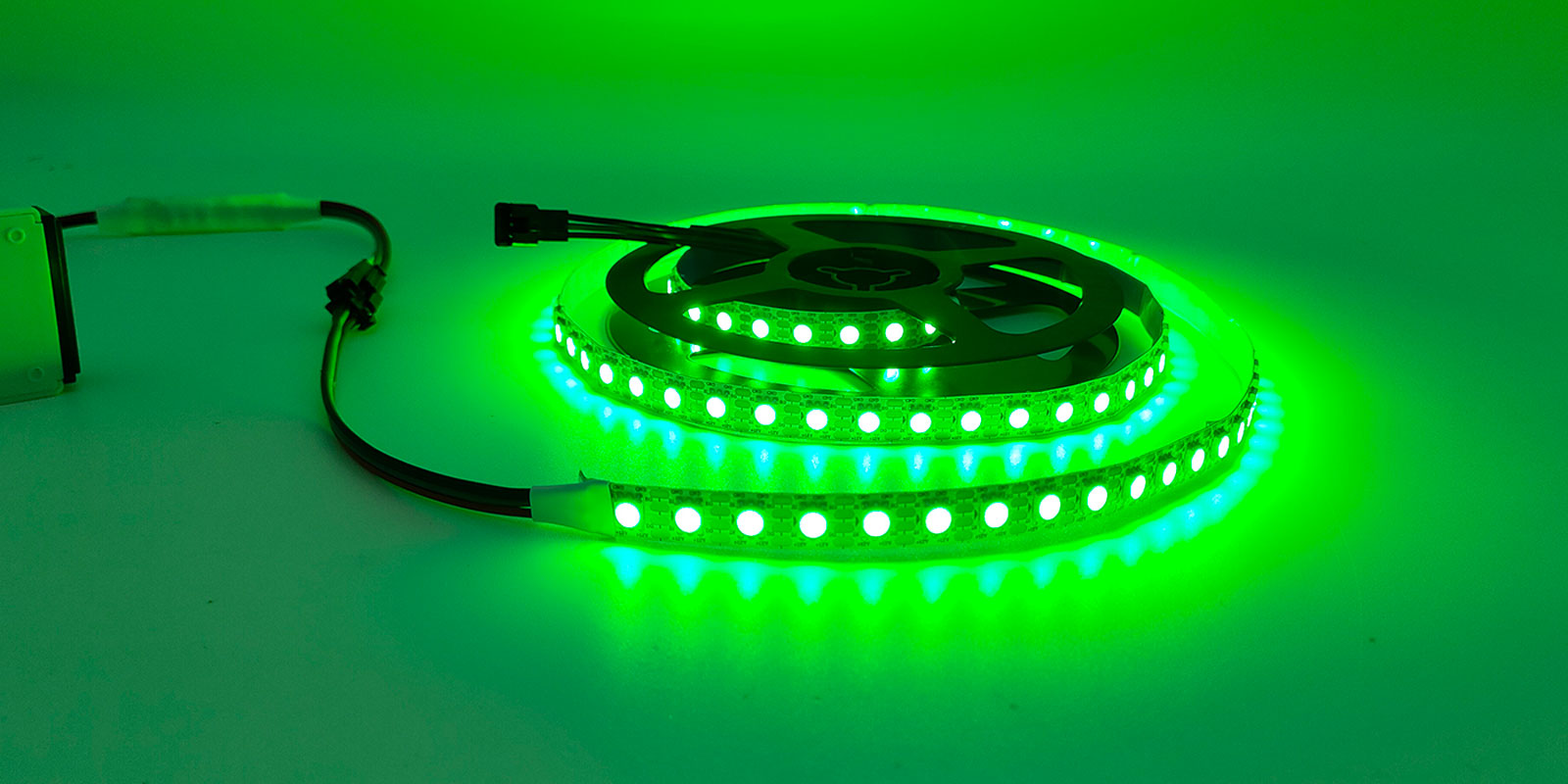

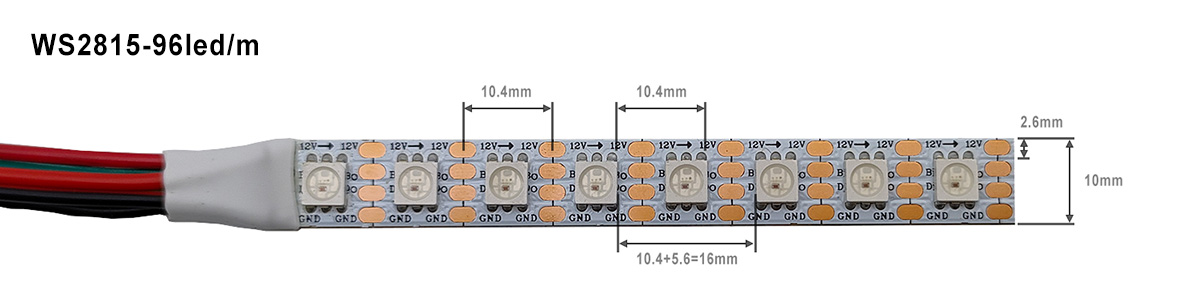

Photos show:
