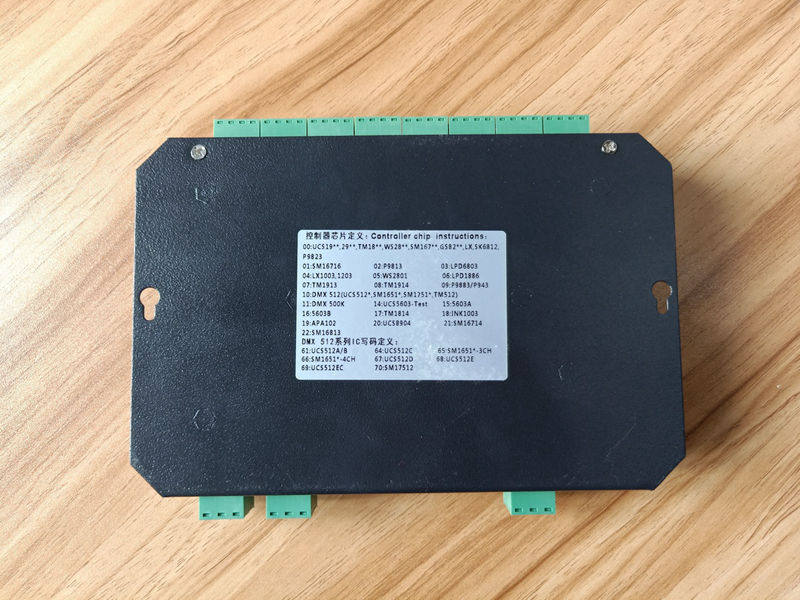

Offline 8 Ports K-8000C Programmable RGB LED controller SD Card LED Pixel Controller for SPI/DMX
Features:
1) 8 Ports drive maximum 8192 pixels. Each port control maximum 1024 pixels. (512 Pixels for DMX512 per port)
2) K-8000C works offline, the programmed content can be copy into the SD Card.
3) Good control effect, grayscale level is under precisely control.
4) The controller can be used in single or multiple cascades. The cascade adopts photoelectric isolation mode: anti-interference and better stability.
5) The distance between the two cascades can reach 150 meters. It needs 0.5 square copper power supply lines.
6) IC Controller for DMX Lamps with Writing Address Function
7) Controller has 22 kinds of test results
Data sheet:
| Product: | Offline 8 Ports K-8000C LED Controller |
| Model No.: | K-8000C |
| Controllable: | Can drive 8192 Pixels with 8 ports (1024Pixels/port) |
| Input Volage: | DC 5-24V |
| Consumption: | 5W |
| Net weight: | 0.80kg/pcs |
| Dimension: | 180 x 120 x 30(mm) |
| Supported driver chips: | Almost all of the digial led chips, including single SPI, Double SPI, DMX512, and more |
Keywords: Offline 8 Ports K-8000C Programmable RGB LED controller SD Card LED Pixel Controller for SPI/DMX
Support chips:
- Single SPI: WS2811, WS2812, WS2813, WS2815, WS2818, SK6812, SM16703, TM1814, UCS1903, UCS2903, GS8205, SM16704, （Support up to 1024*8=8192 pixels）
- Double Data: TM1914, TM1934, GS8206, （Support up to 1024*8=8192 pixels）
- CLK & Data: WS2801, APA102, SK9822, APA107, SM16726, （Support up to 1024*8=8192 pixels）
- DMX512: UCS512B3, UCS512C3, UCS512C4, SM16512, TM512AC, （Support up to 320*8=2560 pixels）
1) The controller load lamps 512 points pixel, speed can reach up to 30 frames / sec,
2) The controller load lamps 768 point pixel speed can reach up to 25 frames / sec,
3) The controller load lamps 1024 point pixel speed is about 22 frames / sec
– The above parameter is an example of 1903 agreement IC, different IC have difference.
