90led/m WS2811 Digital led strips
Overview:

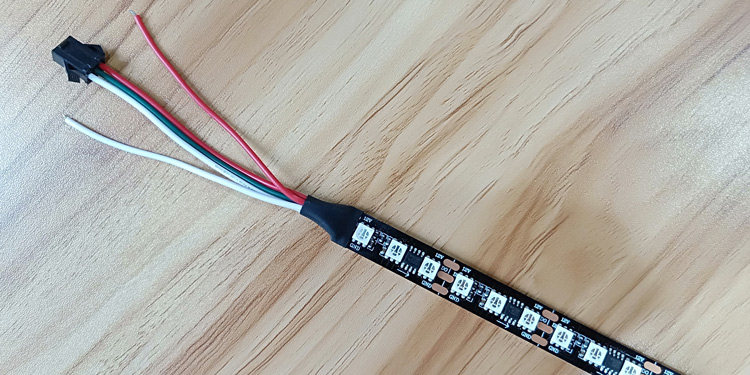

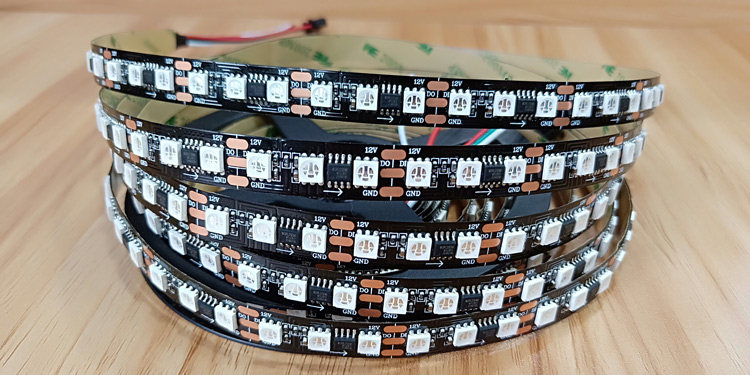

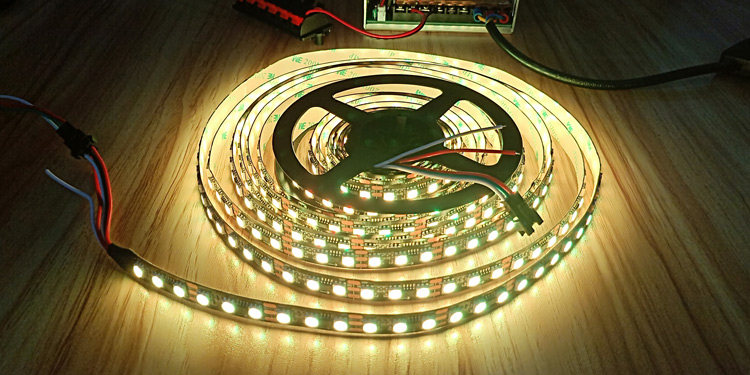

WS2811 Digital led strips, 90led/m, Control IC built outside the LED, 30pixel/m, 12V, 21.6w/m, 12mm white or black PCB, 15cm JST connector;
PS: the WS2811 is available to be replaced by UCS1903 IC, to form 90led/m UCS1903 Digital led strips, with the same benefits as the WS2811.
Data sheet:
| Product: | 90led/m WS2811 Digital led strips |
| Item No.: | WTP-2811X90-12V |
| LED: | WS2811-SMD5050-RGB, 90led/m |
| View angle: | 120° |
| IC Chip: | WS2811 / UCS1903 |
| Input voltage: | 12V DC |
| Power: | 21.6w/m |
| Size: | 5000x12x2.2(mm), 12mm width black or whie FPCB, 4oz, 5m/roll |
Features
1) Addressable DC12V WS2811 LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Addressable, each IC control three SMD5050-RGB LEDs;
4) WS2811 has 3 Wires input and output: Data, GND and Power+;
6) 3 leds one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
Application:
> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting
Remark:
1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.
Order Info: (IP20/IP65/IP67/IP68)
| SN | Model Number | LED/m | Pixel/m | Width(mm) | Color | Voltage | P(w/m) | m/roll |
| 1 | WTP-2811RGBx30 | 30led/m | 30 | 10 | W/B | 12V | 6.6 | 5 |
| 2 | WTP-2811RGBx60 | 60led/m | 60 | 10 | W/B | 12V | 13.2 | 5 |
| 3 | WTP-2811RGB1x90 | 90led/m | 90 | 12 | W/B | 12V | 21.6 | 5 |
| 4 | WTP-2811RGBx90P | 90led/m | 90 | 15 | W/B | 12V | 24.0 | 5 |
