60LED WS2811 Addressable led strips

60LED WS2811 Addressable led strips
60LED WS2811 Addressable led strips



Overview:

60LED WS2811 Addressable led strips, 60led/m, Control IC built outside the LED, 20x WS2811, 20pixel/m, 12V, 14.4w/m, 10mm white or black PCB, 15cm JST connector;

Datasheet:

  Product:   60LED WS2811 Addressable LED strips
  Item No.:    ADY-2811-1012-60
  LED:    WS2811-SMD5050-RGB, 60led/m
  View angle:   120°
  IC Chip:   WS2811
  Input voltage:   12V
  Power:   14.4w/m
  Size:   5000x10x2.2(mm), 5m/roll

Features

1) Addressable DC12V WS2811 LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Addressable, each IC controls three SMD5050-RGB LEDs;
4) WS2811 has 3 Wires input and output: Data, GND, and Power+;
6) 3 LEDs one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;


Application:

> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting

Remark:

1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press the LED;
4) Don’t make positive and negative reversed;
5) Don’t install when the product is working;
6) Installation, repair, and maintenance must be made by a professional Person;
7) Before you use them make sure the power supply voltage meets the requirements and wire connection correctly.

 Order Info: (IP20/IP65/IP67/IP68)

SN Model Number LED Qty
(led/m)
Pixel Qty
(Pixel/m)
PCB Width
(mm)
PCB
Color
Operate
Voltage
Power
(w/m)
Packing
(m/roll)
1 ADY-2811-1012-30 30led/m 30 10 W/B 12V 6.6 5
2 ADY-2811-1012-60 60led/m 60 10 W/B 12V 13.2 5
3 ADY-2811-1212-90 90led/m 90 12 W/B 12V 21.6 5
4 ADY-2811-1512-90P 90led/m 90 15 W/B 12V 24.0 5

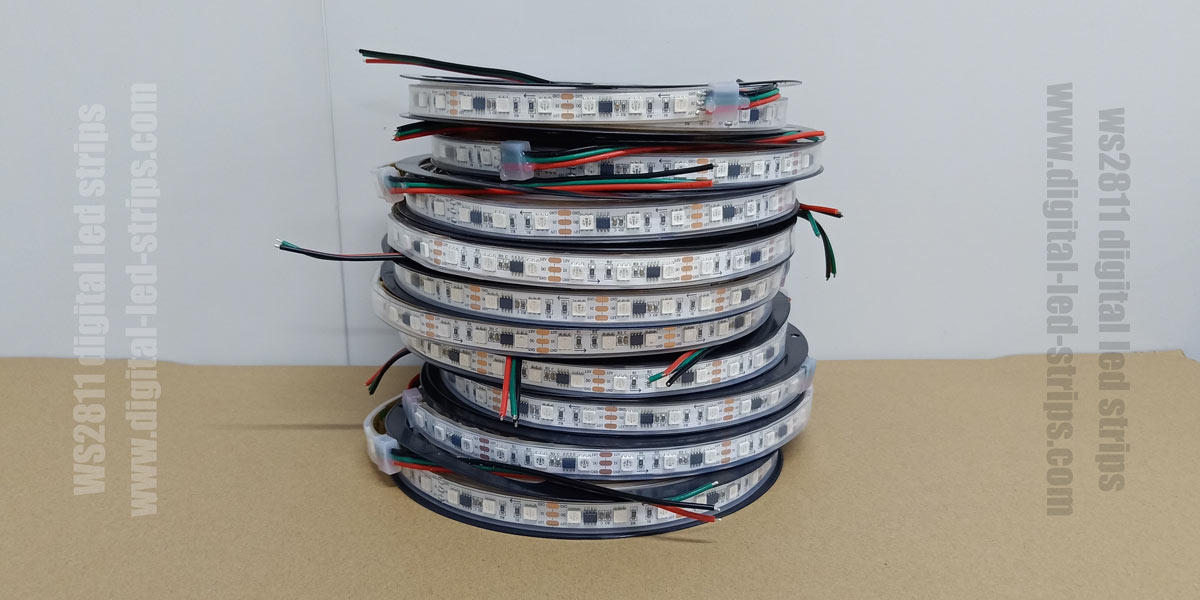

Photos

High quality LED SMD5050-RGB, 2oz PCB
10mm white or black FPCB
Can be drived by 12V battery
