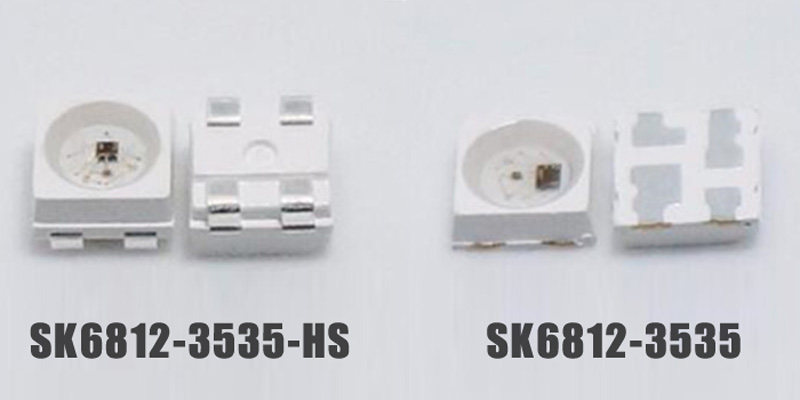

SK6812 Full Series LED Chips 5050 3535 RGB RGBW WWA

SK6812 Full Series LED Chips 5050 3535 RGB RGBW WWA

SK6812 Technical Data Sheet
Product Overview
SK6812 is a set of smart control circuit and a light emitting circuit in one of the controlled LED source. The outer type is the same with a 5050LED chip, each element is a pixel. Pixels contained within the intelligent digital interface data latch signal shaping amplification circuit,
power supply circuit, a built-in constant current circuit, high precision RC oscillator, the output is driven by the patented PWM technology, effectively guarantee the pixels in the color of the light high consistency.
Data protocol using unipolar NRZ communication mode, the pixel is reset after the end of DIN, accept the data transmitted from the controller to the 24bit, the first to send data by the first pixel to pixel extraction, internal data latch, the remaining data after the internal
plastic the processing circuit after shaping amplification through the DO port output began to turn to the next cascade of pixels, each pixel through a transmission signal, reduce. Pixel using automatic shaping forwarding technology, makes the number of cascade without signal
transmission limit of the pixel, only limited signal transmission speed.
The LED has a low driving voltage, environmental protection and energy saving, high brightness, scattering angle, good consistency, low power, long life and so on. The control circuit is integrated in the LED above, more simple circuit, small volume, easy installation.

Main Application Field:
● Full color LED string light, LED full color module, LED super hard and soft lights, LED guardrail tube, LED appearance / scene lighting
● LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical equipment etc..
Technical Data Sheet
Mechanical Product Size (unit mm):
● Top SMD internal integrated high quality external control line serial cascade constant current IC;
● control circuit and the RGB chip in SMD 5050 components, to form a complete control of pixel, color mixing uniformity and consistency;
● built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line;
● The built-in power on reset and reset circuit, the power does not work;
● gray level adjusting circuit (256 level gray scale adjustable);
● red drive special treatment, color balance;
● line data transmission;
● plastic forward strengthening technology, the transmission distance between two points over 10M;
● data transmission frequency up to 800Kbps, when the refresh rate of 30 frames per second, a cascade of not less than 1024;
● built-in powerpolarity protection module, powerpolarity will not damage.

Description Pin Function:
Item Symbol Pin Name Function description
1 VSS Ground The signal and power supply and grounding
2 DIN Data Input control signal input data
3 VDD Power power supply pin
4 DOUT Data

Output control signal output data
The electrical parameters (limit parameters, Ta=25 C, VSS=0V):
Parameter Symbol Range Unit
Input voltage VIN +5 V
Logic input voltage VI -0.5~VDD+5.5 V
Working temperature Topt -40~+85 ℃
Storage temperature Tstg -50~+150 ℃
EST pressure VESD 4K V

SK6812 Full Series LED Chips 5050 3535 RGB RGBW WWA
