New 12V 60 Pixels Individual Addressable CS8812F Digital led strips
Overview:
New 12V 60 Pixels Individual Addressable CS8812F Digital led strips, 60led/m, Control IC built inside the LED, 60pixel/m, 12V, 13.2w/m, 10mm white or black PCB, 15cm JST connector; higher drive voltage, lower vlotage dropping.
Data sheet:
| Product: | 12V 60Pixels/m Individual Addressable CS8812F Digital led strips |
| Item No.: | WTP-8812F-60-1012 |
| LED: | CS8812F-SMD5050-RGB, 60Piexls/m |
| View angle: | 120° |
| IC Chip: | CS8812F |
| Input voltage: | 12V |
| Power: | 13.2w/m |
| Size: | 5000x10x2(mm) |
Features
1) Addressable DC12V CS8812F LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside a SMD5050-RGB LED;
4) CS8812F has 3 Wires input and output: Data, GND and Power+;
5) One led one cut;
6) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
7) Each IC control one led, individual controllable;

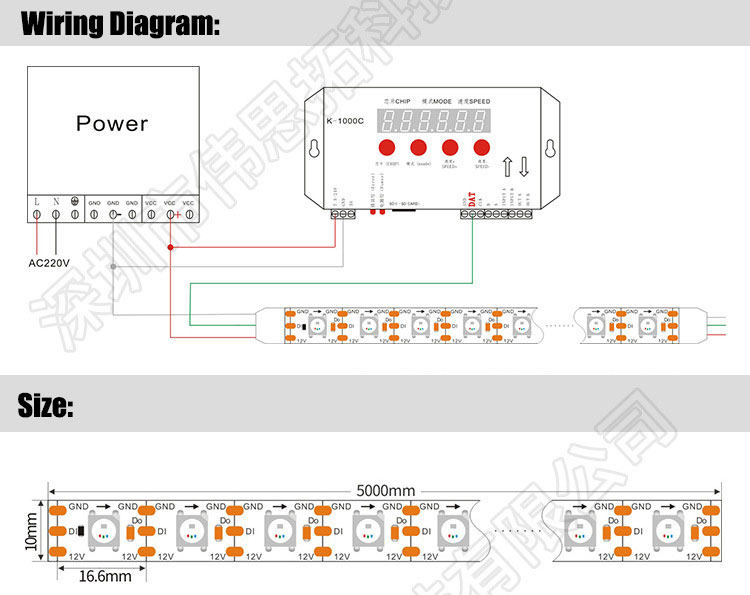

Wiring Diagram & Size:
Application:
> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting

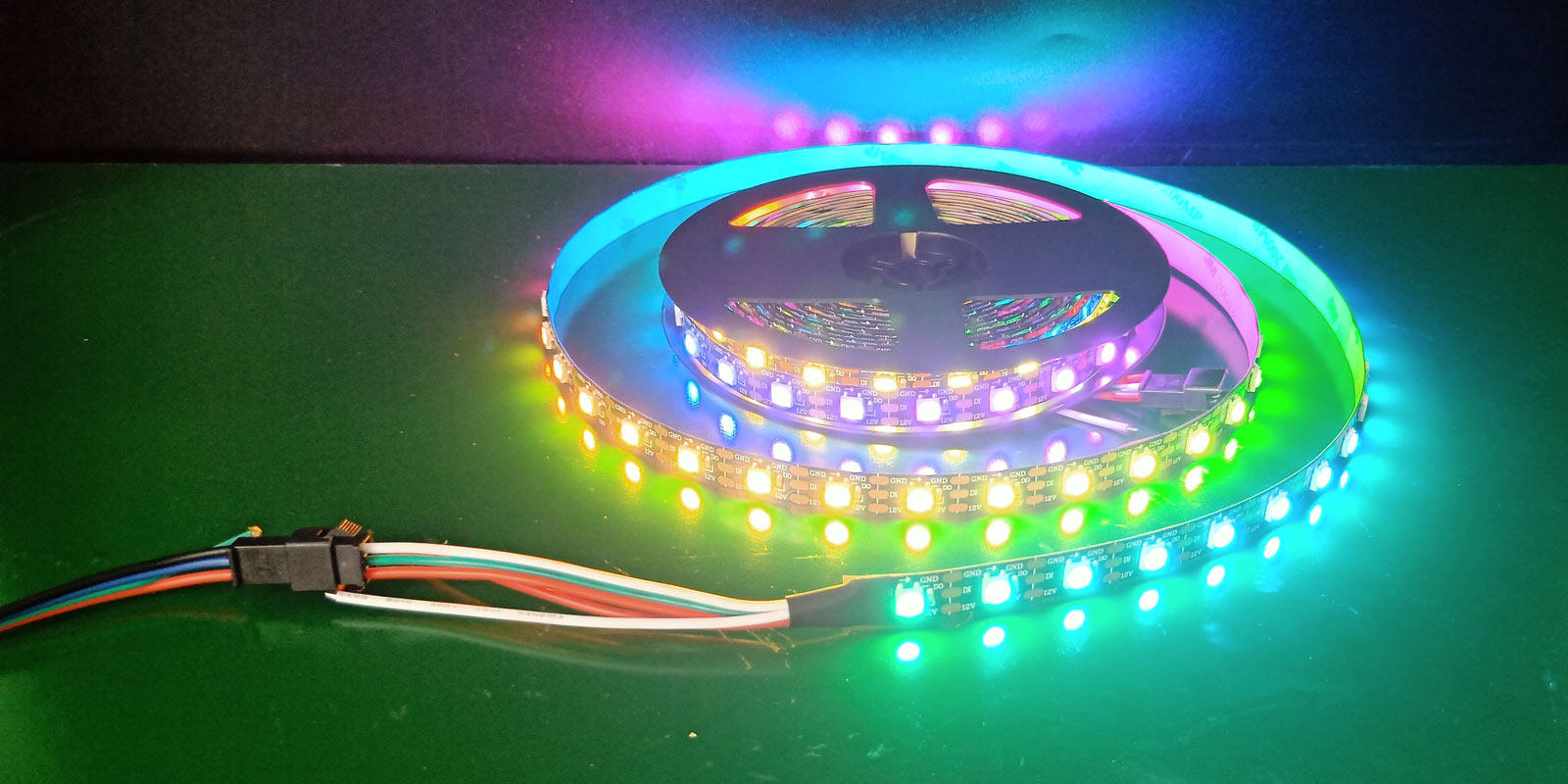

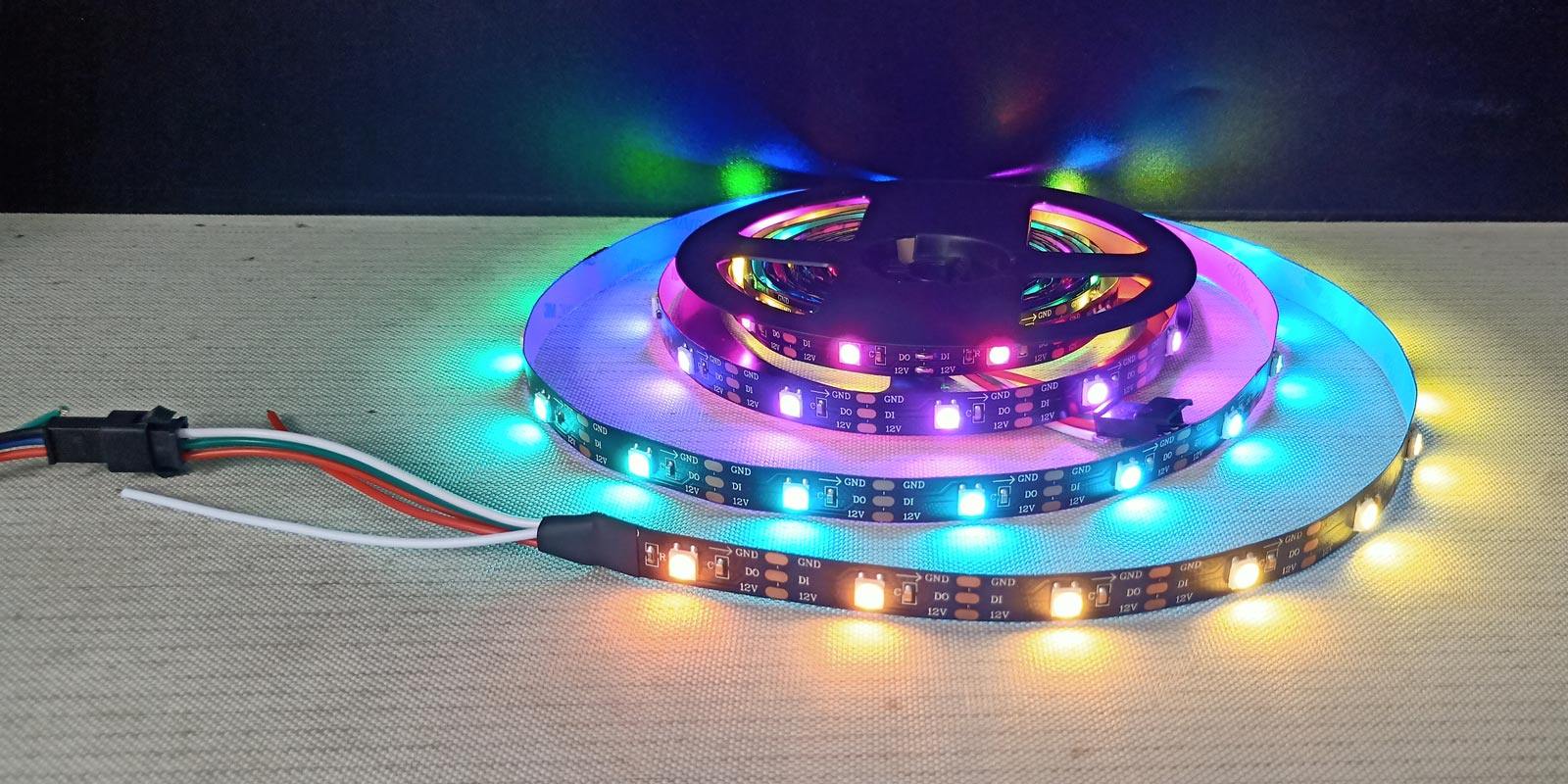

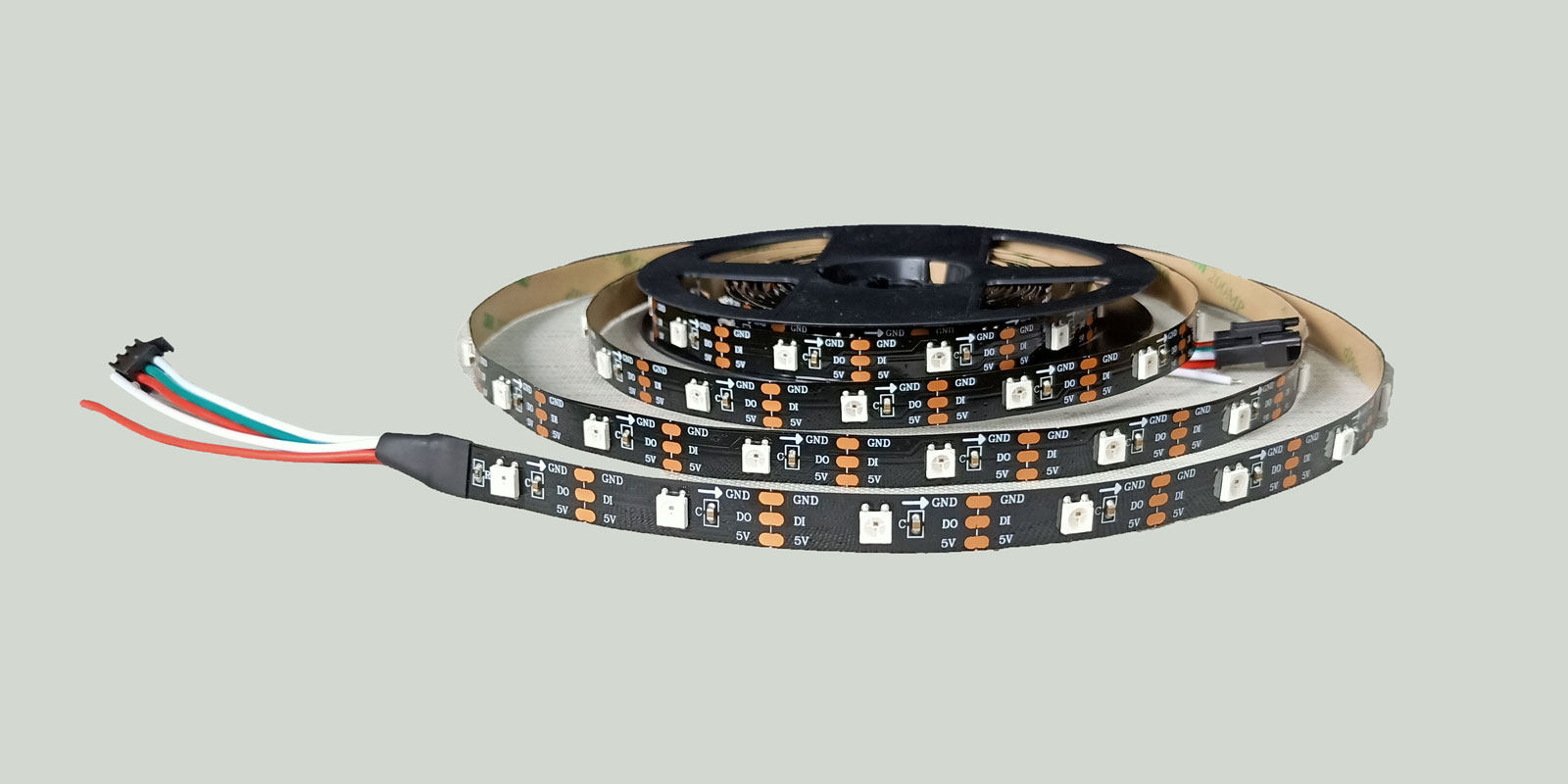

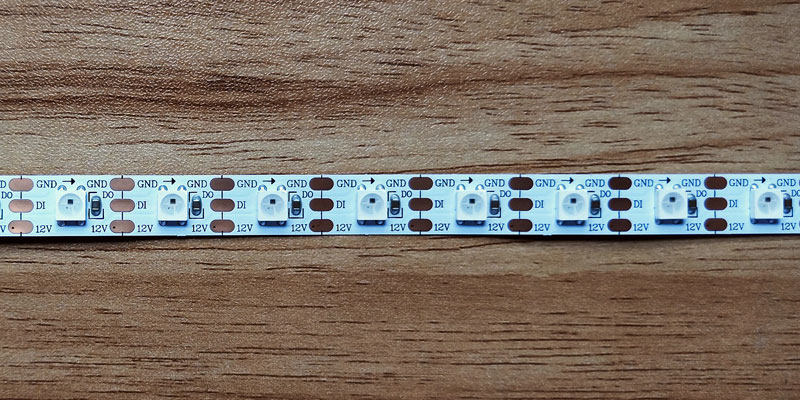

Photos

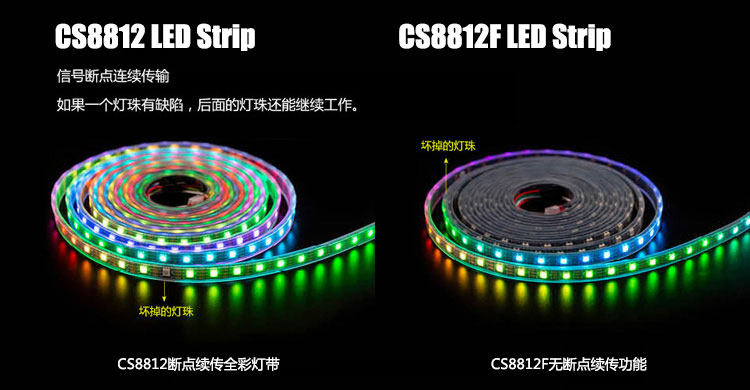

CS8812 VS CS8812F:
