Bluetooth 4.0 APP control SP105E Magic Controller 5-24V 2048 Pixels smart led pixel controller
Bluetooth 4.0 APP control SP105E Magic Controller 5-24V 2048 Pixels smart led pixel controller
1) Features:
> App Control via Bluetooth 4.0,long Control distance,convenient to use;
> Support almost every kind of one-wire or two-wire led driver IC ;
> Brightness adjustable,With200kinds of patterns,which are vivid and beautiful;
> Support setting total pixel number,able tocontrol up to2048pixels;
> DC5V~24V wide working voltage,preventing reverse connection of power supply;
> User setting saving;
2) App:
The specialized App is available on both IOS and Android OS. (hardware should support Bluetooth 4.0)
> Apple Device: iPhone4S | iPhone5/5S/5C | iPhone6S/6s Plus | iPhone6 / 6 Plus,supported IOS8.0versionor later;
> Android OS version should be Android 4.4 or later.
> Search”Magic-led” or scanning the QR code below to download and install the App
3) Specifications:
Working temperature : -20℃~60℃;
Working Voltage : DC5V~24V;
Working Current : 28mA~40mA;
Remote distance : 20 Meters;
Product size : 84mm*44mm*22.5mm;
Product weight : 40g ;
Certificates : CE, RoHS;

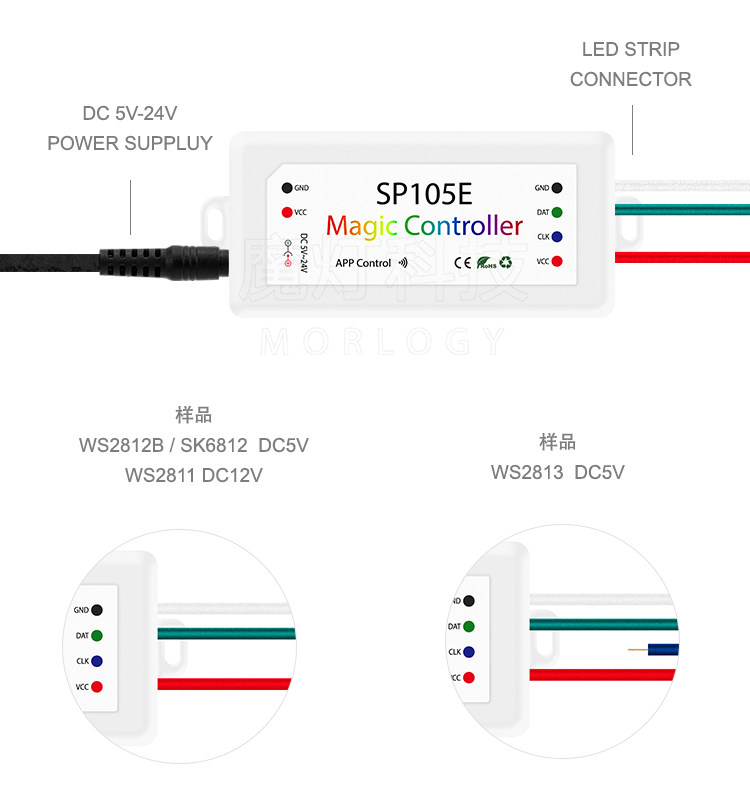

4) Wire Connection:
