No Light Dot CRI>90 640led 14W 24v Cove Light False Ceiling Flexible COB LED Tapes

COB Flexi led tape
No Light Dot CRI>90 640led 14W 24v Cove Light False Ceiling Flexible COB LED Tapes

Overview:

No Light Dot CRI>90 640led 14W 24v Cove Light False Ceiling Flexible COB LED Tapes, 640led/m, 24V, 14w/m, 10mm white PCB, 2-Pin ordinary or waterproof connect wire output; high color efficiency, uniform illumination, can be bent freely, not easy to be a break and not affect the current.

Data sheet:

  Product:   COB Flexible led strip
  Item No.:    WTP-COB-640-1024
  LED:    COB LED, 640LEDs/m, RA80, 2700K, 3000K, 4000K, 6000K
  View angle:   180°
  IC Chip:   N/A
  Input voltage:   24V
  Power:   14w/m
  Size:   5000x10x2(mm)

Features

1) High brightness, low light decay. lifespan>50,000 hours, 2-year warranty;
2) Pure color, CCT avaliable 2000-7000k. DC12V/24V, safe & low power consumption;
3) No light dot or spot; soft light, Arbitrarily bending, smaller bendable angle;
4) 180° view angle;
5) Easy to connect & install Free cuttable soft FPC;
6) Dustproof and water resistant IP65; Flexible ribbon for curving around bends;
7) Solid-state, high shock vibration resistant;
8) very good heat dissipation, better than the SMD2110/2216/2835 led strips.

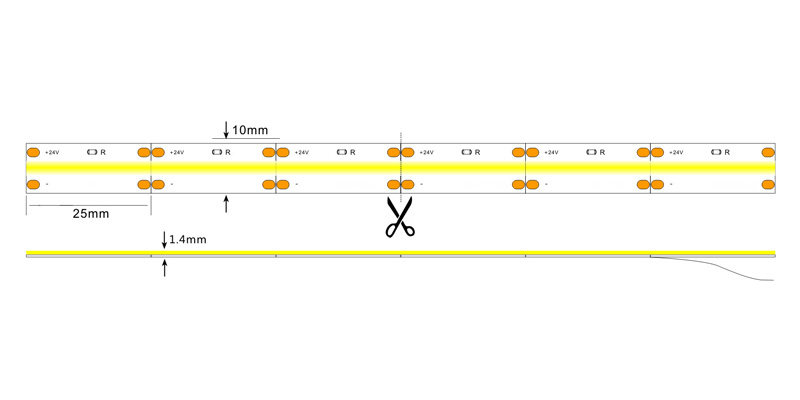

Wiring Diagram & Size:

Size
Wiring diagram

Size

Application:

  • 1) Architectural decoration Lighting; Backing lighting for signage letters;
  • 2) Decoration lighting for under water project; Archway /Canopy & Bridge Edge Lighting;
  • 3) Auditorium walkway lighting, Amusement park / Theater lighting;
  • 4) Stairway Accent Lighitng, Channel letters lighting;
  • 5) Furniture Decoration Lighting; Cove Lighting etc;

 Order info: (Color: White or R/G/B/Y)

 SN  Model Number LED PCB Width Voltage Power Waterproof
1   WTP-COB-378-XXXX 378led/m 6/8mm 12V / 24V 5-14w/m IP20/IP65/IP67
2   WTP-COB-504-XXXX 504led/m 8/10mm 12V / 24V 8-18w/m IP20/IP65/IP67
3   WTP-COB-640-XXXX 640led/m 10mm 12V / 24V 10-20w/m IP20/IP65/IP67

Photos

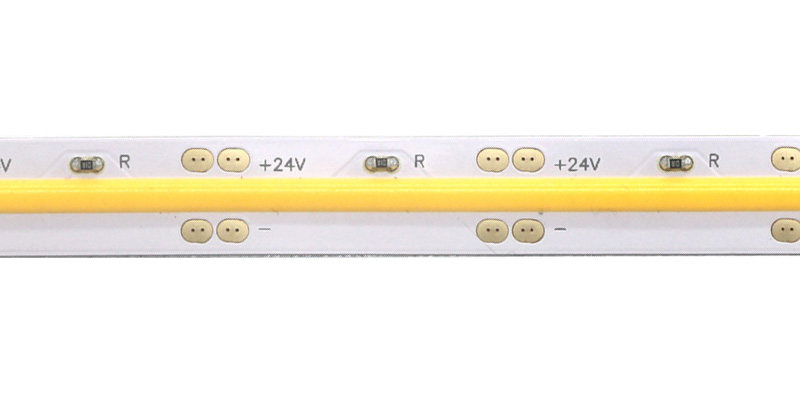

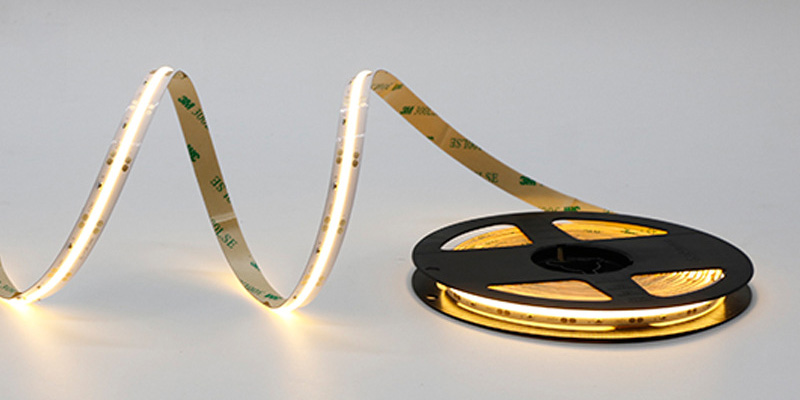

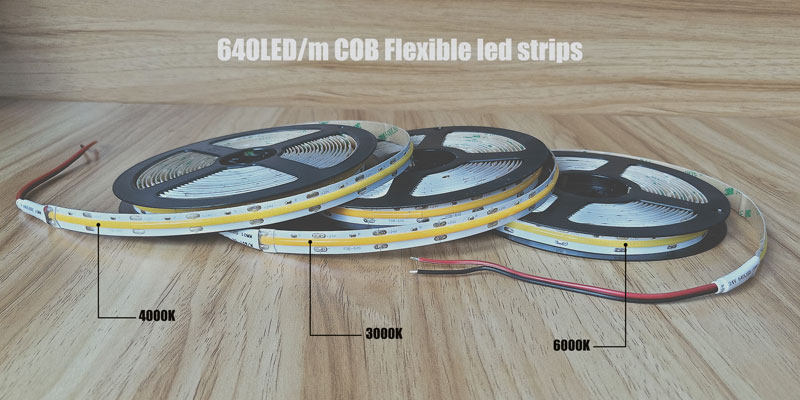

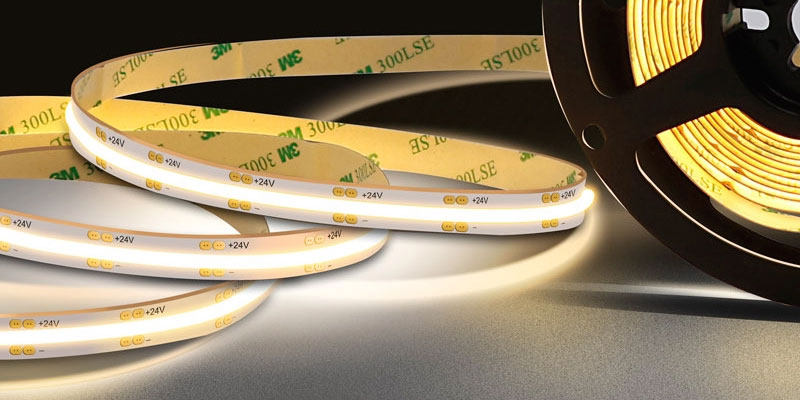

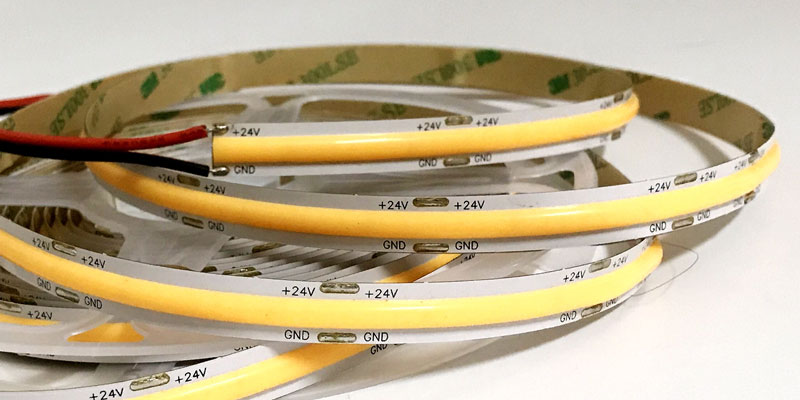

COB Flexible led strip
COB Flexible led strip
COB Flexible led strip
COB Flexible led strip
