1m/2m/4m/5m SK6812 Addressable LED Strip 30/60/72/96/100/144 pixels/leds/m Smart RGB Led Light Strip

SK6812 led strips compared | with capacitance VS without capacitor:

sk6812 digital led strips compared
  • LED Resource: SK6812 led (5050 SMD RGB LED with the built-in improved version of ws2811 ic, Each LED is separately controlled)
  • Lighting Colors: Full-color RGB, dream color changing
  • Cuttable: Every LED is cuttable
SNItem No.LED/mPixels/mFPCBVoltage & Power
1WTP-6812-RGB-30303010mmDC 5V, 9w/m
2WTP-6812-RGB-60606010mmDC 5V, 18w/m
3WTP-6812-RGB-72727210mmDC 5V, 22w/m
4WTP-6812-RGB-96969610mmDC 5V, 28.8w/m
5WTP-6812-RGB-10010010010mmDC 5V, 30w/m
6WTP-6812-RGB-14414414412mmDC 5V, 43.2w/m

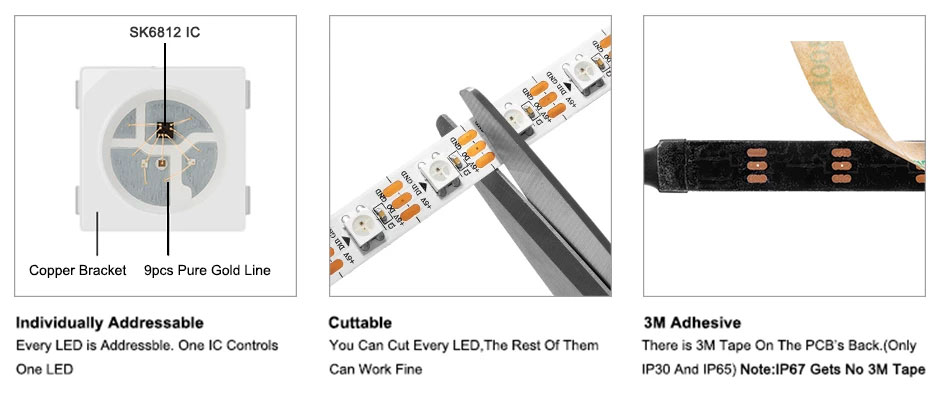

Individually addressable & Cuttable & 3M Adhesive tape

Cuttable

Waterproof grade:

SNWaterproof GradeDescription
1IP20/IP30No waterproof, with 3M adhesive tape on the back
2IP65in Silicone Coating, with 3M adhesive tape on the back
3IP67in Silicone Tube, without 3M adhesive

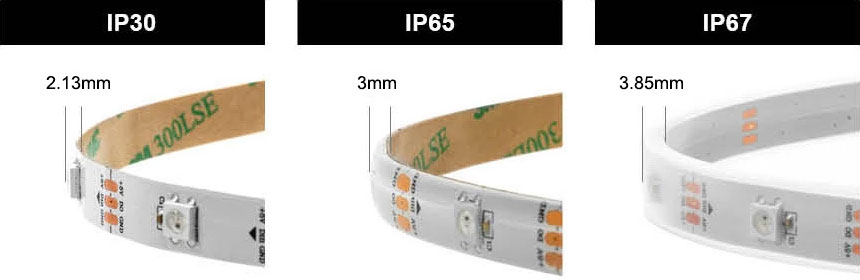

IP30 VS IP65 VS IP67
IP30 VS IP65 VS IP67

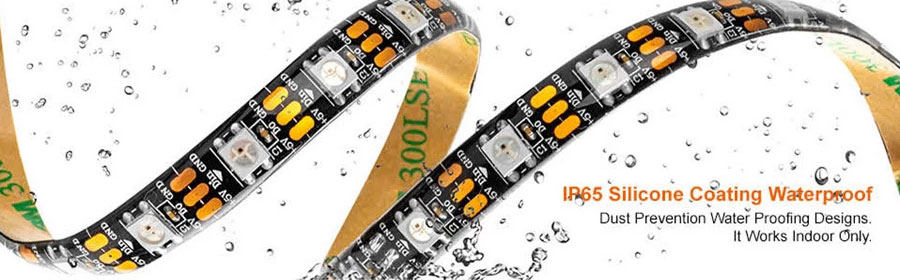

IP65 Silicone Coating Waterproof
IP65 Silicone Coating Waterproof, Dust prevention, waterproof design, workds indoor only

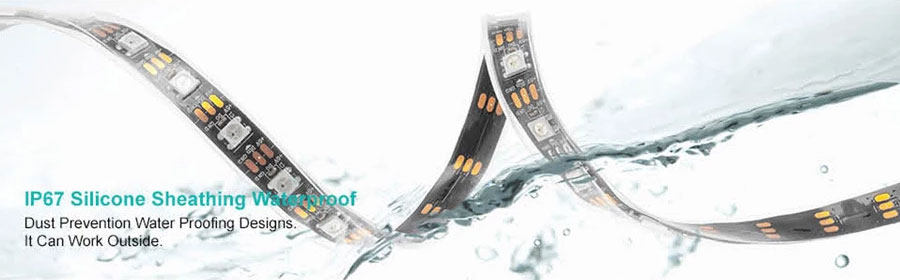

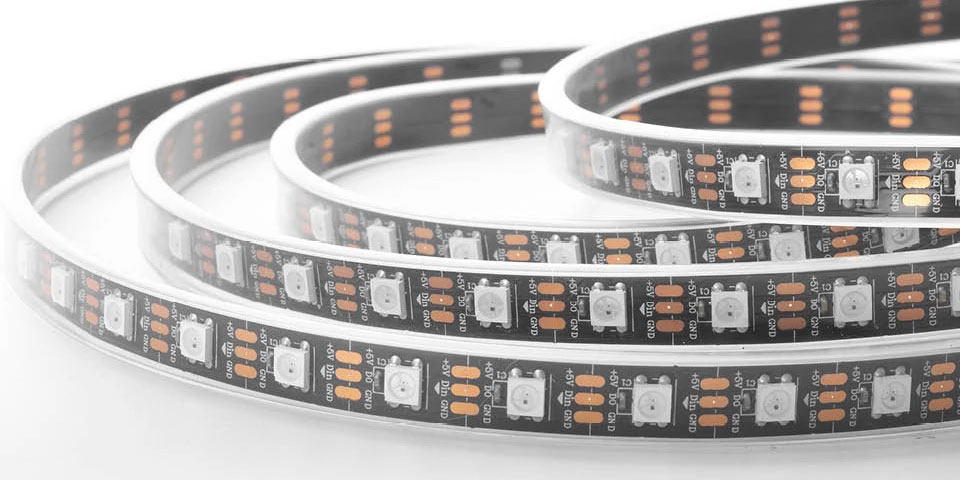

IP67 silicone sheathing waterproof
IP67 silicone sheathing waterproof, dust prevention, waterproof design, it can workds outdoor

Photos show

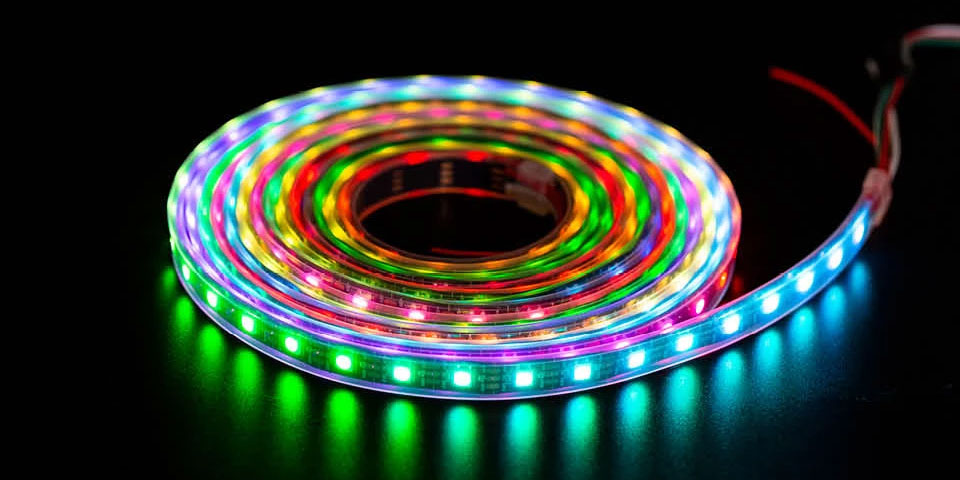

SK6812 digital led strips 60led/m IP67
IP67 SK6812 digital led strips, 60led/m
SK6812 digital led strips 60led/m IP67
SK6812 digital led strips, 60led/m, IP67

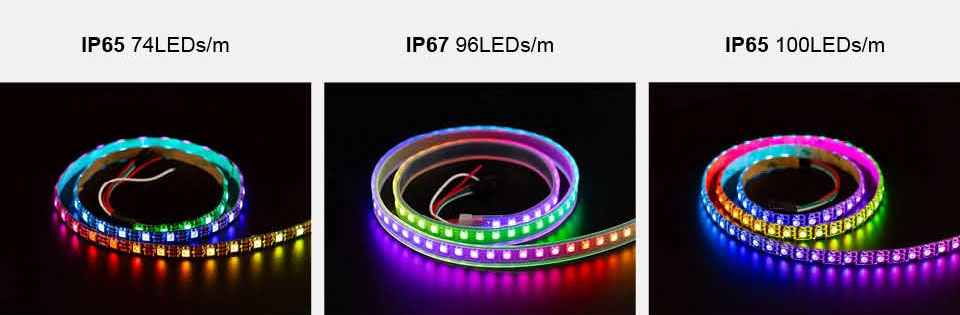

IP65 74LED/m IP67 96LED/m IP65 100LED/m
IP65 74LED/m IP67 96LED/m IP65 100LED/m
SK6812 digital led strips 60led/m IP30
SK6812 digital led strips, 60led/m, IP30

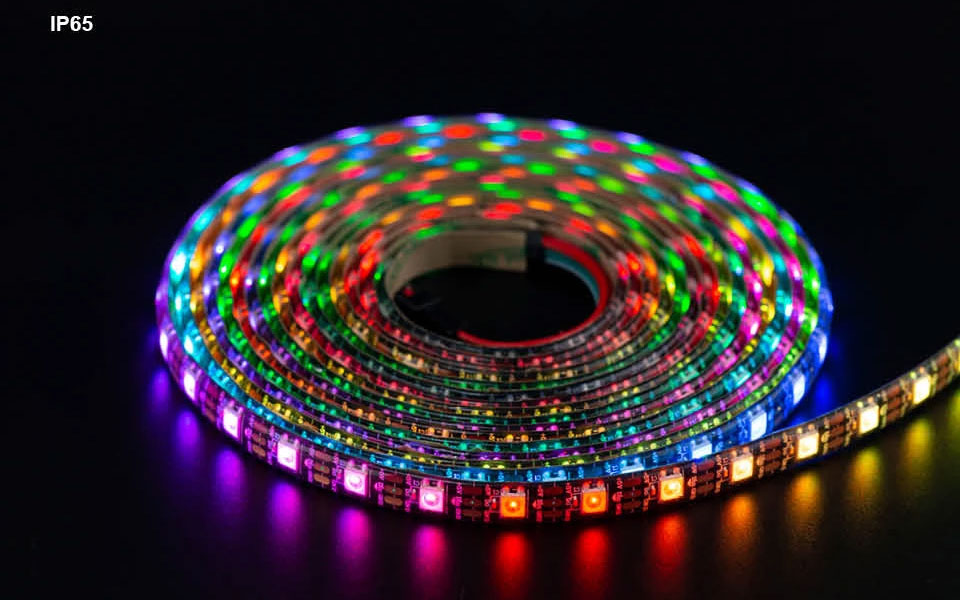

SK6812 digital led tape 60led/m IP65
60led/m IP65 SK6812 digital led strips
SK6812 digital led strip 60led/m IP65
SK6812 digital led strips, 60led/m, IP65

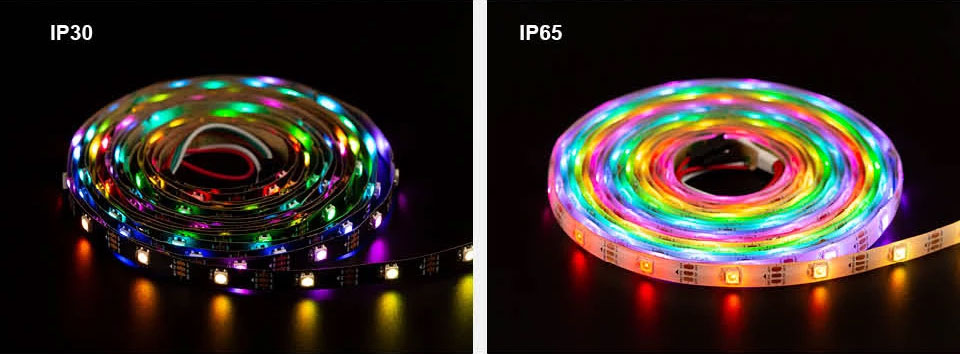

IP30 VS IP65
IP30 VS IP65
SK6812 digital led strips 144led/m IP67
SK6812 Led Strip, 144led/m, IP67

How to connect SK6812 Led Strip?

SK6812 Connect

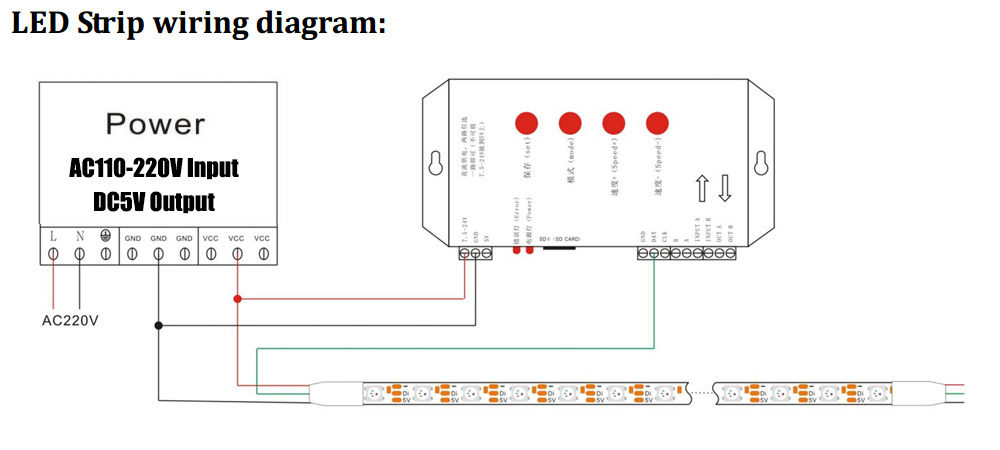

LED strips wiring diagram SK6812 Connect

Buyer Questions & Answers ‎(5)‎

1) How to connect it? nothing is clear
> Try to Google “Sk6812 connect”
> This is a 2812/6812 LED strip. It has three connections: +5V, ground, and data in/out.

2) SK6812 is very similar to ws2812b. but will the Arduino library will work the same?
> The libraries work fine for me…
> Yes, it works for me. The neopixel library, just different initial options

3) if I connect power to sk6812 rgbw (no data) will the white led lit up or all channel rgbw lit up?
> None, you need data

4) what maximum length can I Connect sk 6812 led ?
> The only limit is the Power Supply and the memory of the Arduino… But I saw examples online that used a few thousand of the LEDs. So there isn’t a maximum.

5) can I cut the 60 leds/m strip to shorten it?
> it can cut back each led

Please tell the certain specification before place the order:

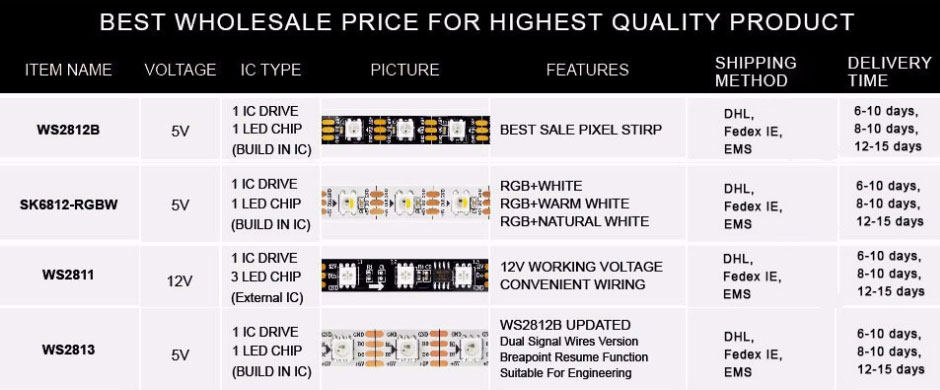

WS2812B & SK6812-RGBW & WS2811 & WS2813

Need price, demo video or samples, Click here to leave us a message
