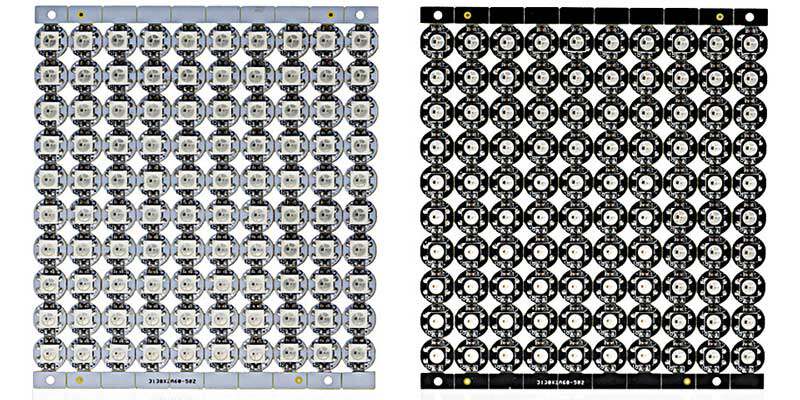

WS2812B LED Chip with Heat Sink Board
- Item name: WS2812B RGB LED Chip with Heat Sink Board
- IC type: 1 IC drive 1 led chip ( build in IC ) (The default is the chips with IC integration)
- R: RED Wavelength : 620-630NM Luminous intensity: 550-700MCD
- G: GREEN Wavelength : 515-530NM Luminous intensity: 1100-1400MCD
- B: BLUE Wavelength : 465-475NM Luminous intensity: 200-400MCD
- Description: Top SMD Type 0.2 Watt

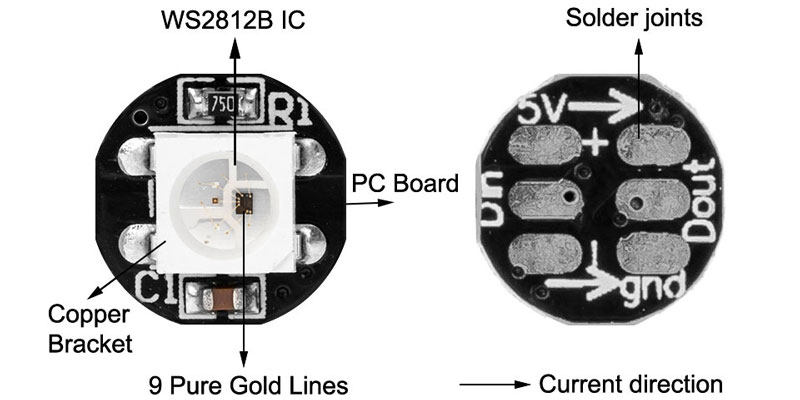

- PIN configuration:
- NO 1, Symbol: VSS Function description: Ground.
- NO 2, Symbol: DIN Function description: Control data signal input .
- NO 3, Symbol: VDD Function description: Power supply LED.
- NO 4, Symbol: DOUT Function description: Control data signal output.
- Absolute Maximum Ratings: ( Ta=25 ℃,VSS=0V )
- Power supply voltage Symbol: V(DD)
- Range: +3.5V – +5.3V Input voltage
- Symbol: V(I) Range: -0.5 – VDD+0.5V Working temperature
- Symbol: Topt Range:-25 – +80 ℃ Storage temperature Symbol: Tstg Range: -40 – +105 ℃

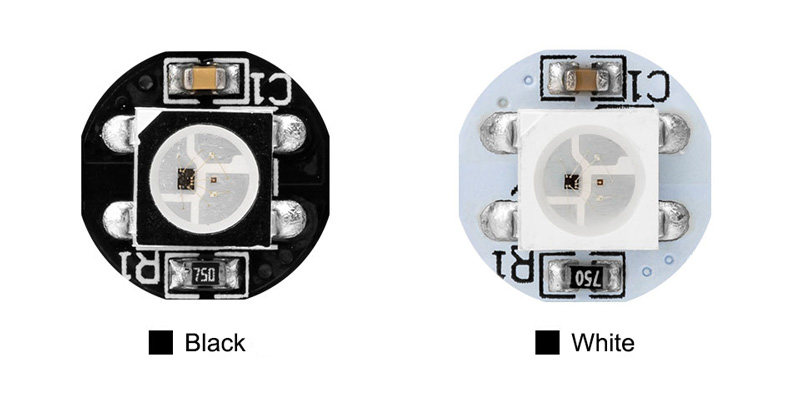

Three versions for optional
Application
