12V Individually Programmable UCS1903 Digital LED Strips

Overview:

New 12V Individually Programmable UCS1903 Digital LED Strips, 120led/m, Control IC built inside the LED, 120pixel/m, 5V, 18w/m, 5mm white or black PCB, 10cm JST connector;

Data sheet:

  Product:   12V Individually Programmable UCS1903 Digital LED Strips
  Item No.:   WTP-1903-3636-120-0512
  LED:   UCS1903-SMD3636-RGB, 120led/m
  View angle:  120°
  IC Chip:  UCS1903
  Input voltage:  12V
  Power:  120LED/m, 12V, 18w/m
  Size:  5000x5x2.0(mm), 5m/roll

Features: 12V | Individual Addressable | IC Buit-in |

1) Addressable DC12V UCS1903 LED Strips; Long life span 50,000+ hours;
2) Micro LED 3636 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside a SMD3636-RGB LED;
4) UCS1903 has 3 Wires input and output: SPI Data, GND and Power+;
6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable;

DC12V Output

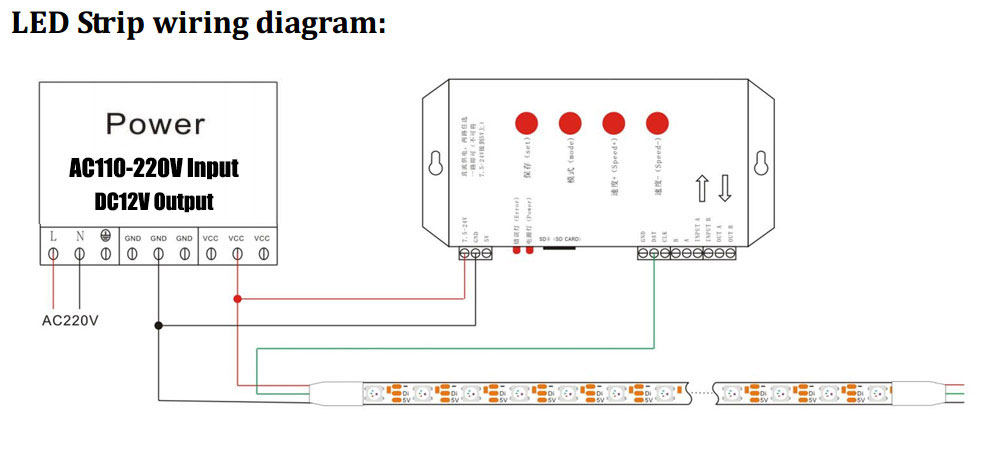

LED Strip wiring diagram UCS1903

Application:

> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting

Remark:

1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

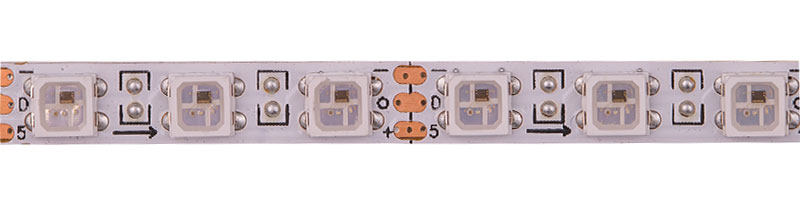

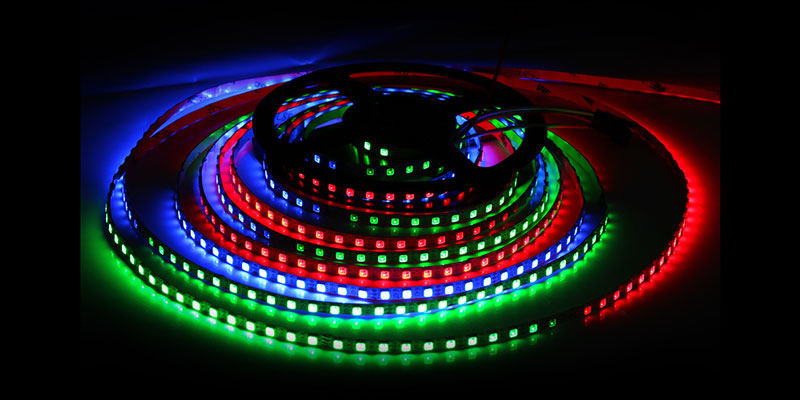

Photos show
