Overview:

Flexible Addressable led strips sk6812 3535 mini 1m 144 pixels, 144led/m, Control IC built inside the LED, 5V, 14.4w/m, 8mm white or black PCB, 10cm JST connector, IP65 silicone gel coating waterproof, 2.5 meters per roll, with 3M adhesive tape on the back;

Data sheet:

  Product:   Flexible Addressable led strips sk6812 3535 mini 1m 144 pixels
  Item No.:    WTP-6812-3535-144-0805
  LED:    SK6812-SMD3535-RGB, 144led/m /
  View angle:   120°
  IC Chip:   SK6812
  Input voltage:   5V
  Power:   144LED/m, DC 5V, 14.4w/m
  Size:   5000x8x2.0(mm), 5m/roll

Features: 5V | Individual Addressable | IC Buit-in |

1) Addressable DC5V SK6812 LED Strips; Long life span 50,000+ hours;
2) Micro LED 3535 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside a SMD3535-RGB LED;
4) SK6812 has 3 Wires input and output: SPI Data, GND and Power+;
6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable;

LED Strip wiring diagram SK6812

Application:

> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting

Remark:

1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

Photos show:

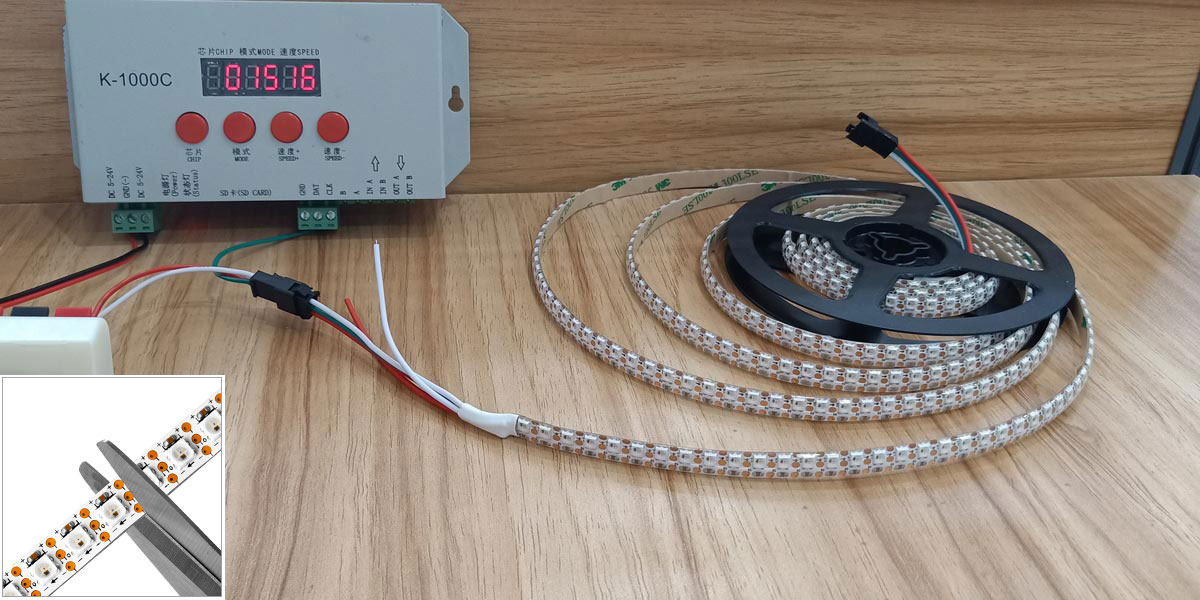

2.5 meters/roll
Ice blue

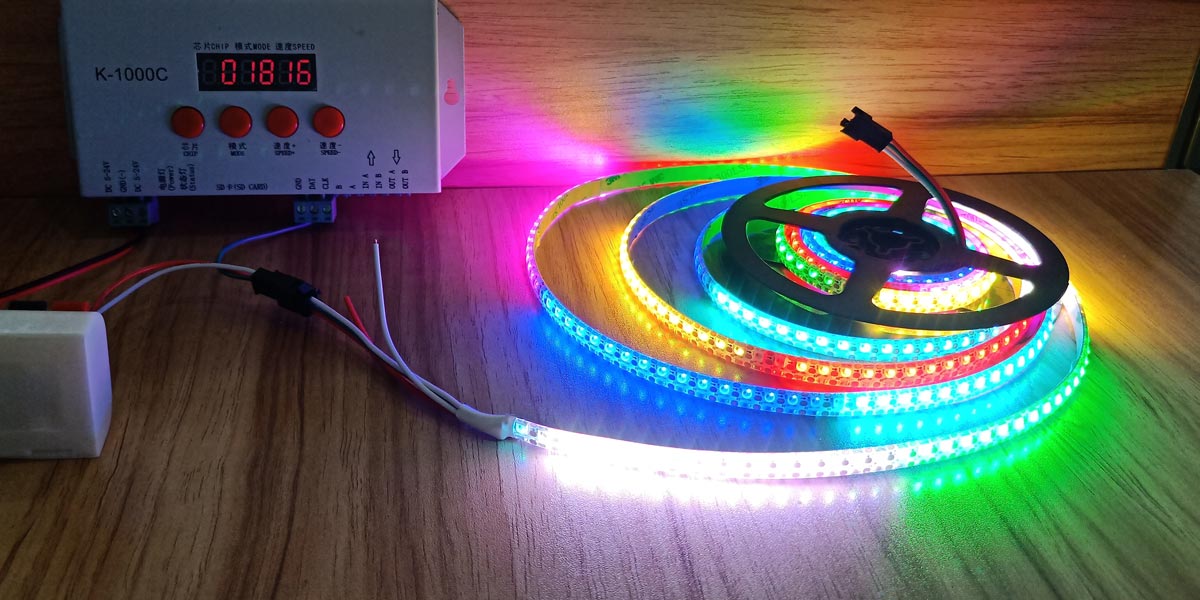

Running
White meteor

Order Info: (IP20/IP65/IP67/IP68)

SN Model Number LED Qty Pixel Qty PCB Width Voltage Power Packing
1  WTP-6812-3535-60-0505 60led/m 60Pixel/m 5mm 5V 6.0w/m 5m/roll
2  WTP-6812-3535-90-0505 90led/m 90Pixel/m 5mm 5V 9.0w/m 5m/roll
3  WTP-6812-3535-120-0505 120led/m 120Pixel/m 5mm 5V 12w/m 5m/roll
4  WTP-6812-3535-144-0805 144led/m 144Pixel/m 8mm (4oz) 5V 14.4w/m 5m/roll
