High Quality Outdoor Programmble LED Pixel Point Light

Pixel Point Light
High Quality Outdoor LED Pixel Point Light, 50mm diameter, Milk Dome Cover

Overview:

High Quality Outdoor LED Pixel Point Light is a new type of energy-saving and environmentally friendly decorative light. It uses LED cold light source to emit light. It has built-in microcomputer chip, which can be programmed and controlled. Multiple simultaneous changes can be achieved. The full-color change effect and multiple LED point light sources form a dot matrix screen. Can change a variety of drawings, text and animation effects, is a complement to linear light sources and flood lighting, beautiful appearance and can meet the design requirements of decorative points and lines of the building. The LED point light source has good heat dissipation, excellent waterproof performance, convenient installation, simple control, low voltage power supply, safe and reliable, and elegant appearance. It is an ideal decoration for buildings, bridge outlines, hotels, billboards, curtain walls and night lighting.

Data sheet:

  Product:   High Quality Outdoor Programmble LED Pixel Point Light
  Item No.:    WTP-D50-DMX512-0724
  LED:    WS2815-SMD5050-RGB, 7led/pixel
  View angle:   120°
  IC Chip:   DMX512 / UCS1903 / SM16703 / GS8206
  Input voltage:   DC 24V
  Power:   1.44w/m
  Packing:   30pcs/channel, or accorking to the contract

Features

1). Ideal replacement of neon light and other traditional advertising lighting.

2). Low power consumption, 80% energy saving

3). High brightness, full range colors are available

4). Long lifespan: 50, 000hours at least

5). Maintainance free, low cost to use

6). Low voltage with 24V, be safe to use

7). Easy installation, be convenient to use in all display situation.

Application:

> Channel letter backlighting

> Avertisement sign backlighting

> Architectural decorative lighting

> Indoor and outside ilumination

  Order Info: (IP20/IP68)

dimension

SN Model Number LED Qty
(led/pcs)
Pixel
(Pixel/pcs)
PCB
(mm)
PCB
Color
Voltage Power
(w/pcs)
Packing
(pcs/roll)
1  WTP-D50-DMX512 7 1 50 W/B 24V 1.44 30
2  WTP-D50-1903 7 1 50 W/B 24V 1.44 30
3  WTP-D50-16726 7 1 50 W/B 24V 1.44 30
4  WTP-D50-8206 7 1 50 W/B 24V 1.44 30

Photos:

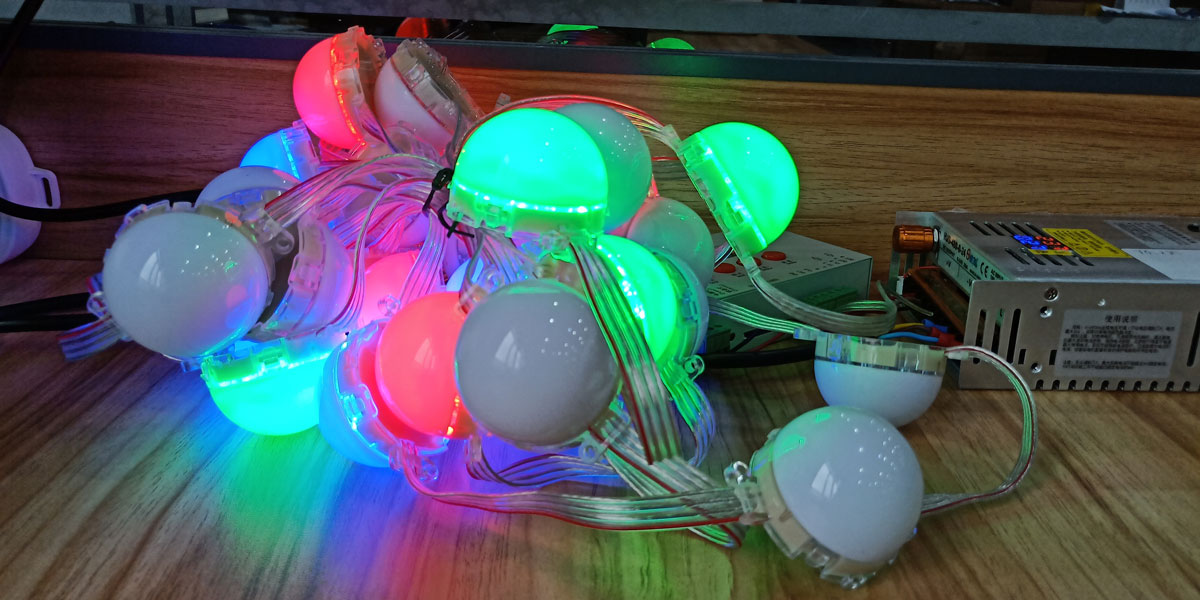

full color Point Light Source
UCS1903 Point Light Source
features
breakpoint continue

Installaton:

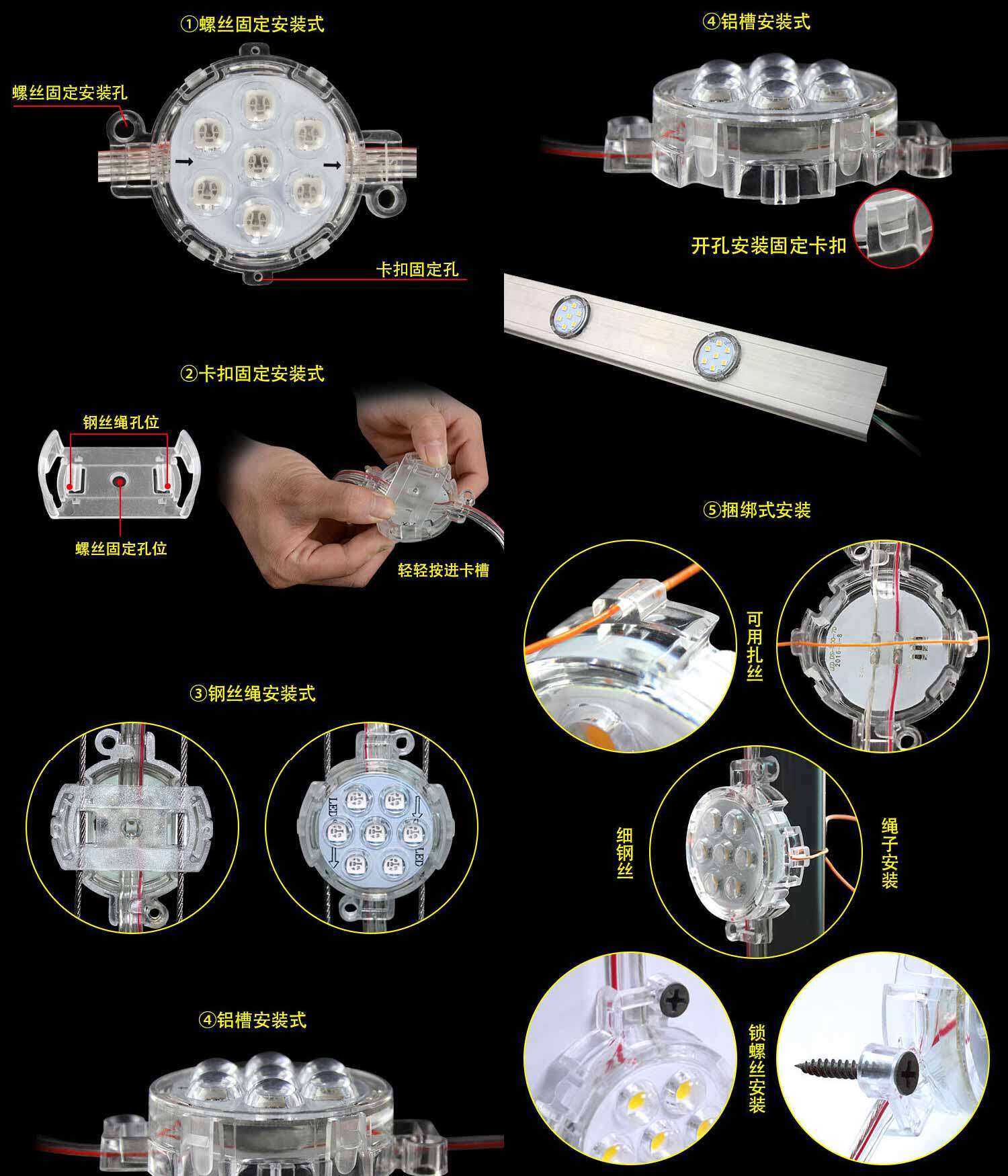

installation of the Point Light Sources

Buy it today | Click here to get the offer?
