T-500K Pixel LED Controller | Art-net | MADRIX
T-500K Pixel LED Controller is an online control, which is very impotent when it comes to live events, You must have real-time control of the display so you can change animations or videos depending on the situation .T-500K controller is different from other “K” series pixel LED controllers because it only can be used as a online controller.
Specifications:
Supply Voltage(AC): 110-240V
Working voltage (DC): DC5V
Working temperature: -30°C ~ +85°C
Weight: 1.5KG
Working power: 8W
Product Size: L270mm×W180mm×H55mm
Max. LEDs: 768/1024
Controller Type: Online or offline
Datasheets:
| Product: | T-500K Pixel LED Controller |
| Working voltage: | DC5V output, AC110-240V input |
| Control led pixels quantity: | Drive up to 8192 pixels maximum using 256 brightness levels per color (24 bit color) |
| Support led pixel effects: | Supports all the various rules-shape, special shape processing |
| Controller Type: | On-line |
| Controller software: | LedEdit2014 / Glediator |
| Art-net: | There is a special version, only suuport Artnet, |
| Programsspeed model: |
Features:
T-500K Pixel LED Drivers can drive up to 6144/8192 LEDs .You can connect maximum of 768/1024 LEDs per port . There are 8 ports .The online features are very identical to other “K-series” model controllers .It has controller networking capability (cascading) as in other K-series Pixel LED controllers .Supports both 3 wire Pixel LED strings or Strips ( Vcc,Data,Gnd ) and 4 wire LED strings or Strips ( Vcc,Data,Clock,Gnd ). Also supports RS485 based Pixel LED strips or strings.

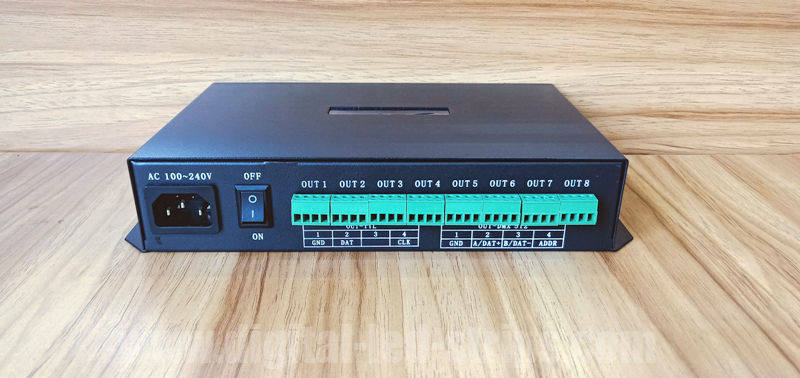

Port Pins ( Communication ) :
- CLK : Clock Out ( For 4 wire Strings )
- DAT : Data Out ( For 3 wire and 4 Wire Strings )
- GND : Data Ground ( Common)
- OUTPUT : Output line to next controller .
- INPUT : Input line from Previous controller / Computer .
Supported Pixel LED Drive chips:
TM1803,TM1804,TM1809,TM1812,TM1829,TM1913,TM1914,
UCS1903,UCS1903B, CS1909B,UCS1912,UCS2903,UCS2909,UCS2912,UCS3903,
UCS6909,UCS6912,UCS7009, UCS5903,UCS8903,UCS512,US2811,
WS2821,P9813,P9823,LPD1886,GW6202,GW6201, GW6202B,GW6204,GW6203,GW623X,
TA9909,MBI6021,INK1003,LX10003,LX2003, LX2006,TLS3100,DMX,
SM16711,SM16726,SM16716,LPD6803,LPD8806,LPD1882,LPD6812,
TM1903,TM1904,TM1909,TM1912,DMX,Monochrome,
WS2801,WS2803,D7710,QC1109, TLS3001,TLS3008,
APA102,MY9221,BS0815,BS0825,BS0901,HL32,HL1809,HL2803, RGB,Monochrome,XB001,XB002.
Note : Not every T-500K controller supports the above listed driver chips . Please consider asking from your seller about supported LED drive chip names .
