3000 Pixels P5 Flexible and Foldable Madrix Module
Description:
3000 Pixels P5 Flexible and Foldable Madrix Module, Indoor none Waterproof LED Module, 5mm Small Pixel Pitch Full RGB LED Panel Screen in 500* 150 mm with 3000 dots,
Keywords people Also Search For:
- flexible led light sheet
- flexible led panel screen display
- addressable flexible led panel
- flexible led matrix panel
- flexible led panel photography
- Arduino 16×16 ws2812b RGB matrix
Specification:
| Product Name: | 3000 Pixels P5 Flexible and Foldable Madrix Module |
| Item No.: | ADY-A2020-3000-0505 |
| LED Source: | APA102-SMD2020-RGB, 3000led/pcs, 3000pixels/pcs |
| PCB: | 5mm black FPCB |
| IC Chip: | APA102 |
| Pins: | 4 Wires = 5V+, CLK, DATA, GND |
| View angle: | 170° |
| Voltage & Power: | DC 5V, 300w/pcs |
| Size: | 500x150x1.8(mm), Customized accept |
| Controller: | K-8000C, T-500K, H802RA, … |

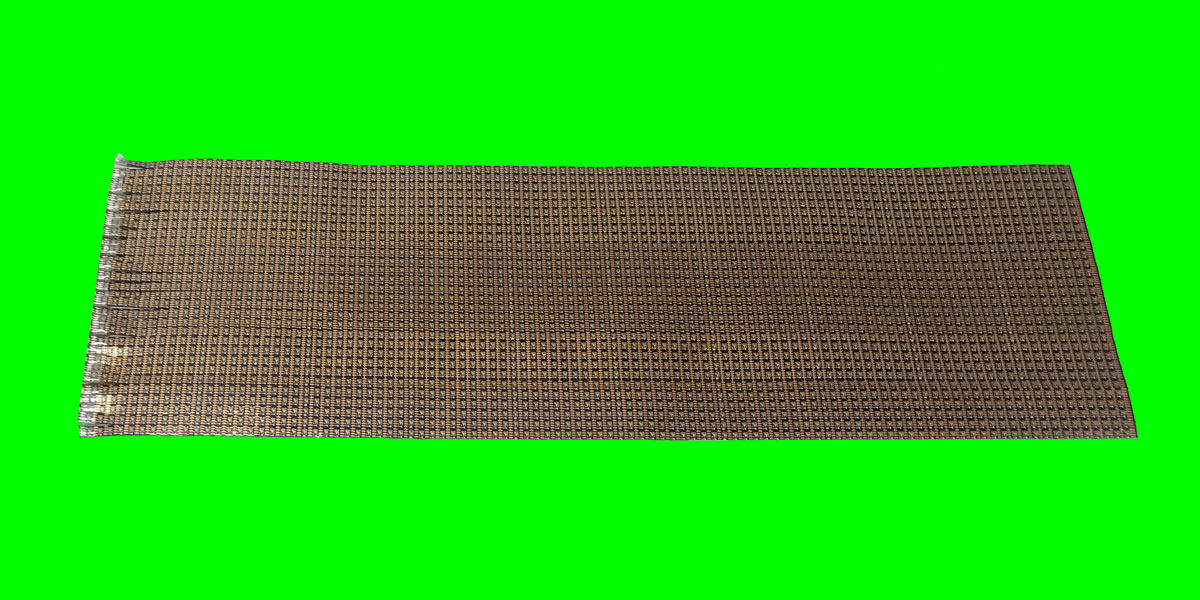

Photos:
APA102-2020 LED Chip:
1) APA102-2020 SMD LED is a new type of APA102 integrated led for three channels RGB color emitting.
2) It has very little size with 2.0×2.0×0.75(mm), which has much more advantage for the smaller than 5050 led with 5.0*5.0mm. many new applications will be available for the tiny size.
3) APA102 2020 also use the APA102 as the driver IC to control the color dimming. Also, high brightness too, for each apa102-2020 led is 0.1W.
4) It can be widely used in apa102 2020 digital RGB led strips, apa102 2020 dot star, also apa102 led pixels, and the full color led display.
