RGBW 4in1 Programmable Flex LED strip | SM16704 RGBW 4 Colors in 1
Overview:

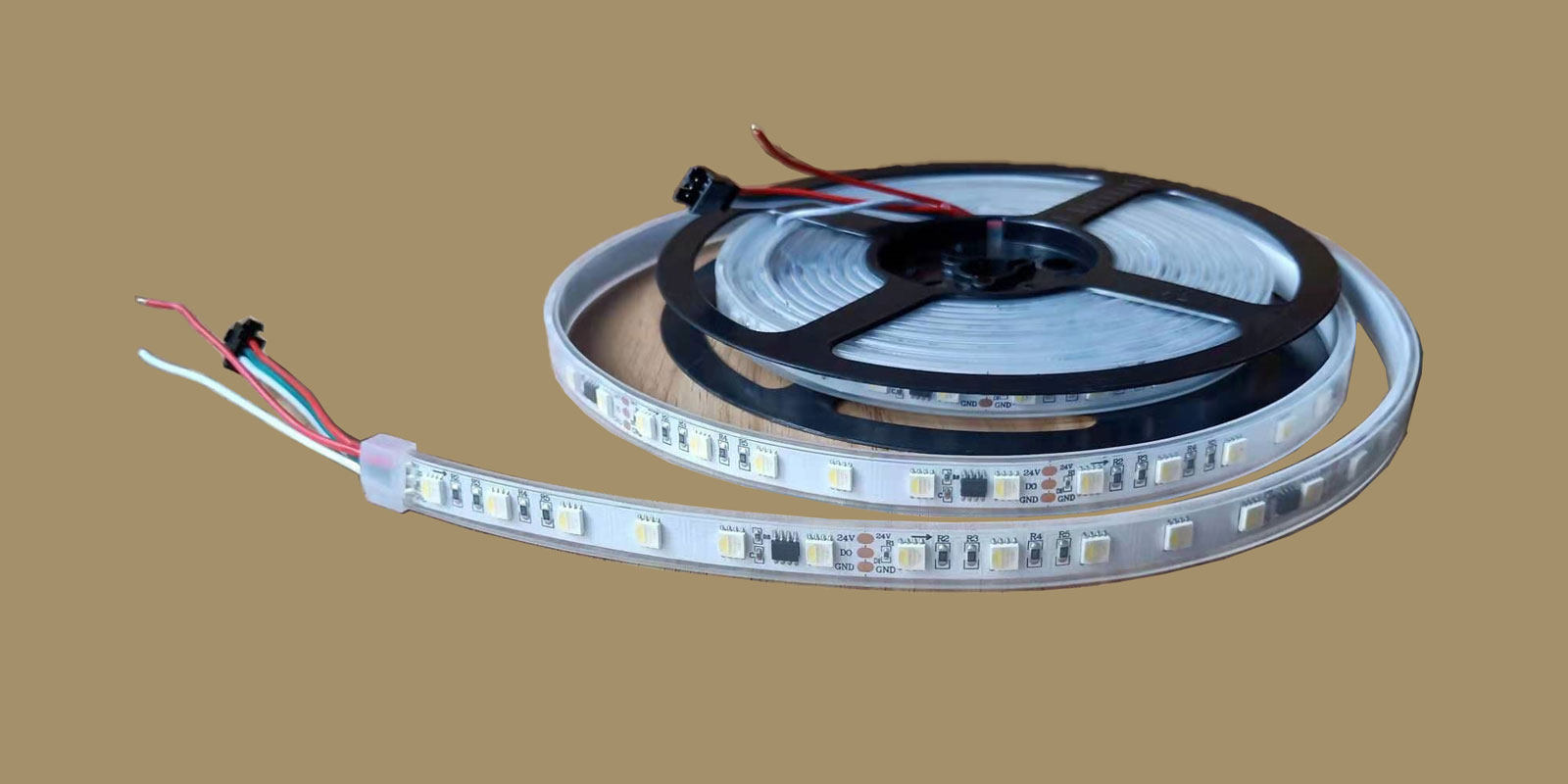

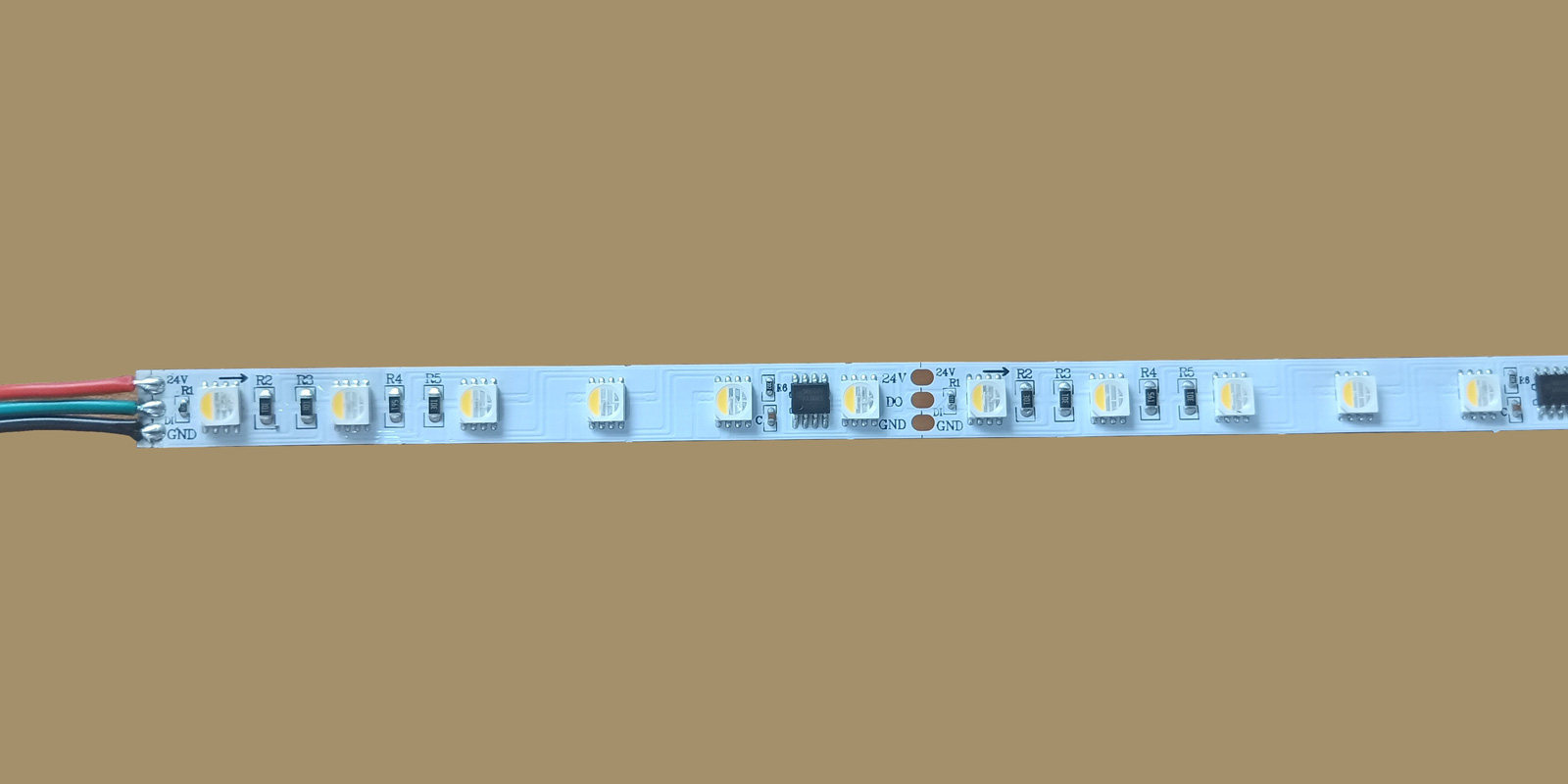

SM16704-RGBW 4 colors in 1 Addressable Flex led strips, 60led/m, Control IC built outside, 20pixel/m, 12V, 19.2w/m, 10mm white or black PCB, 15cm JST connector;
Technical parameter list: (12V/24V)
| Product Name: | SM16704 RGBW 4 Colors in 1 Addressable Flex LED strip |
| Product Model: | WTP-16704-60-1012 |
| PCB: | 10mm, black or white PCB, better heat dissipation and longer life span |
| LED Type: | White or black SMD5050, |
| LED Quantity: | 60LED/m, Each 3 LEDs separately control |
| Power Consumption: | DC12V, 19.2w/m, |
| Packing & Dimension: | 5000 x 10 x 2 mm / 5 meter per roll in a LED anti-static aluminum foil bag |
| Working Environment: | Working Temperature: -20℃～+45℃; Relative Humidity: 0 ~ 95% (no cold condensation) |
| Warranty: | 2 Years |
Features:
1) Addressable DC12V SM16704PK-5050-RGBW LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Absolutely addressable, SM16704PK IC built outside;
4) SM16704PK has 3 Wires input and output: Data, GND and Power+;
6) Three leds one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control 3 leds;
Applications:
1) Light up colorful home life, DIY household lights for hallways, stairs, trails ,windows.
2) Hotels decoration use,Theaters, clubs, shopping malls, festivals and performances use.
3) Architectural decorative lighting, Archway, canopy and bridge edge lighting, Security lighting and Emergency.
4) Extensively applied in Backlighting for signage letters, concealed lighting and advertisement sign lighting.
5) Applicable for automobile & Airplane model decoration, contour lighting or border.
Order info: (3000/4000/6000K for optional)
| SN | Model Number | LED and Pixel | PCB Width | Voltage | Power | Note |
| 1 | WTP-16704-60-1012 | 60led/m, 20Pixels/m | 10mm | 12V | 19.2w/m | IP20/IP65/IP67 |
| 2 | WTP-16704-60-1024 | 60led/m, 10Pixels/m | 10mm | 24V | 19.2w/m | IP20/IP65/IP67 |
