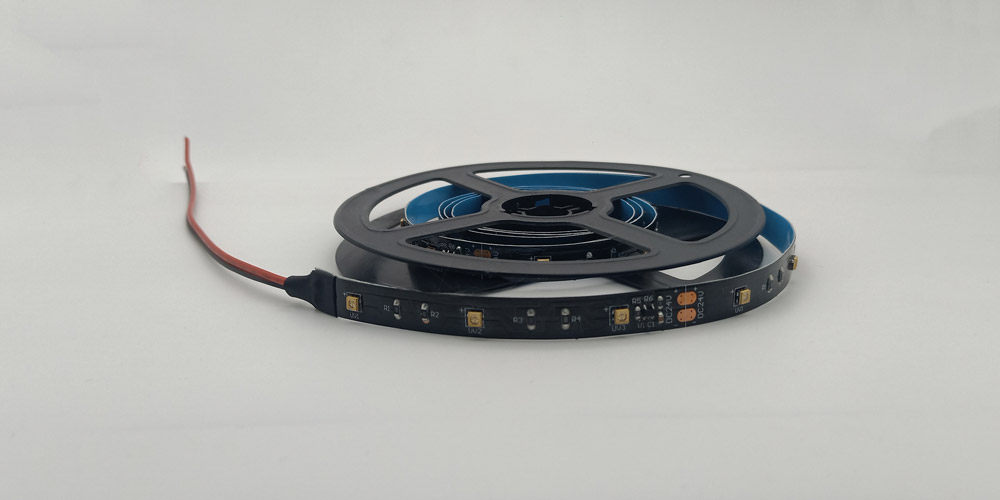

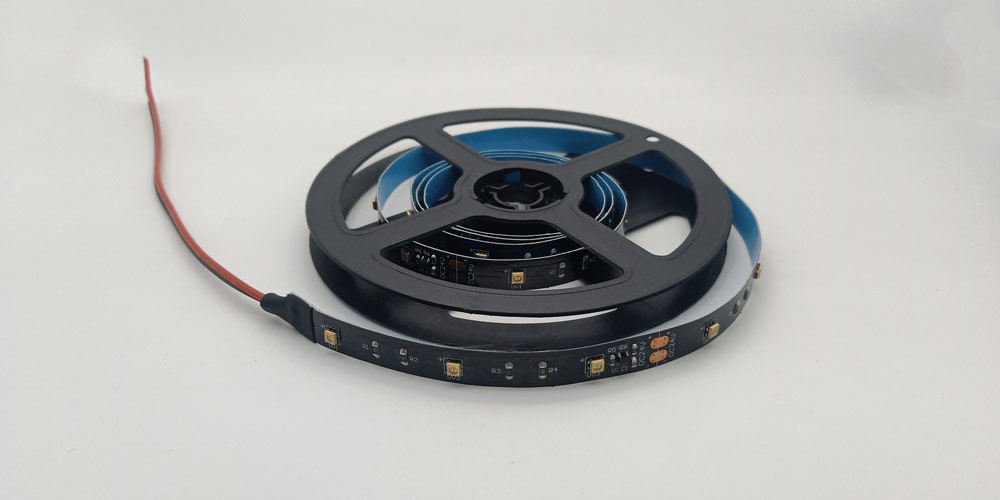

Flex UV-C LED Strip for Germicidal, Sterilization, and Disinfection Applications
Top keywords:
1) Fast lead time: only 2 working days for 100 meters order
2) Customized order support: OEM / ODM service supportAs a new generation of a green solid-state light source, LED flexible light bar has strong plasticity, long life, energy-saving, and environmental protection, and it is powered by low voltage, which has significant sterilization and disinfection effects. Superior performance and intelligent control make it have a wide range of applications.
Description:
270nm 280nm UVC + 390nm 400nm UVA LED strip for Sterilization & Disinfection Applications, SMD3535, UVC + UVA light, wavelength between 265nm to 280nm, 30led/m, DC24V, 11w/m, UVC Sterilization Power is 120-150mW/m, 10mm width white or black flex PCB, 5m/roll, Min. Cut length is 10cm, IP20.
Features:
1) Flex PCB base heat sink
2) Contains 30pcs UVC + UVA LED, Mounted,
3) Efficient: sterilization and disinfection effect can reach 99.9% in a short time
4) Energy saving: 80% energy saving compared to traditional cold cathode lamps
5) Environmental protection: common harmful substances in metal-free gas illuminating technology
6) The service life is up to 10,000 hours
7) Instant start, high frequency switch
8) Dimensions: 5000 x 10 x 2.5 mm (LxWxH)
9) Customized order support, OEM / ODM servece support

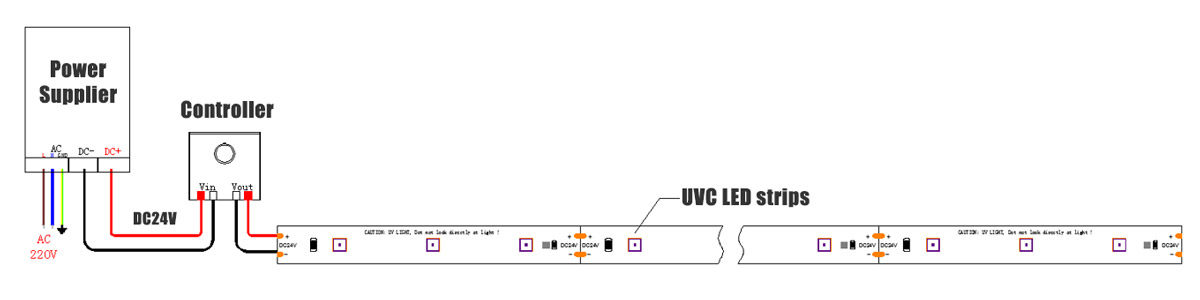

Wiring Diagram:
Product Info:
| Product Name: | 270nm 280nm Flex UV-C LED Strip + 390nm 400nm UVA LED strip |
| Item No.: | ADY-UVCA-30-1024F0 |
| LED Source: | SMD3535-UVC & UVA, 30led/m, |
| PCB | 10mm white/black FPCB |
| Cuttable length: | Min. 10cm |
| Pins: | 2 Wires = 24V+, GND |
| View angle: | 120° |
| Voltage & Power: | DC 24V, 11w/m |
| Size: | 5000x10x2.5(mm), 5m/roll or according to your requirements |
| UVC Sterilization Power: | 120-150mW/m |
Applications:
– Disinfection cabinets, Water dispensers, Air conditioners, Wardrobes, Kitchen cabinets, Storage rooms, Toilets, etc.,
– It also can be used for sterilization on the floors and walls of bars, clubs, living rooms, hospitals, mobile vehicles, hotels, and other places.
Warnings and Handling Instrutions:
UVC-LEDs is a invisible ultraviolet radiation when in operation, which may be harmful to eyes or skin, even for short periods. DO NOT look directly into the UV-LED during operation. Be sure that you and all persons in the vicinity wear adequate ” UVC ” Safety protection for eyes and skin. If you incorporate a UVC-LED into a product, be sure to provide WARNING labels.
