Promotion Price $5.9/m 840led/m Color Temperature Adjustable RA90 24VDC 15W 12mm FPCB COF LED Strips

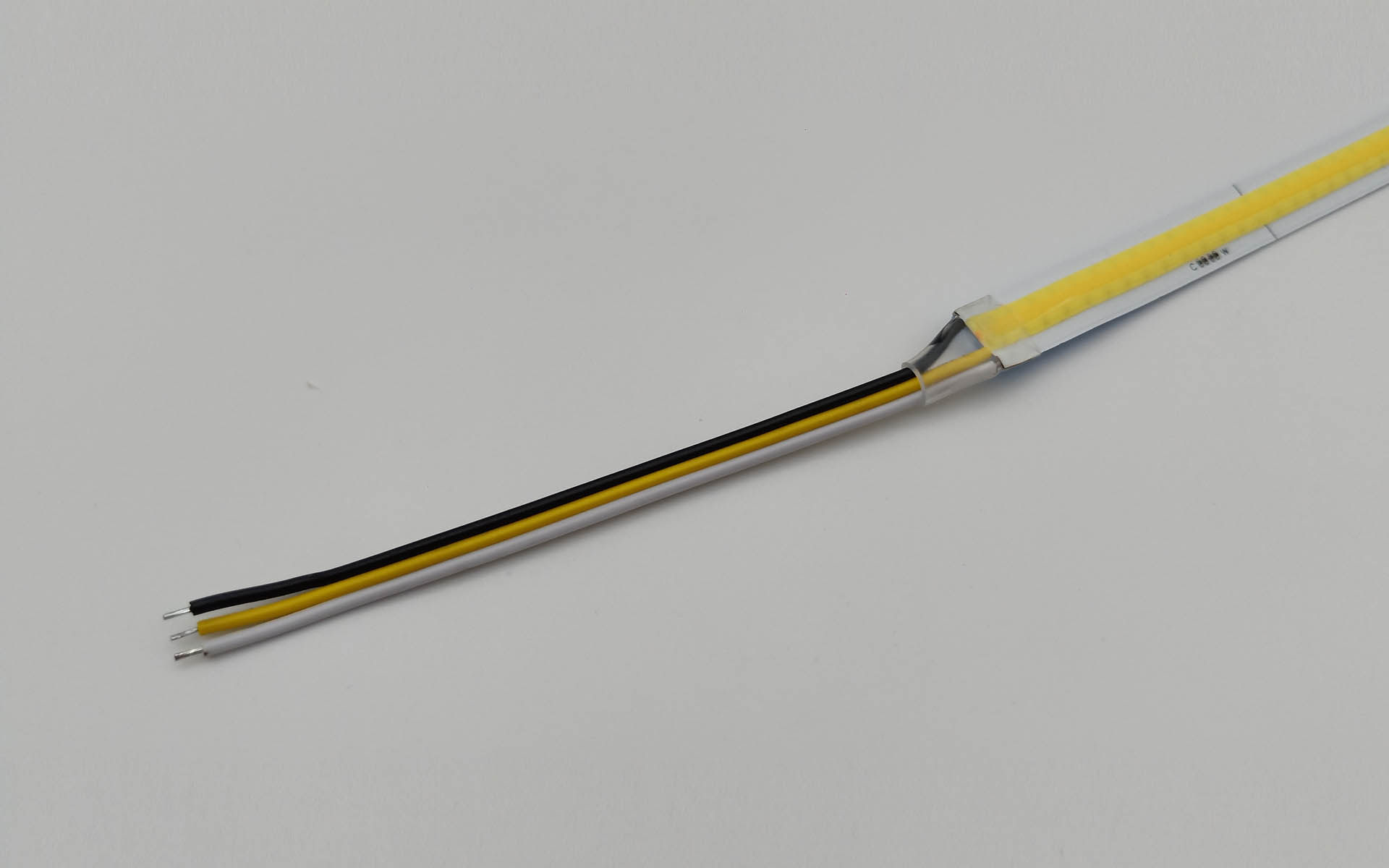

A flexible COB LED strips on promotion sale, Promotion Price $5.9/m 840led/m Color Temperature Adjustable RA90 24VDC 15W 12mm FPCB COF LED Strips, 3-Pin ordinary or waterproof connect wire output; high color efficiency, uniform illumination, can be bent freely, not easy to be a break and not affect the current.

Data sheet:

  Product:   840led CTA RA90 Flexible COB LED strips
  Item No.:    ADY-CTA-COB840-1024

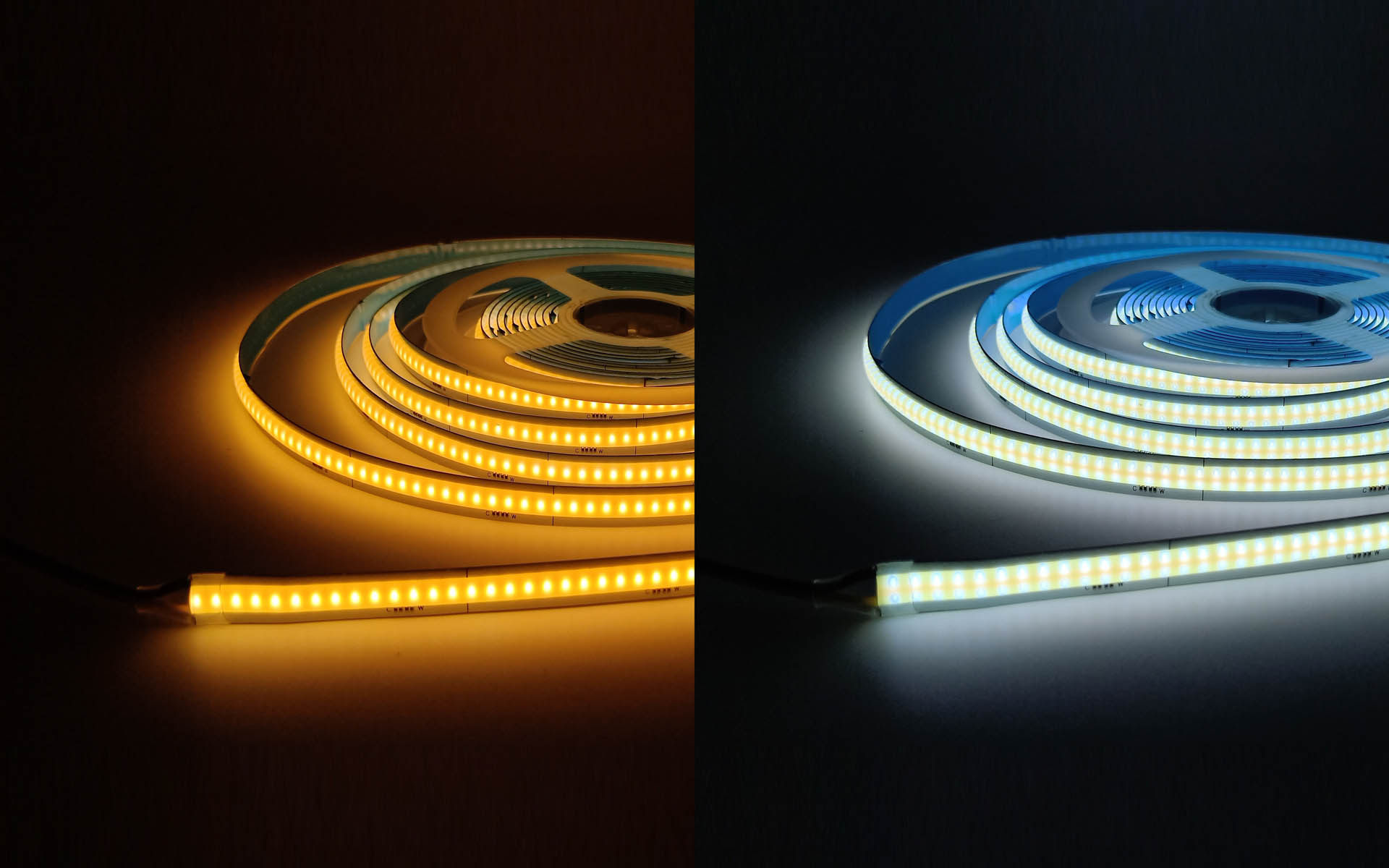

  LED:    COB, 840led/m, 420x3000K, 420x6500K, RA90, Color Temperature Adjustable
  View angle:   180°
  Waterproof Grade:   IP20
  Input voltage:   24V
  Power:   7.5+7.5=15.0w/m

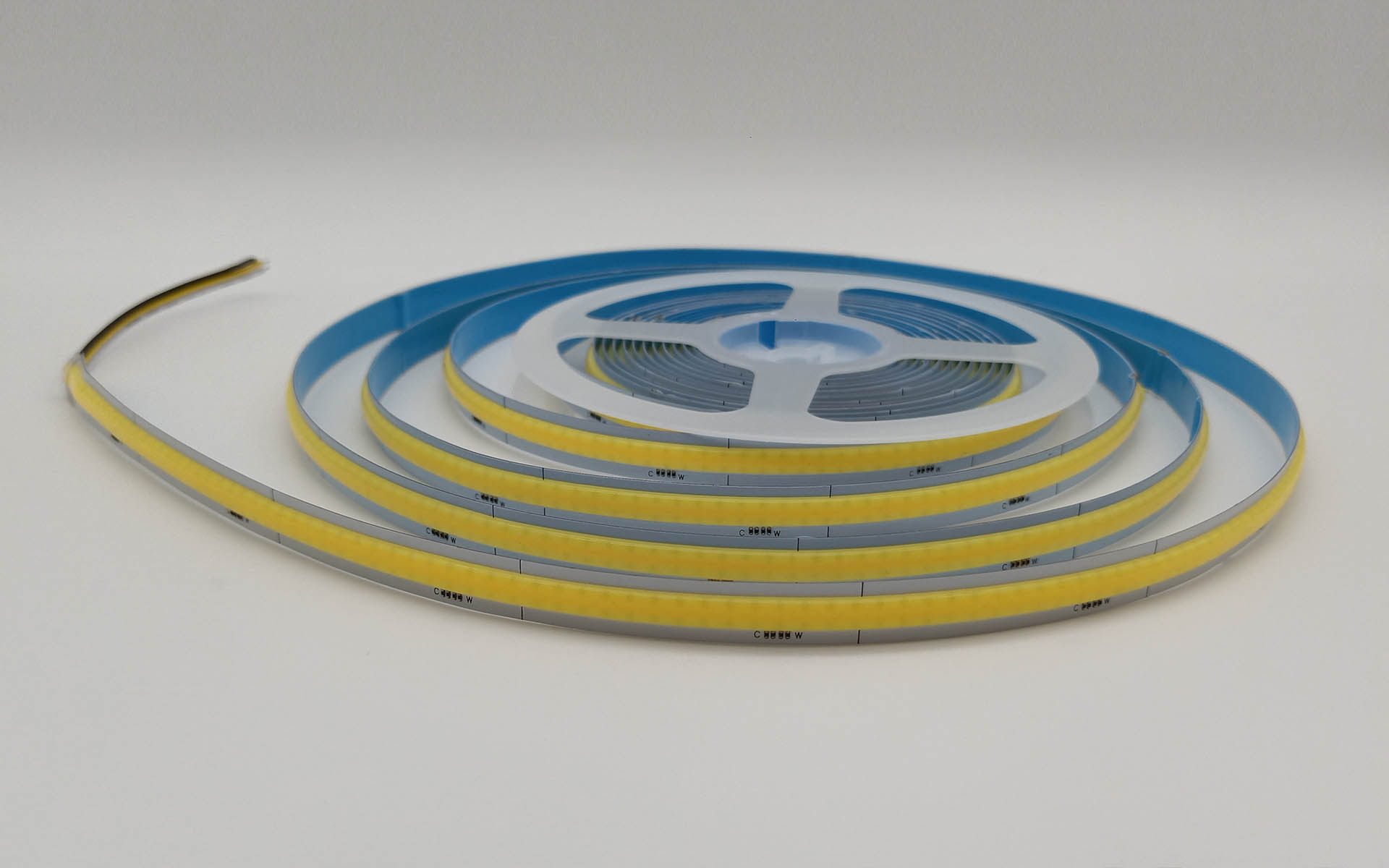

  Size:   5000x10x1.6(mm), 5m/roll



Advantages:

  • High efficiency > 100 LM/W;
  • Excellent Dot Free lighting performance
  • Good heat sink design: 2OZ double layer copper
  • Low energy consumption: 8W/M – 15W/m optional
  • High CRI >90 optional
  • Warranty: 3-year warranty available.
  • Cuttable at every —mm
  • Packing at 5m/roll, or 10m/roll, 50m/roll
  • No Light Dot 24v Cove Light False Ceiling Flexible COB LED Tapes
Solder-free fast wiring connectors
Solder-free fast wiring connectors

Application:

  • 1) Architectural decoration Lighting; Backing lighting for signage letters;
  • 2) Decoration lighting for under water project; Archway /Canopy & Bridge Edge Lighting;
  • 3) Auditorium walkway lighting, Amusement park / Theater lighting;
  • 4) Stairway Accent Lighitng, Channel letters lighting;
  • 5) Furniture Decoration Lighting; Cove Lighting etc;

What is COB?

COB (Chips on Board) , is a new technology of LED packaging for LED light engine. Multi LED chips are packaged together as one lighting module. When it light up, it looks like a lighting panel..

LED(light emitting diode) is new technology with advantage of saving energy and very long lifespan. But all LED lightsource can not be faultless especially SMD, HP, flux LED etc. Compare to traditional lighting such as fluorescent lamp, as it is super bright in a small size, it cause uncomfortable glare. In case of no diffused optical lens used, such LEDs usually cause glare and zebra strips . But when optical lens or cover used, it will cause light loss when LED beam pass through this lens or cover.
