Only white color but individually addressable 30/60/144 LEDs/m SK6812 digital LED strips

Only white color but individually addressable 30/60/144 LEDs/m SK6812 digital LED strips

Overview:

Pure white color SK6812 30/60/96/144 digital LED strips, Control IC built inside the LED, 5V, white or black PCB, 15cm JST connector;

Firstly, SK6812-5050-White, only one Color Temperatures,
Three color temperatures for optional, Natual White / Cool White / Warm White, 3000K | 4000K | 6000K
Secondly, DC 5V operating voltage,
Thirdly, Built-in IC Programmable, individually addressable;
Lastly, Smart Home Decoration, Atmosphere Light Strip

Data sheet:

  Product:  144 Pixels/m Pure white color SK6812 digital LED strips
  Item No.:   ADY-6812W-144-1205
  LED:   SK6812-5050-White, 144led/m
  View angle:  120°
  IC Chip:  SK6812
  Input voltage:  5V
  Power:  43.2w/m
  Size:  5000x12x2.0(mm), 5m/roll

Features:

1) Addressable DC5V SK6812 LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside a SMD5050-White LED;
4) SK6812 has 3 Pins input and output: Data, GND and Power+;
6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable; individually addressable white;

Application:

> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting

Remark:

1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

Order Info: (IP20/IP65/IP67/IP68):

SNModel Numberled/mPixel/mPCBPCB ColorVoltagew/m
1 ADY-6812Wx3030led/m3010mmWhite/Black5V9.0
2 ADY-6812Wx6060led/m6010mmWhite/Black5V18.0
3 ADY-6812Wx9696led/m9610mmWhite/Black5V28.8
4 ADY-6812Wx144144led/m14412mmWhite/Black5V43.2

Photos:

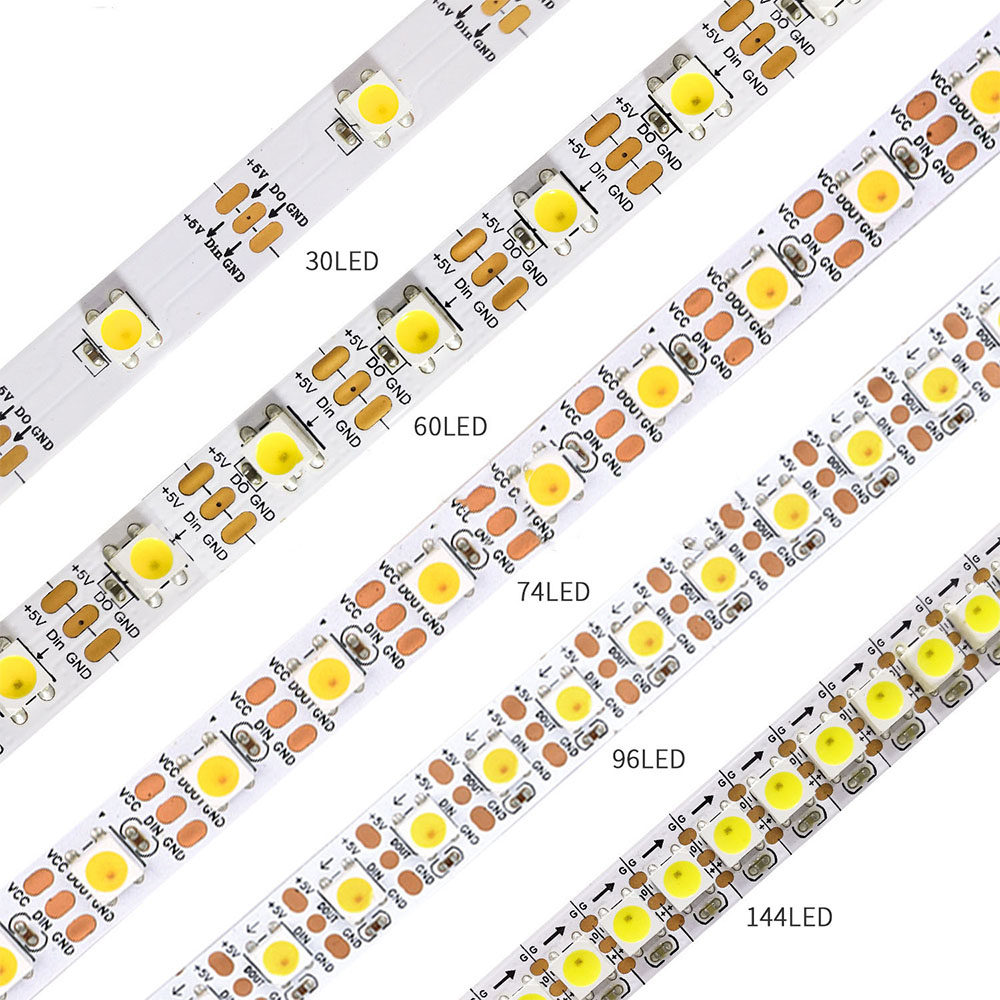

30 / 60 / 144LED/m | Only white color but individually addressable
only one Color Temperatures, Natual white / Cool White / Warm White, 3000K | 4000K | 6000K
