New 160led/m RA90 COB Flexible led strips

COB Flexi led tape

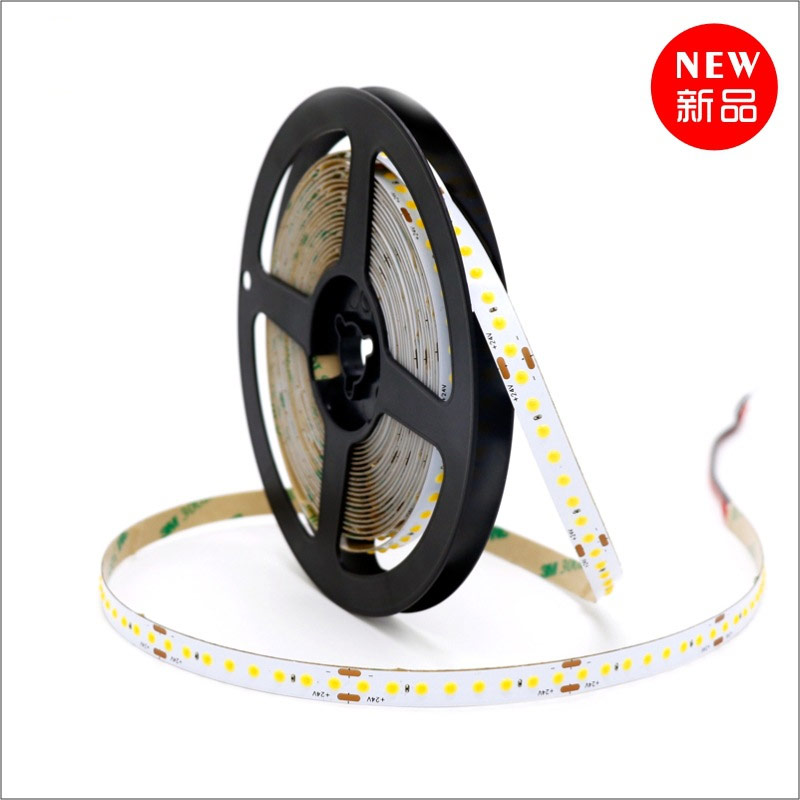

New 160led/m RA90 COB Flexible led strips

Overview:

New RA90 160led/m COB Flexible led strips, 160led/m, dot visible, DC12/24V, 8-10w/m, 8mm white PCB, CRI>90, 2700K-6500K for optional, 2-Pin ordinary or waterproof connect wire output; high color efficiency, uniform illumination, can be bent freely, not easy to be broke.

Data sheet:

  Product:   New 160led/m RA90 COB Flexible led strips
  Item No.:   ADY-COB-160-08xx
  LED:   COB LED, 160LEDs/m, RA90, 2700K, 3000K, 4000K, 6000K
  View angle:  160°
  IC Chip:  N/A
  Input voltage:  12V/24V
  Power:  12V8W / 24V10w/m
  Size:  5000x8x2.0(mm)

Features

1) High brightness, low light decay. lifespan>50,000 hours, 3-year warranty;
2) Pure color, CCT avaliable 2000-7000k. DC12V/24V, safe & low power consumption;
3) No light dot or spot; soft light, Arbitrarily bending, smaller bendable angle;
4) 180° view angle;
5) Easy to connect & install Free cuttable soft FPC;
6) Dustproof and water resistant IP65; Flexible ribbon for curving around bends;
7) Solid-state, high shock vibration resistant;
8) very good heat dissipation, better than the SMD2110/2216/2835 led strips.

Wiring Diagram & Size:

Size
Wiring diagram

Application:

  • 1) Architectural decoration Lighting; Backing lighting for signage letters;
  • 2) Decoration lighting for under water project; Archway /Canopy & Bridge Edge Lighting;
  • 3) Auditorium walkway lighting, Amusement park / Theater lighting;
  • 4) Stairway Accent Lighitng, Channel letters lighting;
  • 5) Furniture Decoration Lighting; Cove Lighting etc;

 Order info: (Color: White or R/G/B/Y)

 SN  Model Number LED PCB Width Voltage Power Waterproof
1   ADY-COB384-0824 384led/m 8mm 12V / 24V 10w/m IP20/IP65/IP67
2   ADY-COB512-0824 512led/m 8mm 12V / 24V 10w/m IP20/IP65/IP67
3   ADY-COB528-0824 528led/m 8mm 24V 10w/m IP20/IP65/IP67
4   ADY-COB528-0524 528led/m 5mm 24V 8w/m IP20/IP65/IP67

Photos

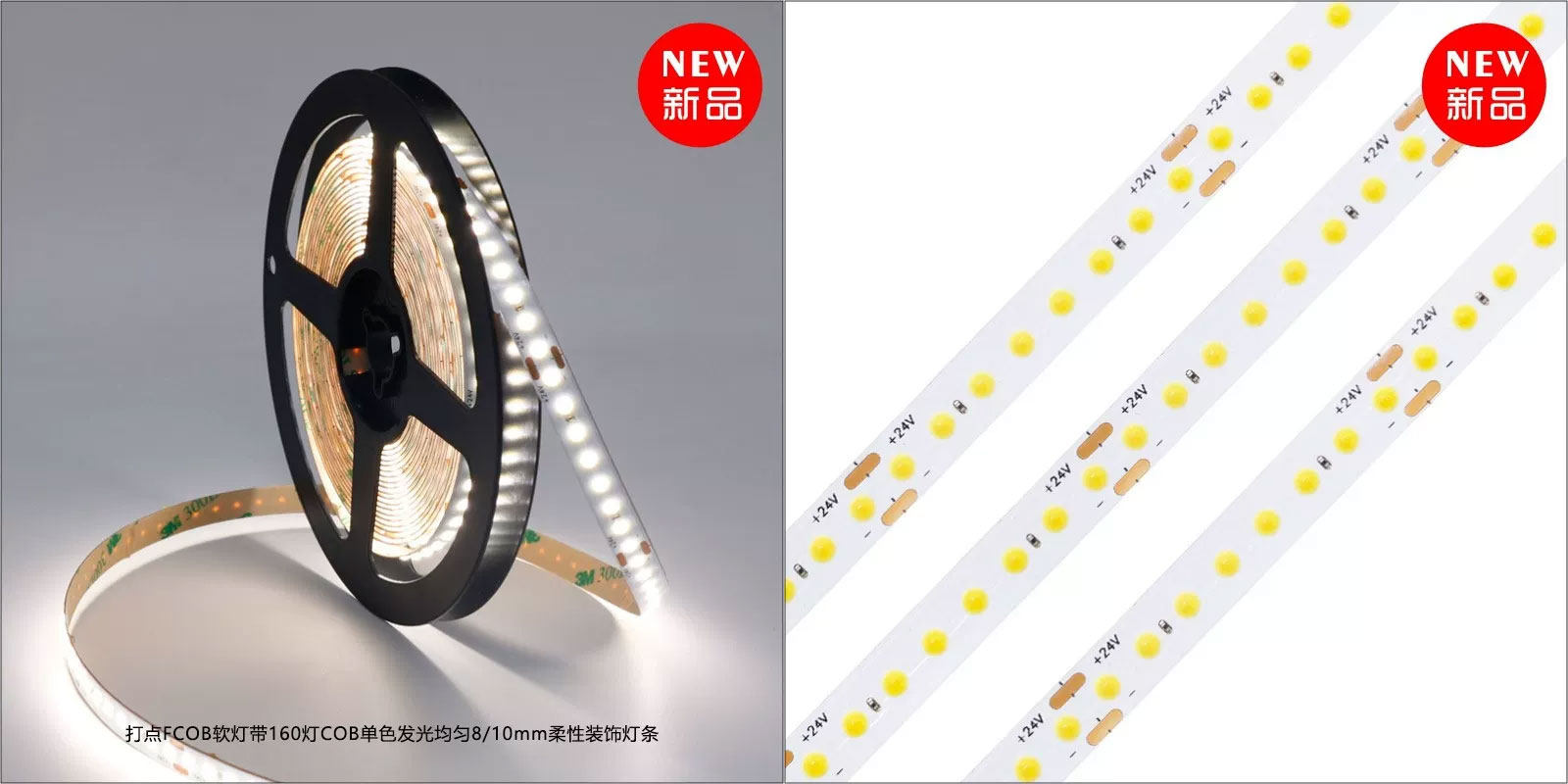

COB Flexible led strip
COB Flexible led strip
COB Flexible led strip
COB Flexible led strip

Download the specification | Free samples are available on request
