4mm PCB 90/120/200led/m WS2812C 2020 Digital LED Strip

4mm Width 200 Pixels/m LED Strip video show:

200 Pixels LED Strip SK6812-2020-RGB High Density

WS2812C-2020-RGB LED is a small size digital full-color built-in IC SMD, which has one SPI data and can be controlled by most SPI LED Controllers.

> 4mm width Super Narrow Flexible PCB
> High density, 200led/m, 200pixels/m, individual addressable
> Each LED is cuttable
> 5mm Small pitch

SK6812-2020-RGB-high-density-200-pixels-led-strip
Because the PCB is too small, we didn’t print the Pin Recognizing letters on the PCB

Specification:

Product Name: NEW High Density Small Pitch 3mm Width 200led/m WS2812 2020 Digital LED Strip
Item No.:ADY-2812-2020-200-0405
LED Source: WS2812-2020-RGB, 200led/m, 200pixels/m
PCB4mm white FPCB
IC Chip:WS2812C
Pins: 3 Wires = 5V+, DATA, GND
View angle:170°
Voltage & Power:DC 5V, 18w/m
Size:2000x4x1.5(mm), 2m/roll or according to your requirements
Controller:  SP105e, K-1000C, SD card controller, DMX controller, Ardunio and others, etc…

Packing: 1 meter/pcs

APA102 2020 RGB 6A

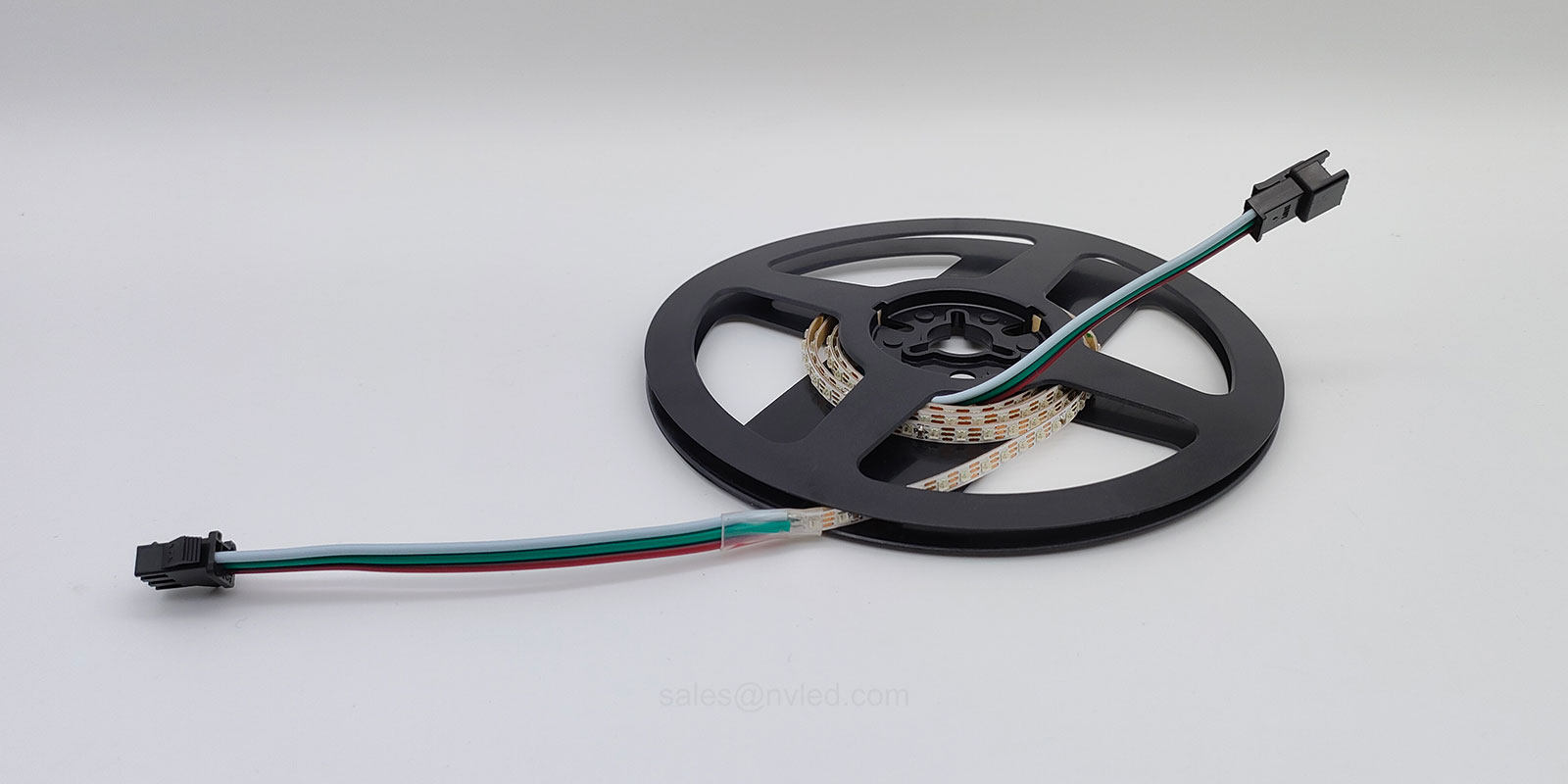

1 meter per roll or 2 meters per roll

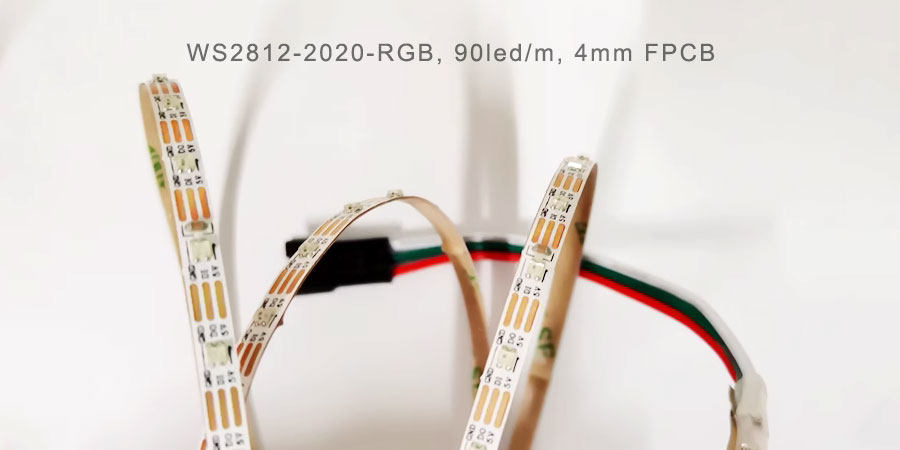

4mm Width 90Pixels/m Individual Programmable Mini WS2812C Digital LED Tape

WS2812 2020 RGB 90LED/M

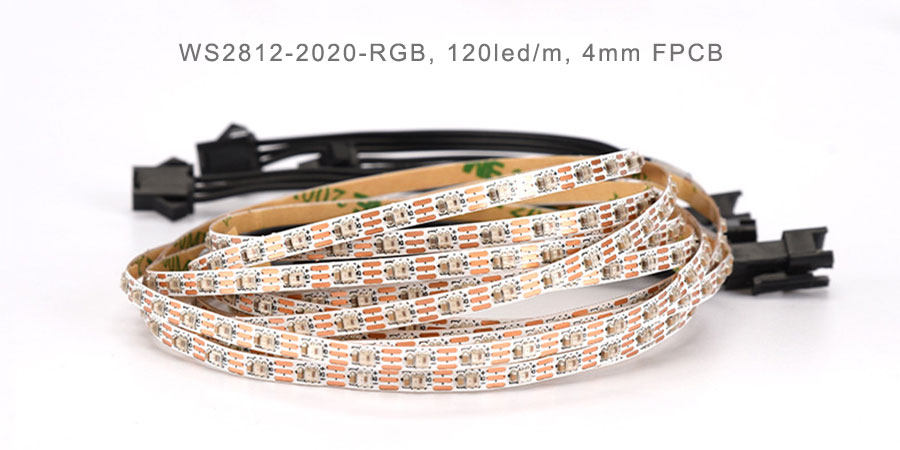

4mm Width 120Pixels/m Individual Programmable Mini WS2812C Digital LED Tape

WS2812 2020 RGB 120LED/M

4mm Width 200Pixels/m Individual Programmable Mini WS2812C Digital LED Tape

WS2812 2020 RGB 200LED/M

Features:

  • Firstly: Individual controlable / addressable / programmble
  • Secondly: High density, 200 pixels per meter
  • Thirdly: Mini Size, 4 mm white FPCB
    Lastly: Small picth, 5 mm pitch
WS2812 2020 High Density 200 Pixels LED Strip
200 Pixels LED Strips
3MM WIDTH SUPER NARROW LED STRIPS
SK6812 2020 RGB Mini Size LED
FPCB width is 4mm

Wiring Diagram:

Refer to: APA102 2020 Customized High Density Programmable Dream Color 125led Rigid LED Strip

We have two versions of the WS2812C 200pixels LED strips, one is 3mm FPCB, and the other one is with 4mm PCB
We have two versions of the WS2812C 200pixels LED strips, one is 3mm FPCB, and the other one is with 4mm PCB

Features of the SK6812-2020-RGB LEDs:

The appearance of the LED WS2812-2020-RGB

WS2812C-2020-V1 is an intelligent externally controlled LED light source that integrates a control circuit and light-emitting circuit; its appearance adopts the latest molding packaging technology, and the IC and light-emitting chip are packaged in a 2020 package size. It is a pixel; the pixel contains an intelligent digital interface data latch signal shaping and amplifying drive circuit, as well as a high-precision internal oscillator and a programmable constant current control part, which effectively ensures that the color of the pixel light is highly consistent.

WS2812 2020 VS WS2812 5050

The data protocol adopts the single-line return-to-zero code communication method.
Port scanning frequency up to 2KHz, no flicker phenomenon will appear under the capture of the high-definition camera, very suitable for high-speed movement Use of the product; RESET time of more than 280μs, the interruption will not cause a false reset, can support lower frequency, cheap MCU; LED has low voltage drive, environmental protection, and energy-saving, high brightness, large scattering angle, good consistency, The advantages of ultra-low-power and ultra-long life. By integrating the control circuit on the LED, the circuit becomes simpler, the volume is smaller, and the installation is easier.
