8.33mm Pitch One LED one Cut 120led/m SMD2835 Flex LED Strip


Focus keyphrase: One LED one cut

2835 120 Leds/M 5mm PCB Warm White LED Strip
8.33mm Pitch each LED is cuttable 120led/m SMD2835 Flex LED Strip

1 LED 1 Cut Flex LED strips:

  Product:  8.33mm Pitch One LED one Cut 120led/m SMD2835 Flex LED Strip
  Item No.:   ADY-2835-120-0512-1D1C
  LED:   120 x SMD2835
  View angle:  120°
  Cut length:  5mm FPCB, cut length is 8.33mm
  Input voltage:  12V
  Power:  4.8w/m
  Size:  5000x5x1.5(mm), 5m/roll

Features:

> Every LED is cuttable, 100% Brand New.
> Super bright 2835SMD top LED, high intensity and reliability.
> Continuous length, packed with 5 meter.
> Cuttable every marked along the cutting marks, according to practical requirement.
> Long life span 50,000+ hours
> Flexible ribbon for curving around bends
> Low power consumption
> Completely smooth and even light spread, solving the uneven luminous problem
> Ultra-bright but running at low temperature
> High brightness, low power, long life, easy installation, the production of highly customizable,
> Easy for transporting, decorative effect is brilliant, energy saving, environmental protection.

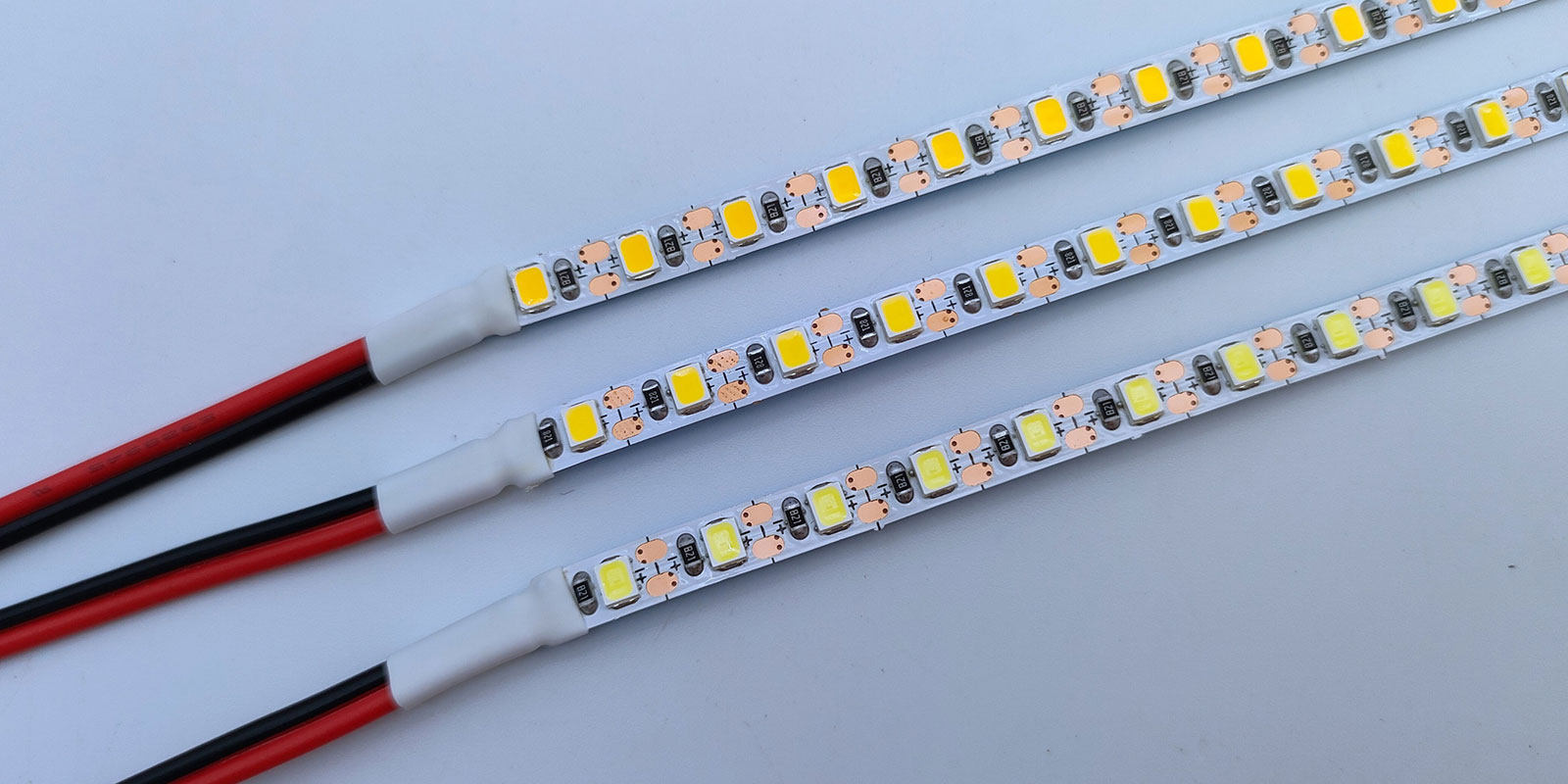

Photos show:

3000K, 4000K and 6000K
3000K, 4000K and 6000K
Warm white, natual white and cold white
Warm white, natual white and cold white
5 meters per roll
5 meters per roll
8mm width FPCB
8mm width FPCB

You are free to order the following SMD 2835 Flex led strips:

 SN  Model No.  Description  Marks
  1  ADY-2835-120-0512-1D1C  SMD2835, 120LED/m, 12V, 4.8w/m, 5mm white PCB  One LED one Cut
  2  ADY-2835-120-0524-1D1C  SMD2835, 120LED/m, 24V, 4.8w/m, 5mm white PCB  Optional CRI: 80, 90, 95
  3  ADY-2835-120-0812-1D1C  SMD2835, 120LED/m, 12V, 4.8w/m, 8mm white PCB
  4  ADY-2835-120-0824-1D1C  SMD2835, 120LED/m, 24V, 4.8w/m, 8mm white PCB

1) Optional CRI: 80, 90, 95
2) Optional Color temperature: 1800K to 6500K
3) Optional Voltage: 5V/12V/24V/36V/48V
4) Optional Power: 0.03w/led to 0.20w/led
5) Optional Waterproof grade: IP20, IP65, IP67, IP68
6) Constant current: Powered at one side, keep same brightness from the begin to the end in a certain length.
