3oz Thick FPCB High-density 180led/m SMD2835 Flex LED Strip

2835 120 Leds/M 5mm PCB Warm White LED Strip
High-density 180led/m SMD2835 Flex LED Strip

1 LED 1 Cut Flex LED strips:

  Product:  3oz Thick FPCB High-density 180led/m SMD2835 Flex LED Strip
  Item No.:   ADY-2835-180-0824A3
  LED:   180 x SMD2835
  View angle:  120°
  Cut length:  10mm FPCB, 6LED/cut,
  Input voltage:  24V
  Power:  4.8-12w/m
  Size:  5000x10x1.5(mm), 5m/roll

Features:

1) High CRI up to 96 (High CRI version).
2) High efficiency of 160lm/w (High-efficiency version).
3) High output up to 3000 lm/m (CRI80+ version).
4) Available in 5V, 12V and 24V.
5) Fully dimmable.
6) The width of FPCB is available in 3mm, 5mm, 8mm, 10mm, and the other width.
7) 50,000-hour lifespan (8 hours/day for 17 years);
8) 3-year warranty.

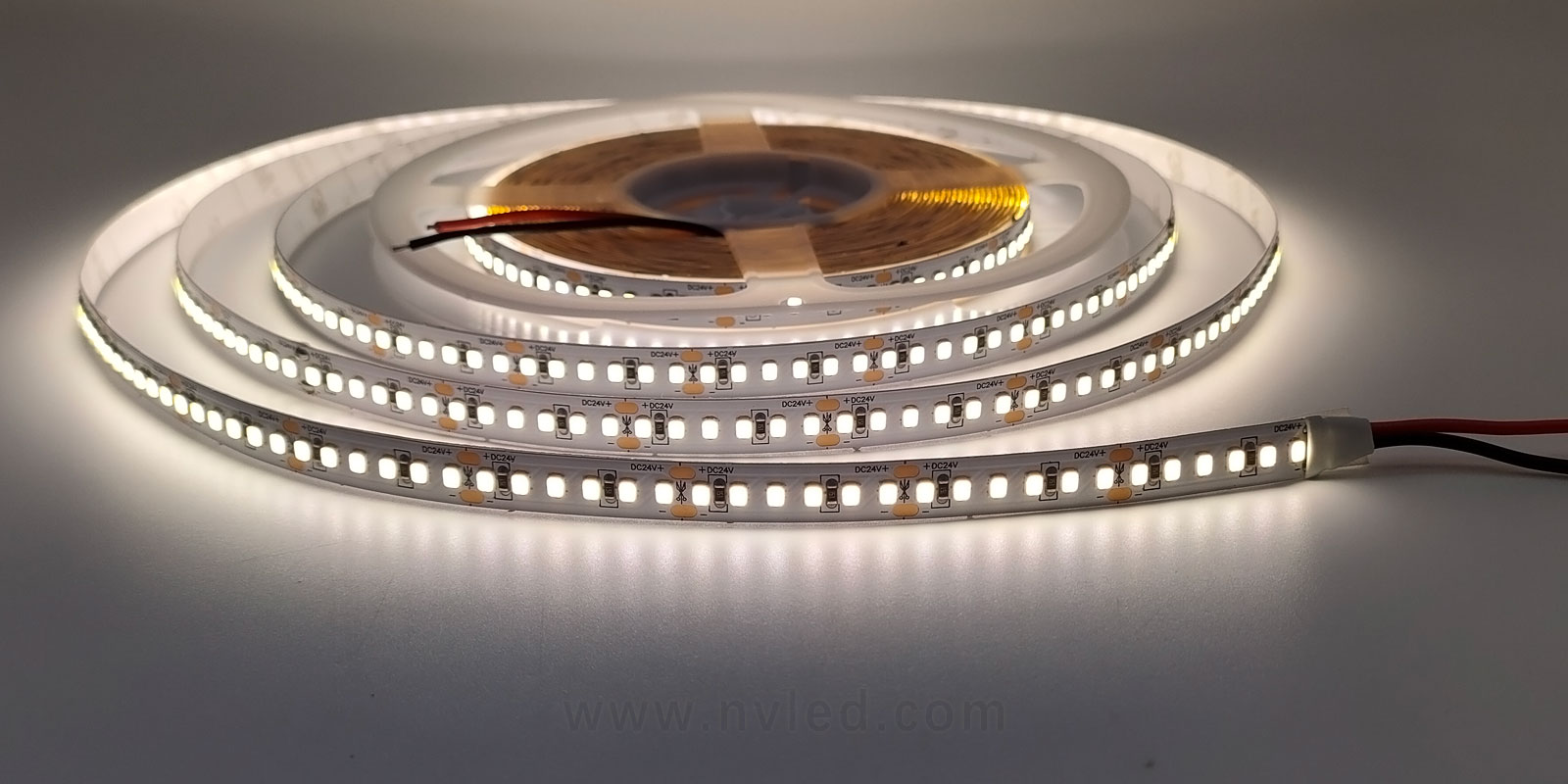

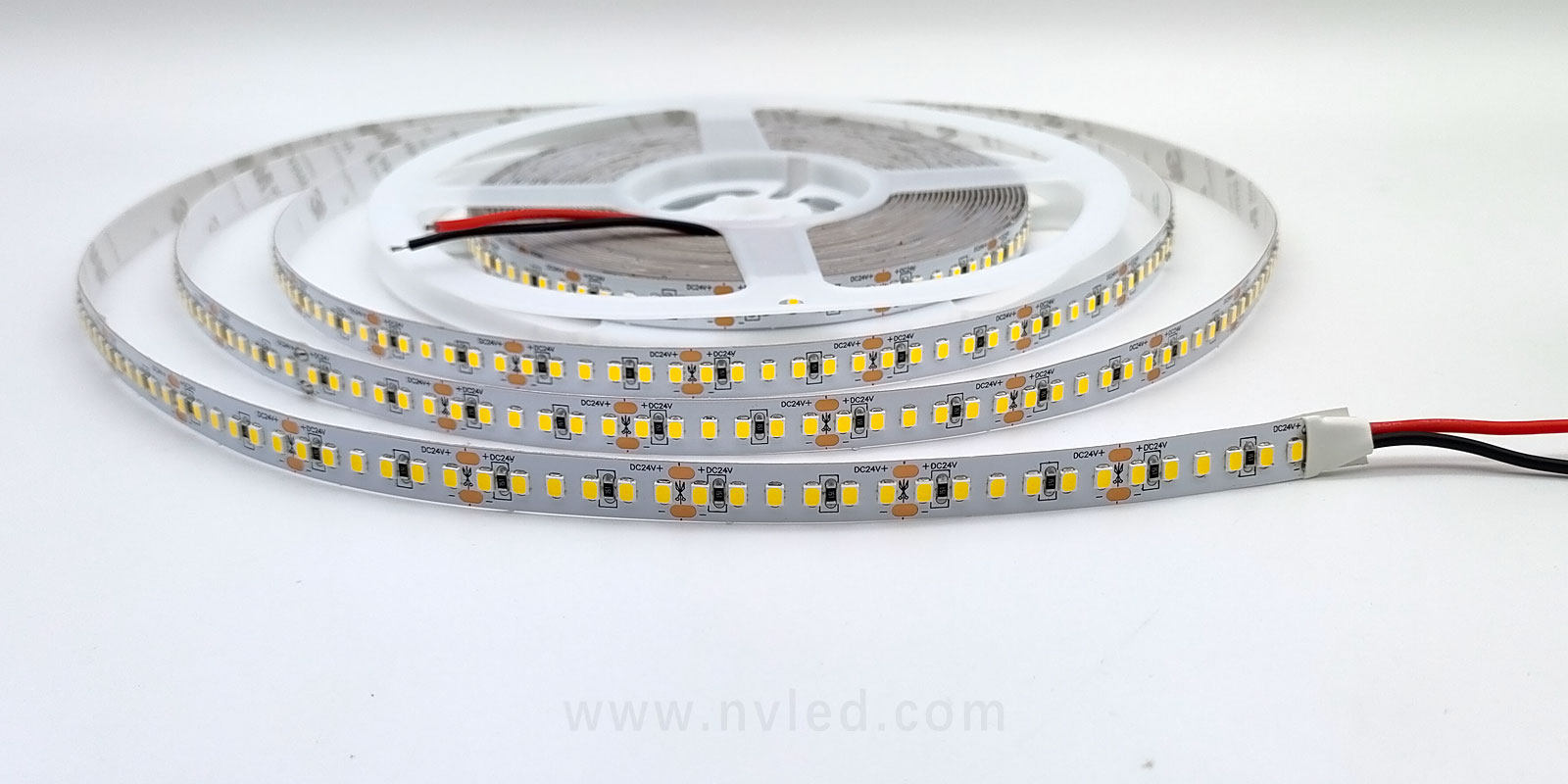

Photos show:

3000K, 4000K and 6000K
3000K, 4000K and 6000K
Warm white, natual white and cold white
Warm white, natual white and cold white
12 colors for optional: Warm white, Natual white, Cold white, Red, Green, Blue, Yellow, Pink, Ice blue, Violet, Orange, Lemon Yellow.

You are free to order the following SMD 2835 Flex led strips:

SPNLEDLED/mCRIColorVoltagew/mPCBCut LengthWaterproof
ADY-2835-120-0524DC SMD2835 120 80/90WW | NW | CWDC 24V6 5mm 8.33mm IP20
ADY-2835-120-0812DC SMD2835 120 80/90 WW | NW | CWDC 12V 6 8mm8.33mm IP20
ADY-2835-120-0824DC SMD2835 120 80/90 WW | NW | CWDC 24V 6 8mm 8.33mm IP20
ADY-2835-120-0812XX SMD2835 120 12 colorsDC 12V 6 8mm 25mm IP20
ADY-2835-120-0824XX SMD2835 120 12 colorsDC 24V 6 8mm 50mm IP20
ADY-2835-120-0824M20 SMD2835 120 80/90 WW | NW | CWDC 24V 6 8mm 41.7mm IP20
ADY-2835-120-0824P7 SMD2835 120 80/90 WW | NW | CWDC 24V 6 8mm 50mm IP67
ADY-2835-120-0824P8 SMD2835 120 80/90 WW | NW | CWDC 24V 6 8mm 50mm IP68
ADY-2835-120-0824A3 SMD2835 120 80/90 WW | NW | CWDC 24V 12 8mm, 3oz 50mm IP20
ADY-2835-180-1024A3 SMD2835 180 80/90 WW | NW | CWDC 24V 14.4 10mm, 3oz 33.3mm IP20

1) Optional: RA80, RA90, RA95, 1800K to 6500K, 5V/12V/24V/36V/48V, IP20, IP65, IP67, IP68
2) Constant current: Powered at one side, keep same brightness from the begin to the end in a certain length.
