5mm or 8mm Dual Color Temperatures CCT 192LED SMD2835 Flex LED Strip

Focus keyphrase: 192led

2835 120 Leds/M 5mm PCB Warm White LED Strip
192led/m CCT SMD2835 Flex LED Strip

1 LED 1 Cut Flex LED strips:

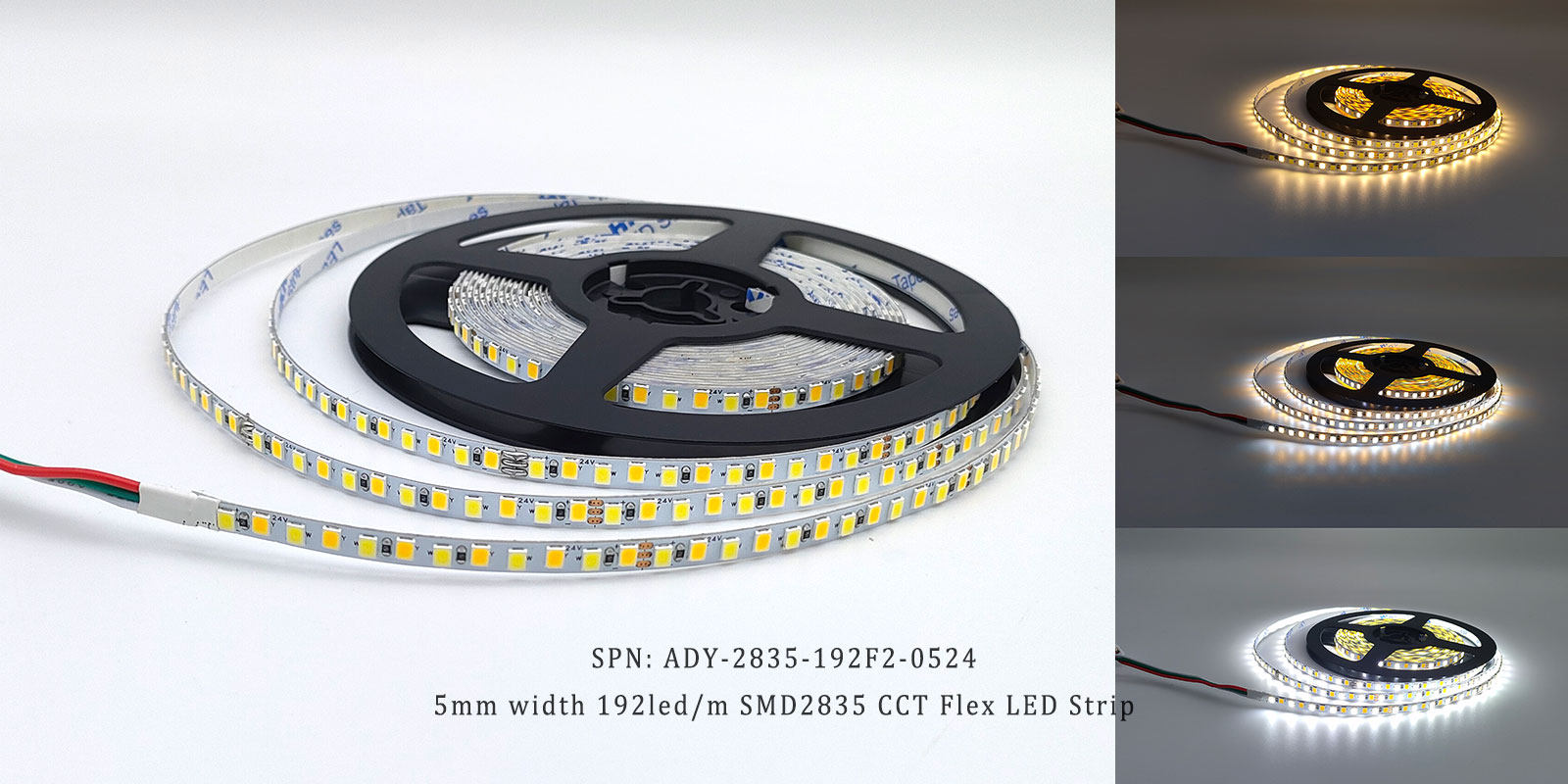

  Product:  5mm Dual Color Temperatures CCT 192LED SMD2835 Flex LED Strip
  Item No.:   ADY-2835-192F2-0524
  LED:   192 x SMD2835 (96x 2800K, 96x 6500K)
  View angle:  120°
  Cut length:  5mm FPCB, 6LED/cut,
  Input voltage:  24V
  Power:  14w/m
  Size:  5000x5x1.5(mm), 5m/roll


1) High CRI up to 96 (High CRI version).
2) High efficiency of 160lm/w (High-efficiency version).
3) High output up to 3000 lm/m (CRI80+ version).
4) Available in 5V, 12V and 24V.
5) Fully dimmable.
6) The width of FPCB is available in 3mm, 5mm, 8mm, 10mm, and the other width.
7) 50,000-hour lifespan (8 hours/day for 17 years);
8) 3-year warranty.

Spectrum Test Reports of ADY-2835-120-0824A3 LED strips:

WW 3000K
NW 4000K
CW 6750K

Photos show:

3000K, 4000K and 6000K
8mm FPCB vs 5mm FPCB
Warm white, natual white and cold white
Warm white, natual white and cold white
Color Temperature Adjustable from 2800K to 6500K

You are free to order the following SMD 2835 Flex led strips:

SPNLEDLED/mCRIColorVoltagew/mPCBCut LengthLED/Seg.
ADY-2835-120F2-0812 SMD2835 120 80/902800K – 6500KDC 12V7.2 8mm 50mm6
ADY-2835-192F2-0524 SMD2835 195 80/902800K – 6500KDC 24V 14 5mm62.5mm12
ADY-2835-192F2-0824 SMD2835 192 80/902800K – 6500KDC 24V 14 8mm 62.5mm12
ADY-2835-240F2-1024 SMD2835 240 80/902800K – 6500KDC 24V 16 10mm 50mm12
ADY-5050-60F2-1024 SMD2835 60 80/902800K – 6500KDC 24V 12 10mm 100mm6
ADY-5050-120F2-1024 SMD2835 120 80/902800K – 6500KDC 24V 16 10mm 50mm6

1) Optional: RA80, RA90, RA95, 1800K to 6500K, 5V/12V/24V/36V/48V, IP20, IP65, IP67, IP68
2) Constant current: Powered at one side, keep same brightness from the begin to the end in a certain length.
