Dream Color SK6812 30/60/96/144 WWA digital led strips
Dream color SK6812 30/60/96/144 WWA digital led strips:
Dream color SK6812 30/60/96/144 WWA digital led strips, Control IC built inside the LED, 5V, white or black PCB, 15cm JST connector;
Firstly, SK6812 WWA 3 Color Temperatures, Amber / Cool White / Warm White,
Secondly, DC 5V operating volatege,
Thirdly, Built-in IC Programmable,
Lastly, Smart Home Decoration, Atmosphere Light Strip
Data sheet:
| Product: | 144LEDs/m Dream color SK6812 WWA digital led strips |
| Item No.: | ADY-6812WWA-144-1205 |
| LED: | WS6812-SMD5050-WWA, 144led/m |
| View angle: | 120° |
| IC Chip: | SK6812 |
| Input voltage: | 5V |
| Power: | 143.2w/m |
| Size: | 5000x12x2.0(mm), 5m/roll |
Features:
1) Addressable DC5V SK6812 LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;

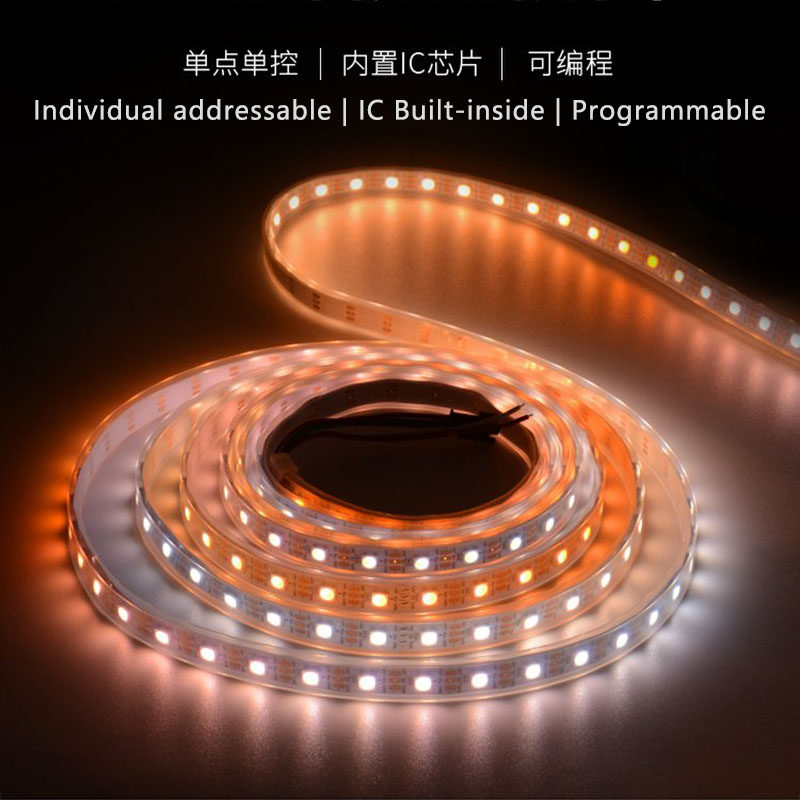

3) Absolutely addressable, each IC built inside a SMD5050-WWA LED;
4) SK6812 has 3 Pins input and output: Data, GND and Power+;
6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable;
Application:
Widely used for home decoration use, hotels, clubs, shopping malls
Architectural decorative lighting, boutique atmosphere lighting
Extensively applied in background lighting, concealed lighting, channel letter lighting
Emergency & security lighting, advertisement sign lighting
Decorative lights for holiday, event, show exhibition
Applicable for automobile and bicycle decoration, border or contour lighting
Remark:
1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

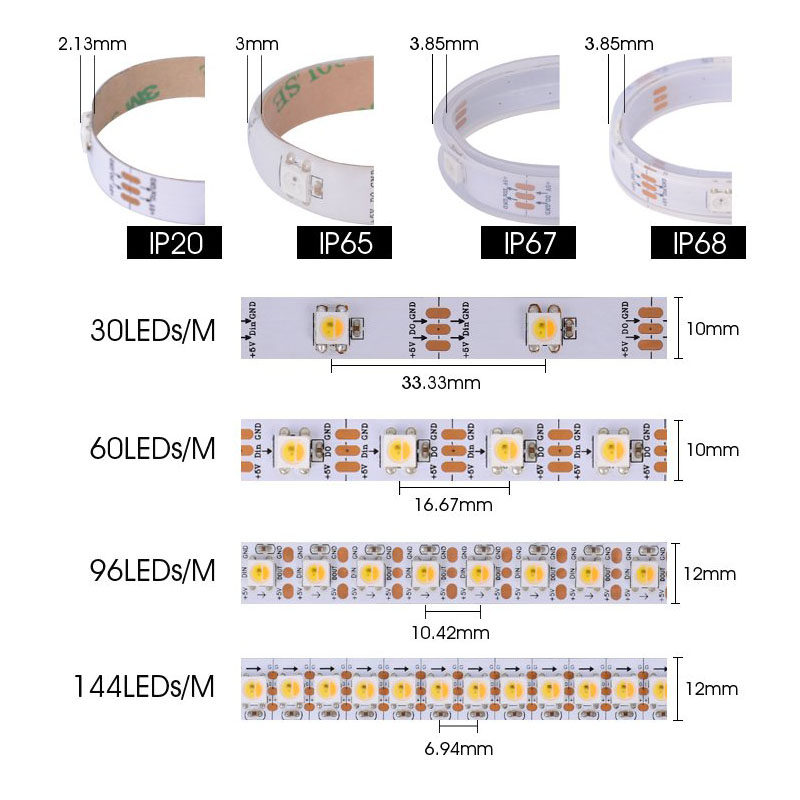

Order Info: (IP20/IP65/IP67/IP68):
| SN | Model Number | LED Qty | Pixel/m | PCB | Color | Voltage | w/m |
| 1 | ADY-6812WWA-30-1005 | 30led/m | 30 | 10mm | W/B | 5V | 9.0 |
| 2 | ADY-6812WWA-60-1005 | 60led/m | 60 | 10mm | W/B | 5V | 18.0 |
| 3 | ADY-6812WWA-96-1005 | 96led/m | 96 | 10mm | W/B | 5V | 28.8 |
| 4 | ADY-6812WWA-144-1205 | 144led/m | 144 | 12mm | W/B | 5V | 43.2 |
Photos:
