Full color Flex LED strip | CS8812 | DC12V 60leds/m 2-Data Pin
Overview: (Eg. 60LED/m )

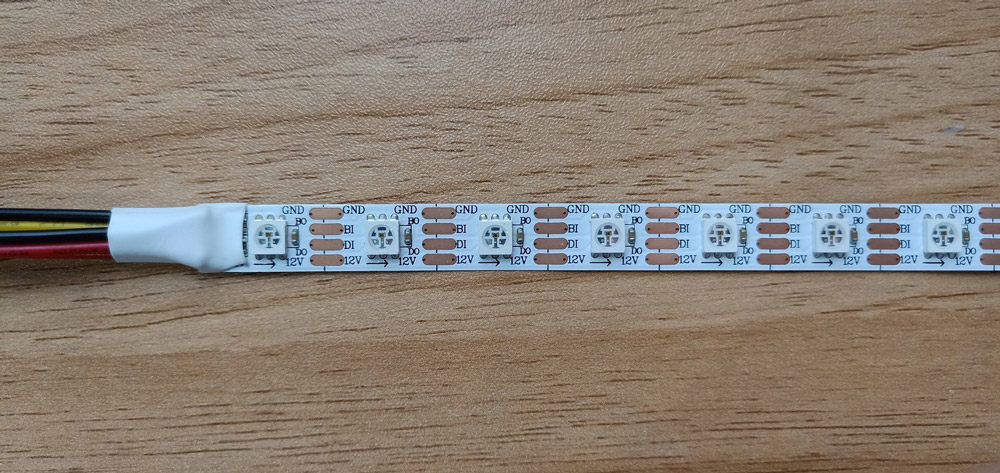

CS8812 Individual Addressable and breakpoint continue Flex led strips, 60led/m, Control IC built inside the LED, 60pixel/m, 12V, 14.4w/m, 10mm white or black PCB, 15cm JST connector;
Technical parameter list: (Eg. 60LED/m)
| Product Name: | Full color Flex LED strip | CS8812 | DC12V 60leds/m 2-Data Pin |
| Product Model: | CS8812-60-IP20 / CS8812-60-IP65 / CS8812-60-IP67 |

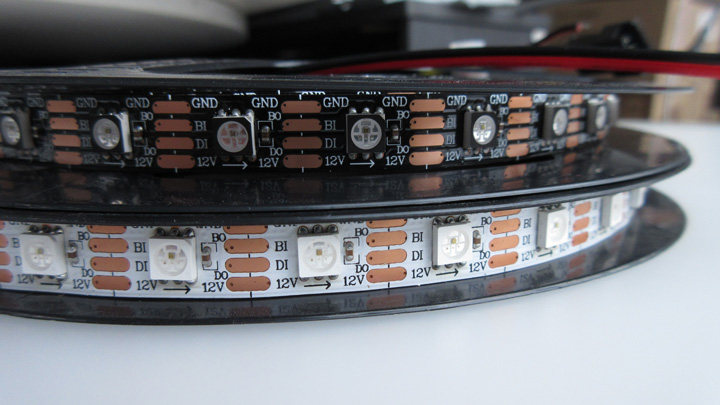

| PCB: | 10mm, black or white PCB, better heat dissipation and longer life span |
| LED Type: | White or black SMD5050, digital microcontroller inside |
| LED Quantity: | 60LED/m, Each LED separately control |
| Power Consumption: | DC12V, 14.4w/m, |
| Packing & Dimension: | 5000 x 10 x 2 mm / 5 meter per roll in a LED anti-static aluminum foil bag |
| Working Environment: | Working Temperature: -20 ℃～+45 ℃; Relative Humidity: 0 ~ 95% (no cold condensation) |
| Warranty: | 2 Years |
Breakpoint continue: (one led died, the rest led will keep working)
Features:
1) Addressable DC12V CS8812 LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside a SMD5050-RGB LED;
4) CS8812 has 4 Wires input and output: Datax2, GND and Power+;
6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable;
9) Digital Strip with breakpoint continue, Interrupt compatibility, one led dead, the next leds will keep working;
Product Applications:
1) Light up colorful home life, DIY household lights for hallways, stairs, trails ,windows.
2) Hotels decoration use,Theaters, clubs, shopping malls, festivals and performances use.
3) Architectural decorative lighting, Archway, canopy and bridge edge lighting, Security lighting and Emergency.
4) Extensively applied in Backlighting for signage letters, concealed lighting and advertisement sign lighting.
5) Applicable for automobile & Airplane model decoration, contour lighting or border.
Order info:
| SN | Model Number | LED Qty | PCB Width | Voltage | Power | Note |
| 1 | ADY-8812-30-1012 | 30led/m | 10mm | 12V | 7.2w/m | IP20/IP65/IP67/IP68 |
| 2 | ADY-8812-60-1012 | 60led/m | 10mm | 12V | 14.4w/m | IP20/IP65/IP67/IP68 |
| 3 | ADY-8812-100-1012 | 100led/m | 10mm | 12V | 24.0w/m | IP20/IP65/IP67/IP68 |
| 4 | ADY-8812-144-1212 | 144led/m | 12mm | 12V | 34.5w/m | IP20/IP65/IP67/IP68 |
Full series digital led strips:
1) Digital led strips with IC built inside the SMD chip:
1.1) Individual controllable, 5V operate voltage: WS2812b, SK6812, SK6812-RGBW
1.2) Individual controllable, Breakpoint continue, 5V operate voltage: WS2813,CS2803

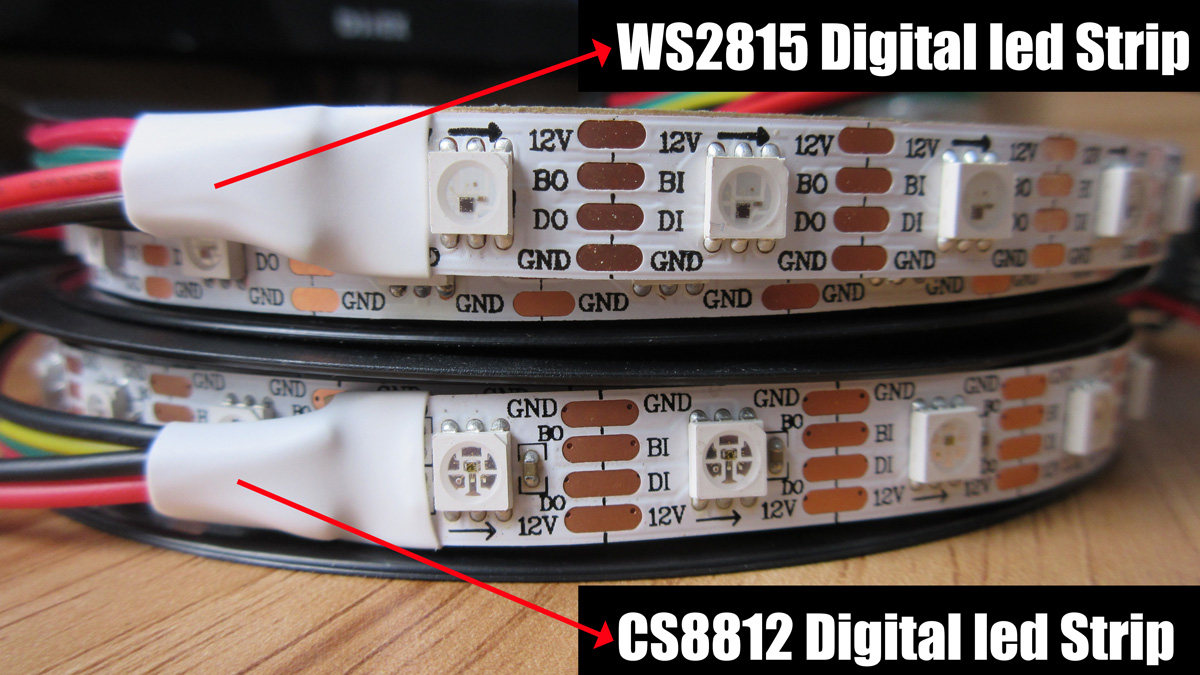

1.3) Individual controllable, Breakpoint continue, 12V operate voltage: WS2815,CS8812
1.4) Individual controllable, Clock SPI, 5V operate voltage: APA102,SK9822
1.5) Individual controllable, Breakpoint continue, 12V/24V operate voltage: DMX512 digital led strip: CS512A1
2) Digital led strips with IC plant outside:
2.1) One IC one pixel one control point, 5-24V: WS2811,UCS1903,16703,GS8205,TM1814-RGBW
2.2) One IC one pixel one control point, 5-24V: TM1812-RGBCCT,LPD8806-RGBCCT
2.3) One IC one pixel one control point, Breakpoint continue, 5-24V: TM1914,WS2818,GS8206
2.4) One IC one pixel one control point, Clock SPI, 5-24V: WS2801,LPD8806,16726
2.5) One IC one pixel one control point, Breakpoint continue, 5-24V: DMX512 digital led strip: UCS512-C4,UCS512-B3
