Addressable Flex LED strip | TM1814 RGBW 4 Colors in 1 | DC12V 60leds 14.4w 10mm PCB 20Pixels
Overview:
> 12V: TM1814-RGBW 4 colors in 1 Addressable Flex led strips, 60led/m, 20pixel/m, 12V, 14.4w/m, 10mm white or black PCB, JST-3Pin connector;
> 24V: TM1814-RGBW 4 colors in 1 Addressable Flex led strips, 60led/m, 10pixel/m, 24V, 14.4w/m, 10mm white or black PCB, JST-3Pin connector;
Technical parameter list: (12V/24V)
| Product Name: | TM1814 RGBW 4 Colors in 1 Addressable Flex LED strip |
| Product Model: | ADY-1814-60F4-1012 |
| PCB: | 10mm, black or white PCB, better heat dissipation and longer life span |
| LED Type: | White or black SMD5050, |
| LED Quantity: | 60LED/m, Each 3 LEDs separately control |
| Power Consumption: | DC12V, 14.4w/m, |
| Packing & Dimension: | 5000 x 10 x 2 mm / 5 meter per roll in a LED anti-static aluminum foil bag |
| Working Environment: | Working Temperature: -20 ℃～+45 ℃; Relative Humidity: 0 ~ 95% (no cold condensation) |
| Warranty: | 2 Years |
Features:
1) Addressable DC12V TM1814-RGBW LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Absolutely addressable, TM1814 IC built outside;
4) TM1814 has 3 Wires input and output: Data, GND and Power+;
6) Three leds one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control 3 leds;
Product Applications:
1) Light up colorful home life, DIY household lights for hallways, stairs, trails ,windows.
2) Hotels decoration use,Theaters, clubs, shopping malls, festivals and performances use.
3) Architectural decorative lighting, Archway, canopy and bridge edge lighting, Security lighting and Emergency.
4) Extensively applied in Backlighting for signage letters, concealed lighting and advertisement sign lighting.
5) Applicable for automobile & Airplane model decoration, contour lighting or border.
Order info: (3000/4000/6000K for optional)
| SN | Model Number | LED and Pixel | PCB Width | Voltage | Power | Note |
| 1 | ADY-1814-60F4-1012 | 60led/m, 20Pixels/m | 10mm | 12V | 14.4w/m | IP20/IP65/IP67 |
| 2 | ADY-1814-60F4-1024 | 60led/m, 10Pixels/m | 10mm | 24V | 14.4w/m | IP20/IP65/IP67 |

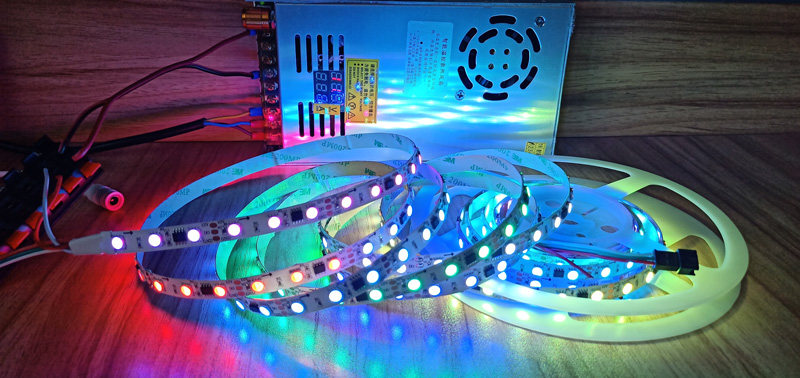

Photos:
