Tiny PCB 4mm Width RA95 SMD2110 Flex LED Strip Series 280led/m

Tiny PCB 4mm Width RA95 SMD2210 Flex LED Strip Series 280led/m



Tiny PCB 4mm Width RA95 SMD2110 Flex LED Strip Series 280led/m


Overview:

Tiny PCB 4mm Width RA95 SMD2110 Flex LED Strip Series 280led/m, Small size LED, 24V, white PCB, the ideal replacement of normal 2216, 3528 and 3014; It is available in pure white, warm white and cool white. 6led (24v dc) as a group and can be cuttable by different length which has the 3M adhensive tape at the back of the strips.

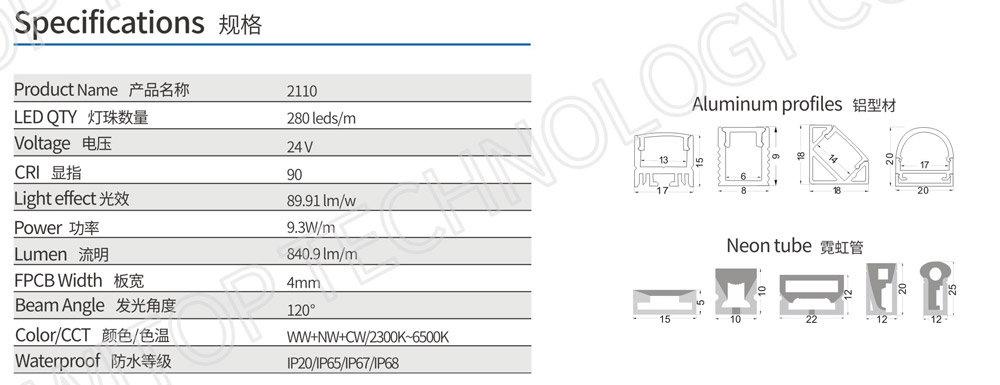

Data sheet:

  Product:   Tiny PCB 4mm Width RA95 SMD2110 Flex LED Strip Series 280led/m
  Item No.:    WTP-2110X280-24V
  LED:    SMD2110-White, 280led/m
  View angle:   120°
  Waterproof Grade:   IP20,IP50,IP65,IP66/IP67/IP68
  Input voltage:   24V
  Power:   9.3w/m
  Size:   5000x4x2.0(mm), 5m/roll

Features

1) Small size: SMD2110 CRI90+ SMD LED components have small size 2.1×1.0mm, much smaller than 3528(3.5×2.8mm) and 3014(3.0×1.4mm)
2) Strong body: SMD2110 CRI 90+ flexible LED strips have very strong body, stable better than SMD2216
3) Design flexibility: SMD2110 CRI90+ flexible LED strip can made to 60LED/meter, 120LED/m, 240LED/m, 300LED/m, max 700LED/meter.
4) Better color consistency and high CRI: SMD2110 CRI90+ flexible LED strips apply only One small bin LED for every shipment, have better good color consistency than 3528 and 3014.
6) Very competitive price: SMD2110 CRI 90+ flexible LED strips have very competitive price than 3528 and 3014.

Application:

> Applicated in linear lighting, home/bar/Christmas decorating, showcase exhibiting.
> It is widely used for indoor decoration, signs, back lighting and led lighting, etc.
> Waterproof LED strips for furniture decorating

Remark:

1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

Tiny PCB 4mm Width RA95 SMD2210 Flex LED Strip Series 280led/m

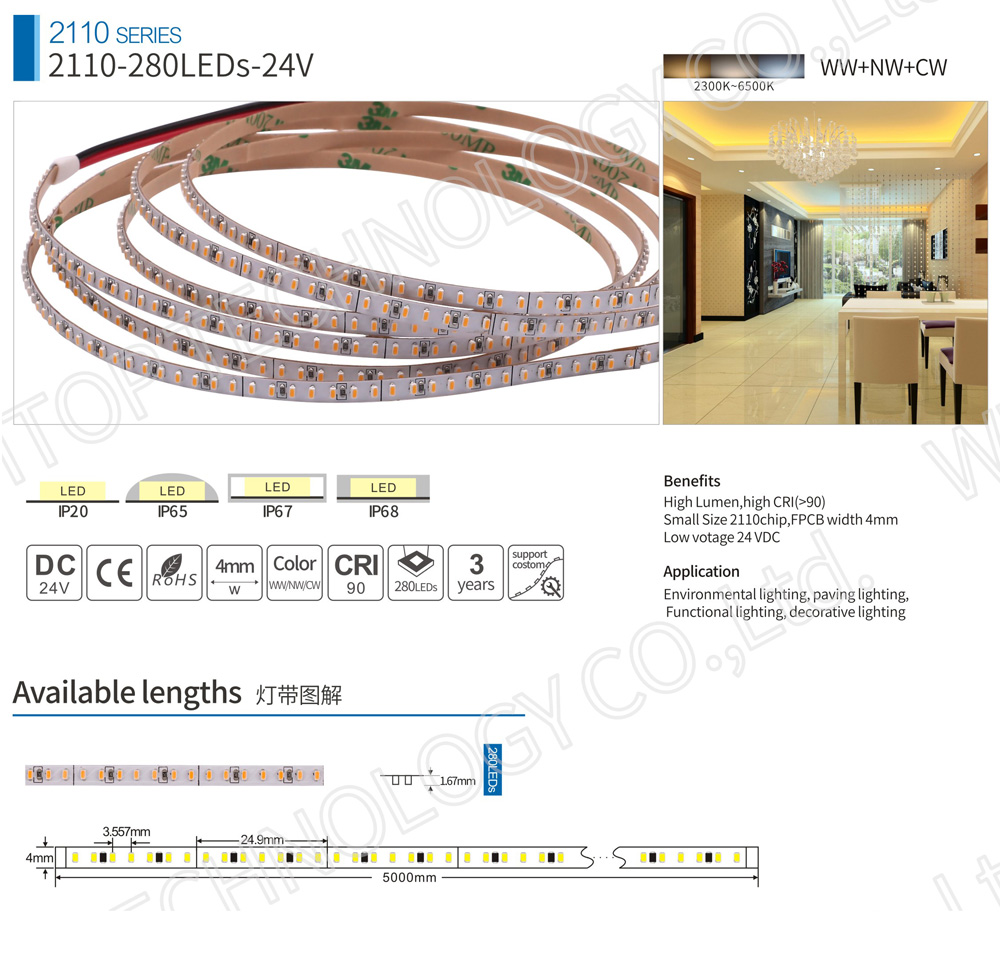

Photos

Tiny PCB 4mm Width RA95 SMD2110 Flex LED Strip Series 280led/m

Tiny PCB 4mm Width RA95 SMD2110 Flex LED Strip Series 280led/m
