Individual Addressable RGB LED Strip | 60 Pixel | IP68 SK6812 5070 RGB Waterproof Digital LED Light

Individual Addressable RGB LED Strip | 60 Pixel | IP68 SK6812 5070 RGB Waterproof Digital LED Light

Overview:

Individual Addressable RGB LED Strip | 60 Pixel | IP68 SK6812 5070 RGB Waterproof Digital LED Light, 60led/m, Control IC built inside the LED, 60pixel/m, 5V, 18.0w/m, 10mm white or black PCB, 15cm JST connector;

Data sheet:

  Product:   IP68 SK6812-SMD5070-RGB Individual Addressable RGB LED Strip
  Item No.:    WTP-6812X60-5V-IP68
  LED:    SK6812-SMD5070-RGB, 60led/m
  View angle:   150°
  IC Chip:   SK6812
  Input voltage:   5V
  Power:   18.0w/m
  Size:   5000x12x2.5(mm), 5m/roll

Features:

1) Addressable DC5V SK6812 LED Strips; Long life span 50,000+ hours;
2) Super bright 5070 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside a SMD5070-RGB LED;
4) SK6812 has 3 Wires input and output: Data, GND and Power+;
6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable;

LED Strip wiring diagram sk6812

LED Strip wiring diagram sk6812

Application:

> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting

Remark:

1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

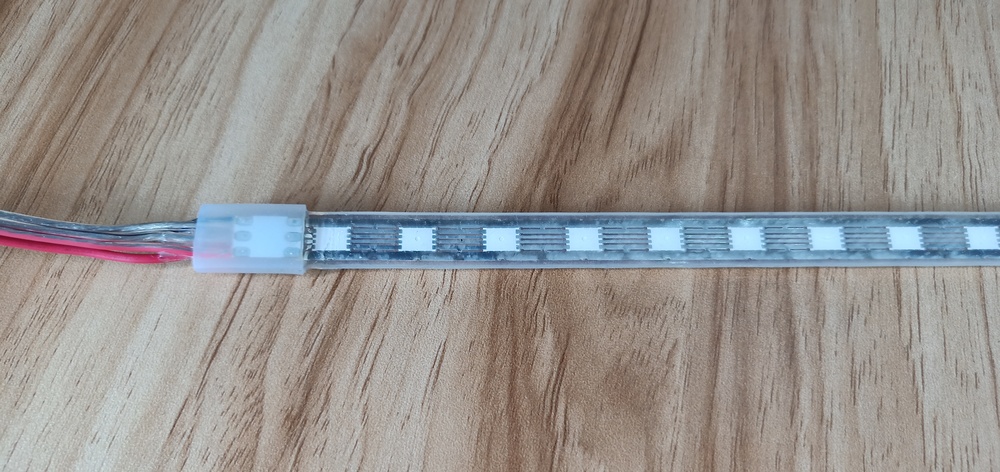

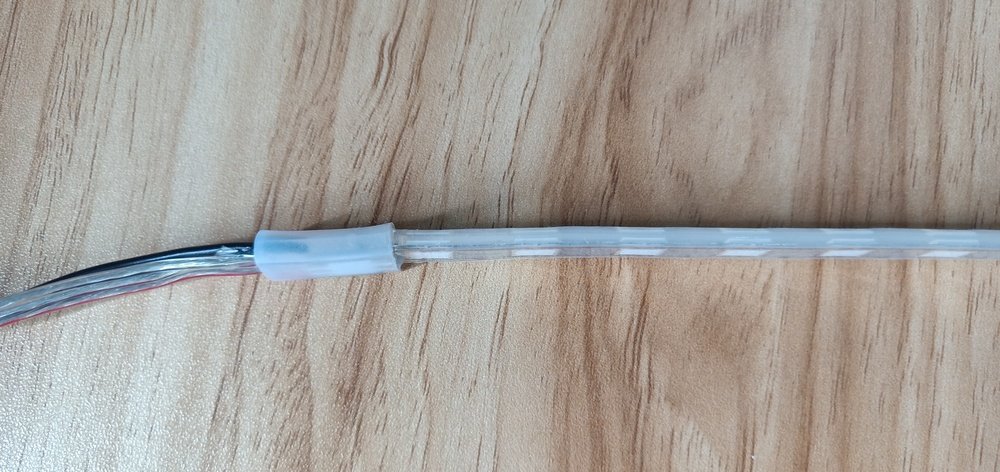

Photos

IP68 SK6812 5070 RGB Waterproof Digital LED Light
IP68 SK6812 5070 RGB Waterproof Digital LED Light
IP68 SK6812 5070 RGB Waterproof Digital LED Light
IP68 SK6812 5070 RGB Waterproof Digital LED Light
IP68 SK6812 5070 RGB Waterproof Digital LED Light
